0220-78546

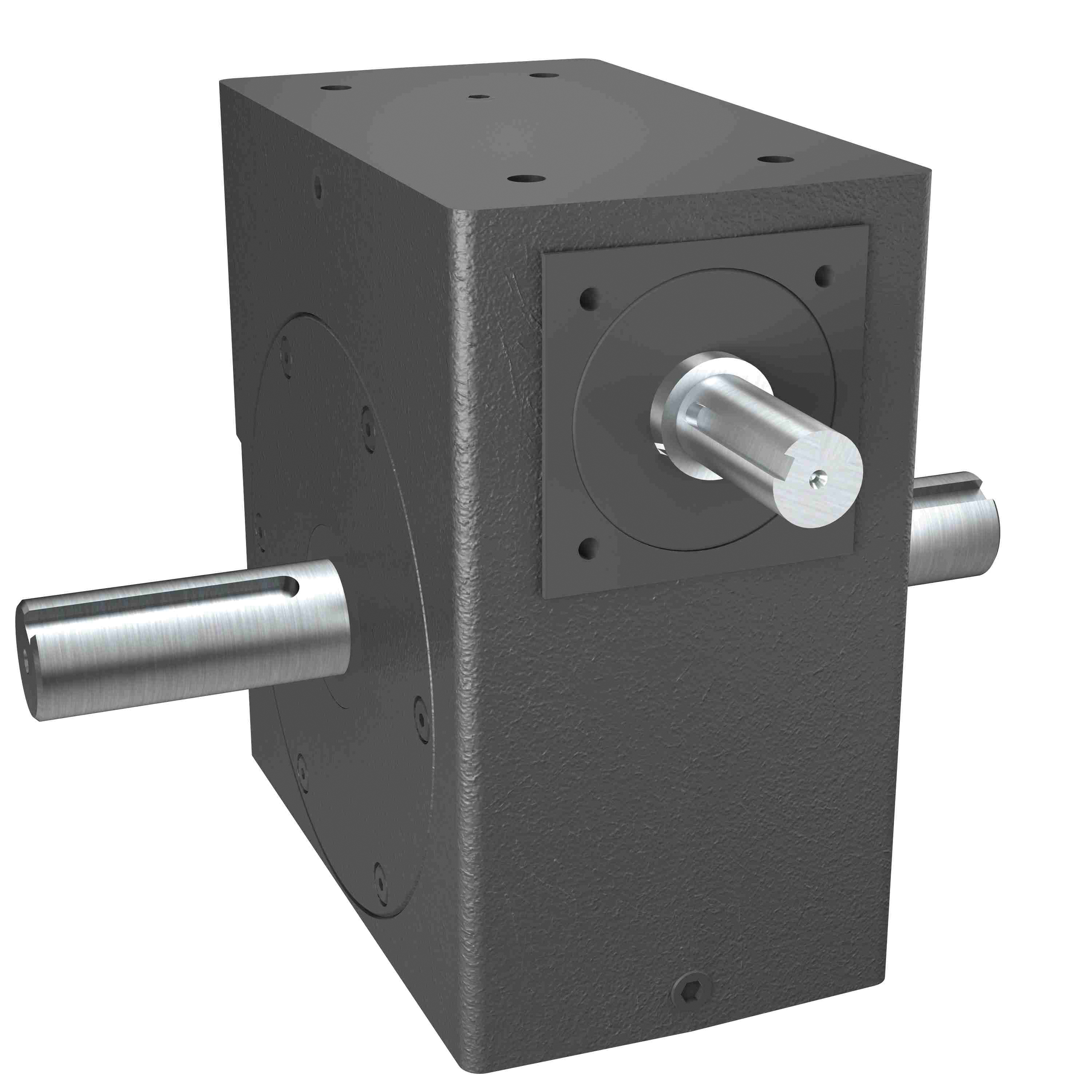

Hub City® PowerCubeX® 0220-78546 380 Right Angle Single Reduction Style A Worm Gear Reducer, Shaft Input, Shaft Output, 2.77 hp Input, 60:1 Gear, 29.2 rpm Maximum Output, 3967 in-lb Output Torque Rating
- CP#:
- Item#: 381 60/1 A WR
- Mfr#: 0220-78546
- UPC: 662798592954
- Modular design
- Universal mounting dimensions
- Increased thermal capacity and increased efficiency
- Alloy shafting
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 380, 60:1 Gear Ratio, 2.77 hp Input, Shaft Input, Shaft Output, 1 in Dia x 2.48 in L Input, 1.5 in Dia x 3.88 in L Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3967 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, 66.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 13.38 in W x 10.062 in H
SPECIFICATIONS
| Input Size | : | 1 in Dia x 2.48 in L |
| Material | : | Cast Iron |
| Output Size | : | 1.5 in Dia x 3.88 in L |
| Series | : | 380 |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 60:1 |
| Type | : | Right Angle Single Reduction Style A |
| Dimensions | : | 13.38 in W x 10.062 in H |
| Efficiency | : | 66.2 % |
| Keyway Size | : | 1/4 x 1/8 in Input, 3/8 x 3/16 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Conventional Oil |
| Centre Distance | : | 3-3/4 in |
| Horsepower | : | 2.77 hp Input |
| Output Maximum Speed | : | 29.2 rpm |
| Torque Rating | : | 3967 in-lb Output |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22008264_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_23033735_Manual.pdf -
