0220-59302

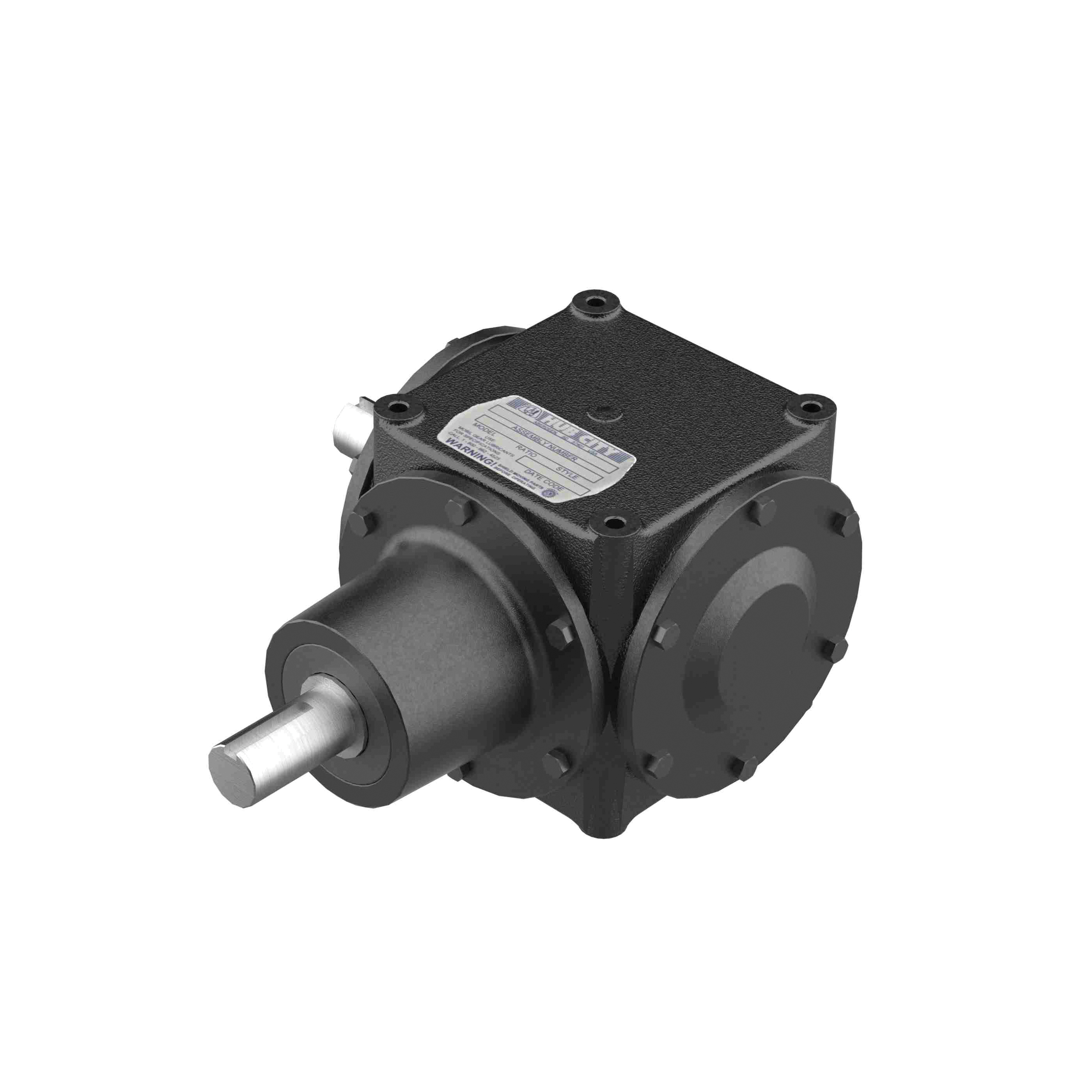

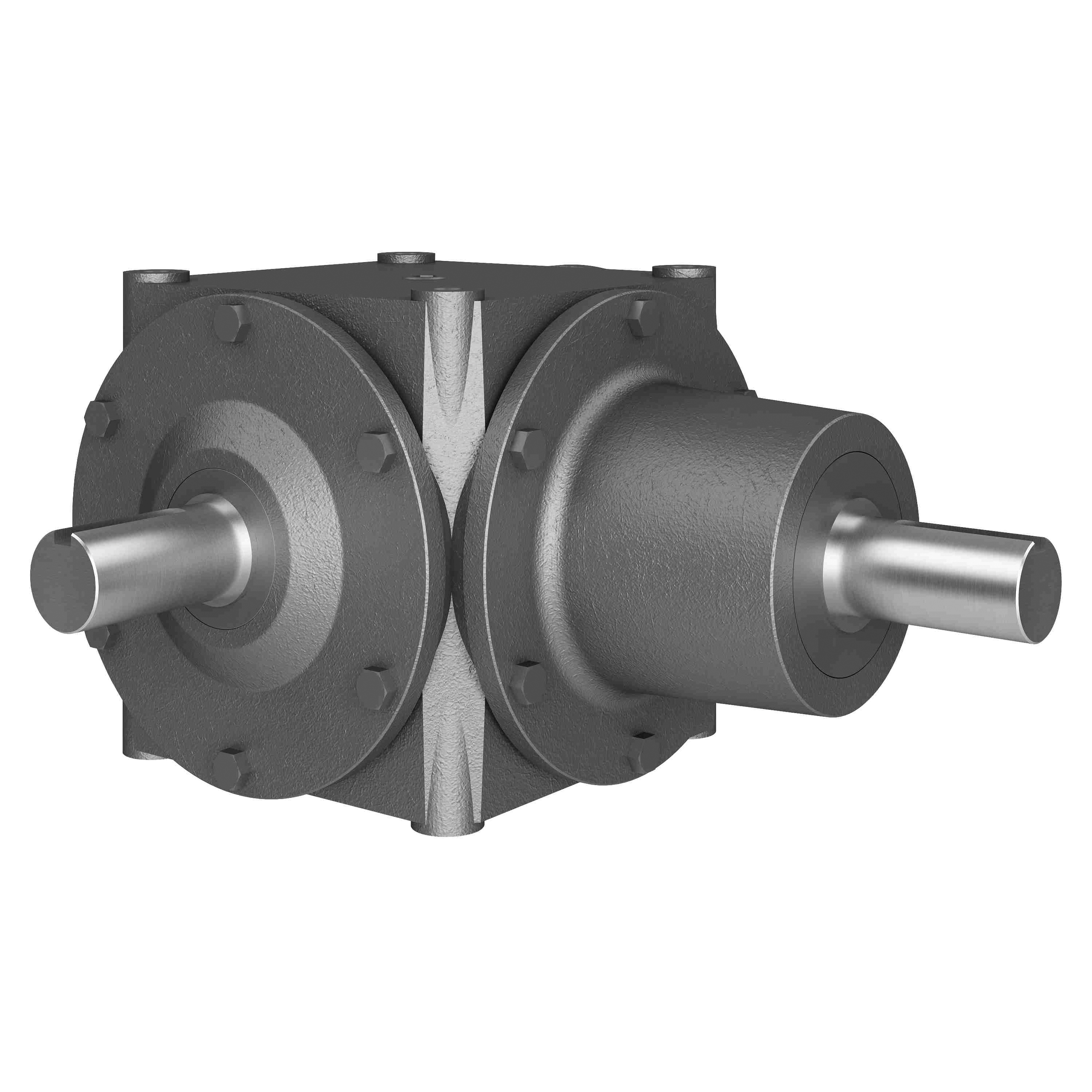

Hub City® 0220-59302 800 Right Angle Straight Single Reduction Style C F Bevel Gear Reducer, Shaft Input, Shaft Output, 56.2 hp, 1:1 Gear, 690 rpm Maximum Output, 5130 in-lb Torque Rating
- CP#:
- Item#: 0220-59302 MODEL 800-1:1 STYLE F
- Mfr#: 0220-59302
- UPC: 662798020457
- Rugged ductile iron housing
- Universal mounting dimensions
- Alloy shafting
- Heavy duty industrial seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style C F, Series: 800, 1:1 Gear Ratio, 56.2 hp, Shaft Input, Shaft Output, 1-1/2 in Dia x 3-1/16 in L Input, 1-1/2 in Dia x 3-3/32 in L Output, 690 rpm Output Maximum Speed, 690 rpm Input Maximum Speed, 5130 in-lb, 11-1/2 in Centre Distance, 3/8 x 3/16 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 15-21/32 in D x 8-3/16 in H
SPECIFICATIONS
| Series | : | 800 |
| Output Size | : | 1-1/2 in Dia x 3-3/32 in L |
| Input Size | : | 1-1/2 in Dia x 3-1/16 in L |
| Mounting Type | : | Four-Bolt Surface |
| Material | : | Ductile Iron |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 1:1 |
| Lubrication Type | : | Conventional Oil |
| Efficiency | : | 97.5 % |
| Dimensions | : | 15-21/32 in D x 8-3/16 in H |
| Input Maximum Speed | : | 690 rpm |
| Keyway Size | : | 3/8 x 3/16 in Input |
| Type | : | Right Angle Straight Single Reduction Style C F |
| Horsepower | : | 56.2 hp |
| Output Maximum Speed | : | 690 rpm |
| Torque Rating | : | 5130 in-lb |
