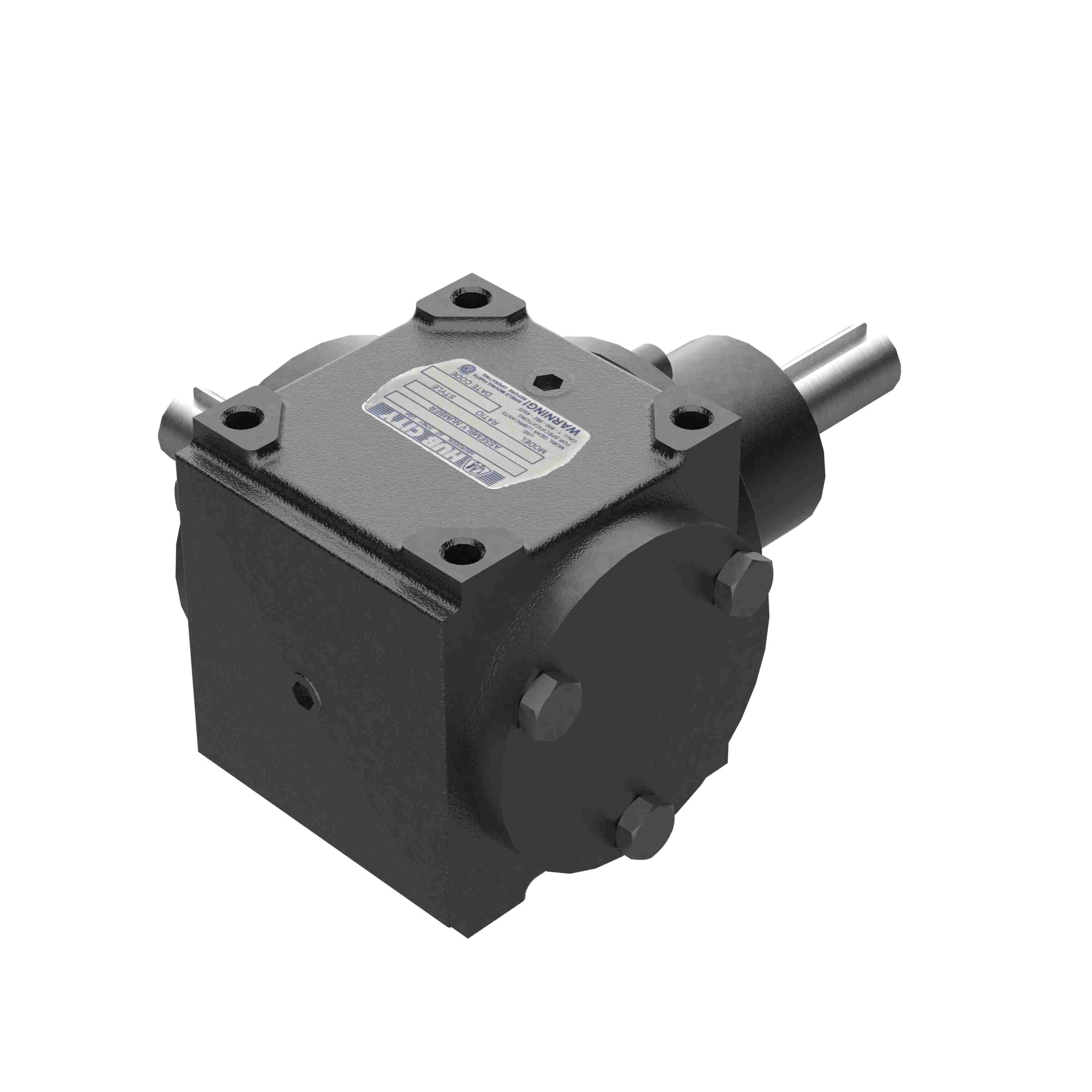

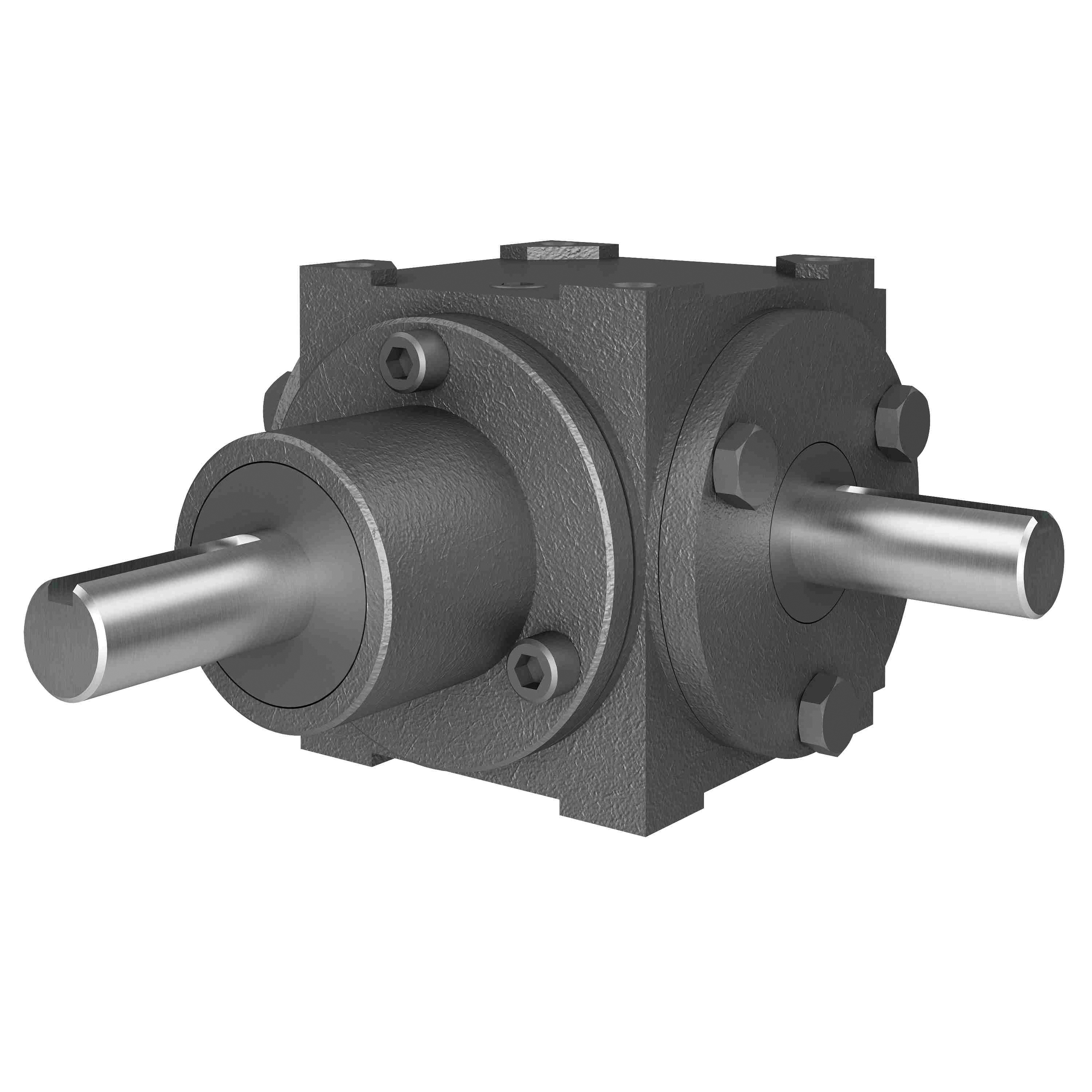

Hub City® 0220-21102 Right Angle Straight Single Reduction Style C F Bevel Gear Reducer, Shaft Input, Shaft Output, 2-1/4 hp, 1:1 Gear, 1750 rpm Maximum Output, 81 in-lb Torque Rating

  • Item#: M3 1/1 C,F ST
  • Mfr#: 0220-21102
  • UPC: 662798010847
  • Rugged cast iron housing
  • Universal mounting dimensions
  • Alloy shafting
  • Heavy duty industrial seals
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style C F, Series: M3, 1:1 Gear Ratio, 2-1/4 hp, Shaft Input, Shaft Output, 5/8 in Dia x 1-17/32 in L Input, 5/8 in Dia x 1-1/2 in L Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 81 in-lb, 4-9/16 in Centre Distance, 3/16 x 3/32 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 6-15/32 in W x 6-3/16 in D x 3-3/16 in H

SPECIFICATIONS

Centre Distance      :      4-9/16 in
Dimensions      :      6-15/32 in W x 6-3/16 in D x 3-3/16 in H
Efficiency      :      97.5 %
Input Maximum Speed      :      1750 rpm
Input Size      :      5/8 in Dia x 1-17/32 in L
Keyway Size      :      3/16 x 3/32 in Input
Lubrication Type      :      Conventional Oil
Material      :      Cast Iron
Mounting Type      :      Four-Bolt Surface
Output Size      :      5/8 in Dia x 1-1/2 in L
Series      :      M3
Type      :      Right Angle Straight Single Reduction Style C F
Input Type      :      Shaft
Output Type      :      Shaft
Horsepower      :      2-1/4 hp
Gear Ratio      :      1:1
Output Maximum Speed      :      1750 rpm
Torque Rating      :      81 in-lb

DOCUMENTS

  • pdf
    Manual
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22000101_Manual.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22021101_Catalog.pdf
