- Hub City® 0220-06407
0220-06407

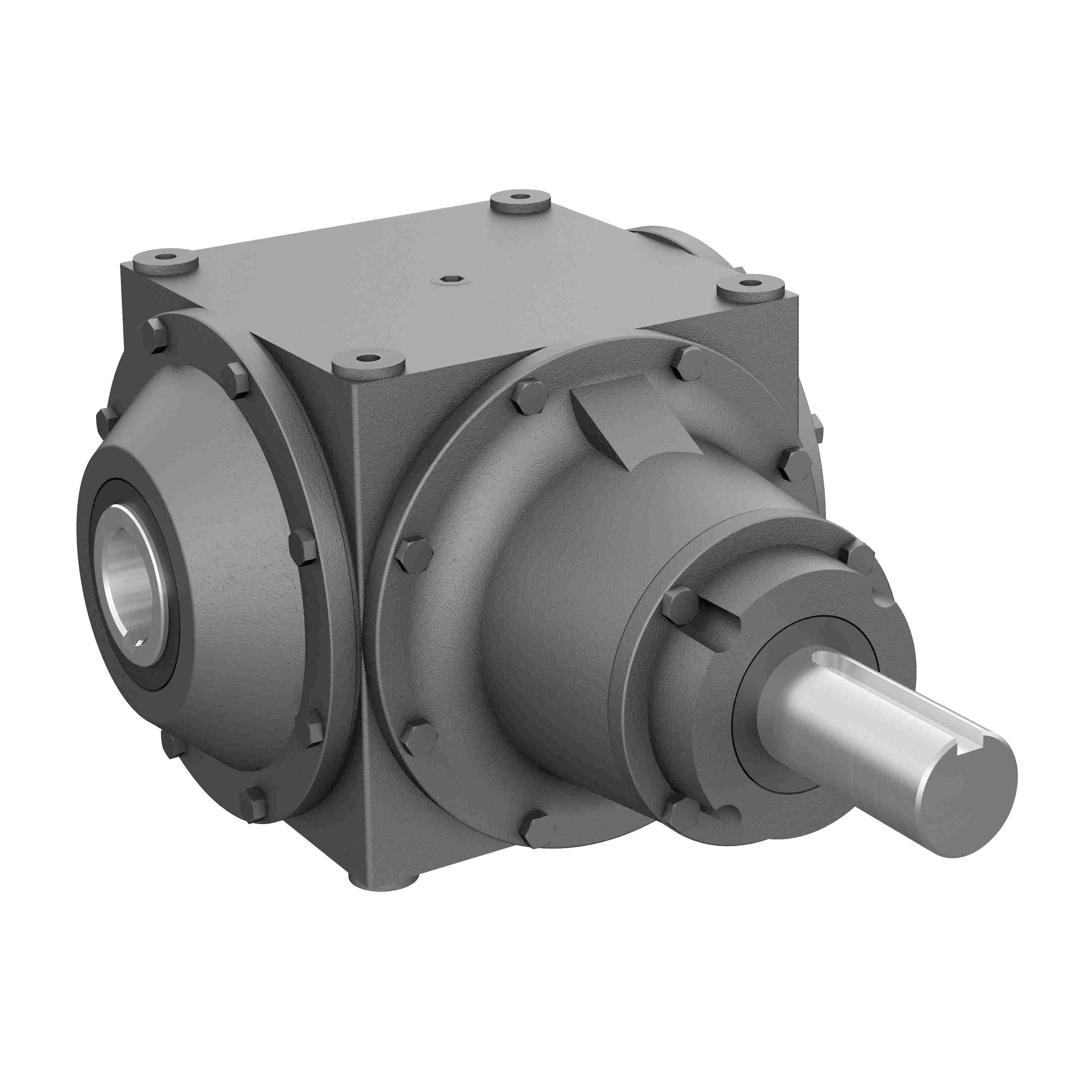

Hub City® 0220-06407 1050 Right Angle Spiral Single Reduction Style B Bevel Gear Reducer, Shaft Input, Hollow Bore Output, 251 hp, 1:1 Gear, 1750 rpm Maximum Output, 9039 in-lb Torque Rating
- CP#:
- Item#: 1050 1/1 B SP
- Mfr#: 0220-06407
- UPC: 662798010083
- Rugged ductile iron housing
- Universal mounting dimensions
- Alloy shafting
- Heavy duty industrial seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style B, Series: 1050, 1:1 Gear Ratio, 251 hp, Shaft Input, Hollow Bore Output, 2 in Dia x 4 in L Input, 2 in Dia Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9039 in-lb, 15 in Centre Distance, 1/2 x 1/4 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 13-3/4 in W x 19-3/4 in D x 9-1/2 in H
SPECIFICATIONS
| Input Size | : | 2 in Dia x 4 in L |
| Material | : | Ductile Iron |
| Series | : | 1050 |
| Output Size | : | 2 in Dia |
| Mounting Type | : | Four-Bolt Surface |
| Input Type | : | Shaft |
| Output Type | : | Hollow Bore |
| Gear Ratio | : | 1:1 |
| Centre Distance | : | 15 in |
| Keyway Size | : | 1/2 x 1/4 in Input/Output |
| Dimensions | : | 13-3/4 in W x 19-3/4 in D x 9-1/2 in H |
| Type | : | Right Angle Spiral Single Reduction Style B |
| Lubrication Type | : | Conventional Oil |
| Efficiency | : | 97.5 % |
| Input Maximum Speed | : | 1750 rpm |
| Horsepower | : | 251 hp |
| Output Maximum Speed | : | 1750 rpm |
| Torque Rating | : | 9039 in-lb |
