- Hub City® 0220-00849
0220-00849

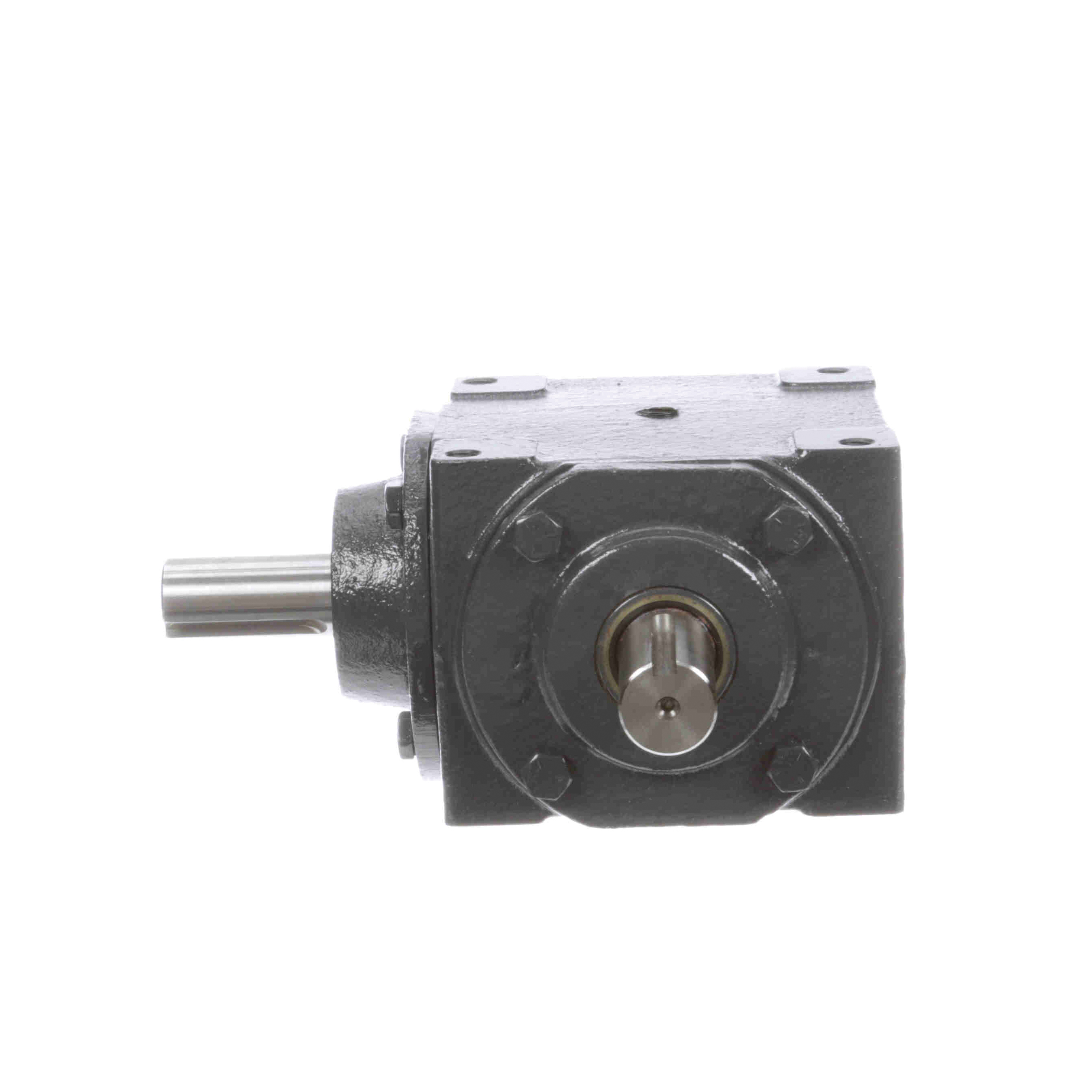

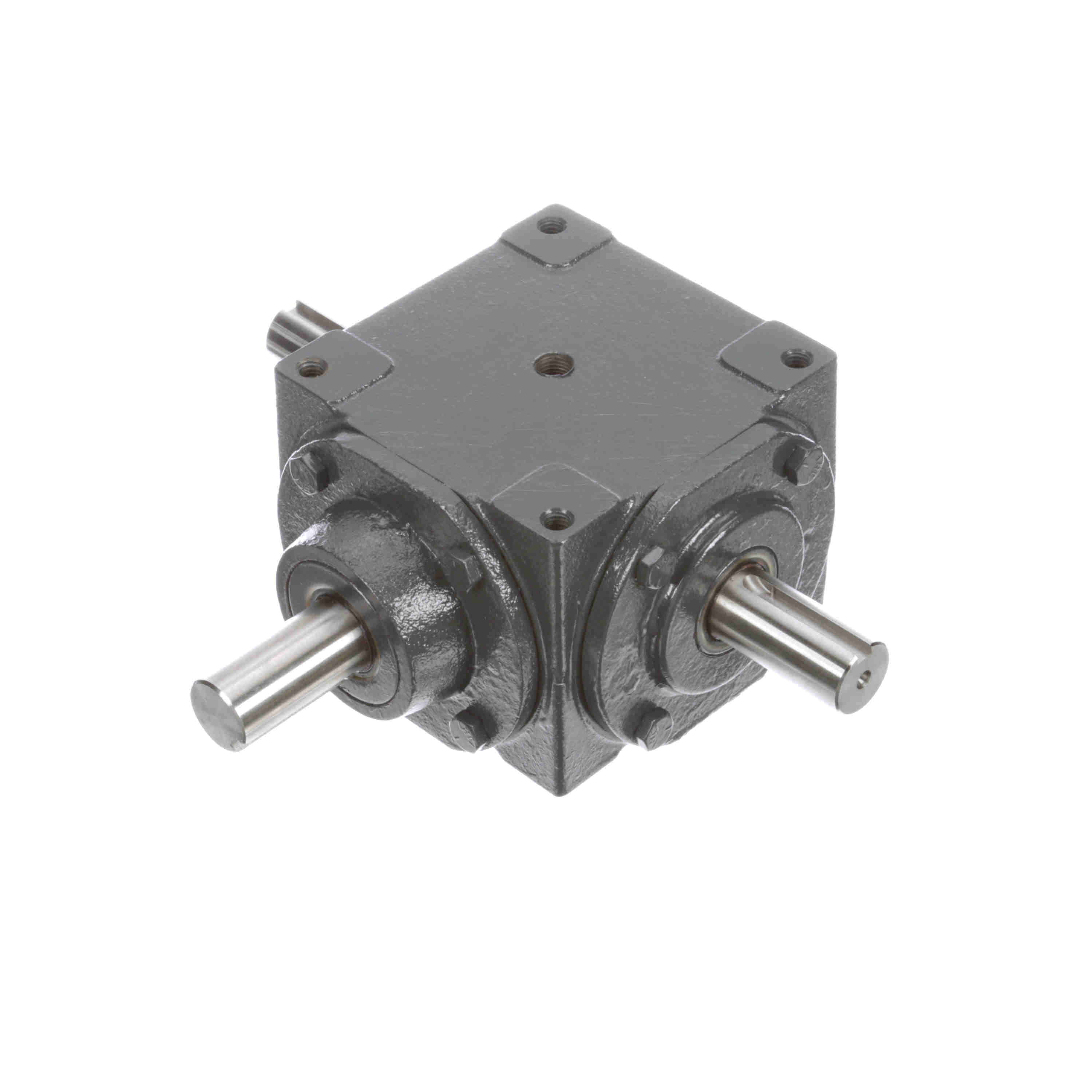

Hub City® 0220-00849 150 Right Angle Spiral Single Reduction Style A B Bevel Gear Reducer, Shaft Input, Shaft Output, 10-1/4 hp, 2:1 Gear, 875 rpm Maximum Output, 736 in-lb Torque Rating
- CP#:
- Item#: 0220-00849
- Mfr#: 0220-00849
- UPC: 662798004709
- Rugged cast iron housing
- Universal mounting dimensions
- Alloy shafting
- Heavy duty industrial seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style A B, Series: 150, 2:1 Gear Ratio, 10-1/4 hp, Shaft Input, Shaft Output, 1 in Dia x 2 in L Input, 1 in Dia Output, 875 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 736 in-lb, 5-23/32 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 10-3/16 in W x 8-9/32 in D x 4-1/8 in H
SPECIFICATIONS
| Input Size | : | 1 in Dia x 2 in L |
| Material | : | Cast Iron |
| Series | : | 150 |
| Output Size | : | 1 in Dia |
| Mounting Type | : | Four-Bolt Surface |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 2:1 |
| Centre Distance | : | 5-23/32 in |
| Keyway Size | : | 1/4 x 1/8 in Input |
| Dimensions | : | 10-3/16 in W x 8-9/32 in D x 4-1/8 in H |
| Type | : | Right Angle Spiral Single Reduction Style A B |
| Lubrication Type | : | Conventional Oil |
| Efficiency | : | 97.5 % |
| Input Maximum Speed | : | 1750 rpm |
| Horsepower | : | 10-1/4 hp |
| Output Maximum Speed | : | 875 rpm |
| Torque Rating | : | 736 in-lb |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22000101_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22000802_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation_Manual_Hub_City_Bevel_HCLI-BG-03.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4820/10075E_Hub_City_Engineering_Manual_No_8_Catalog_D18-19.pdf
