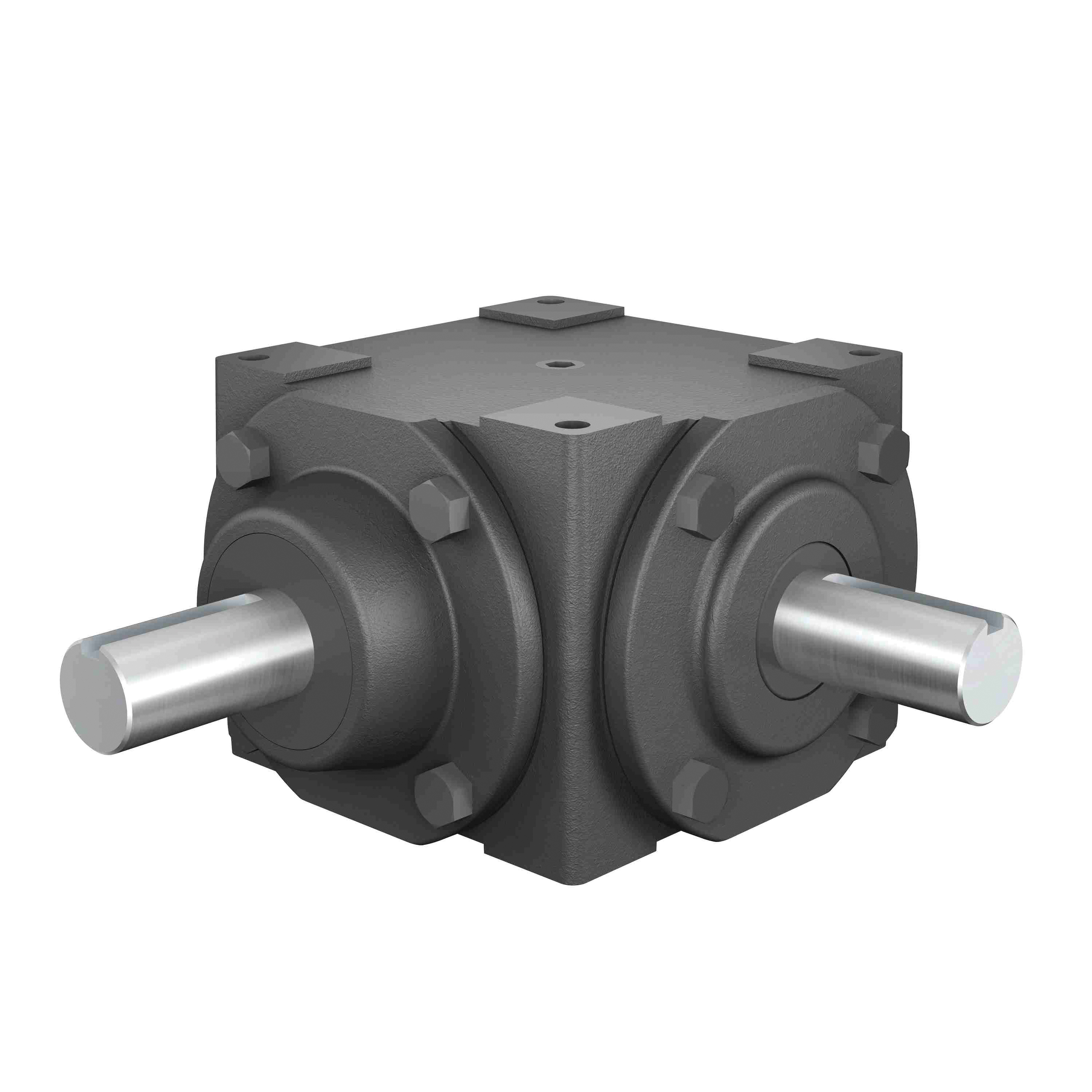

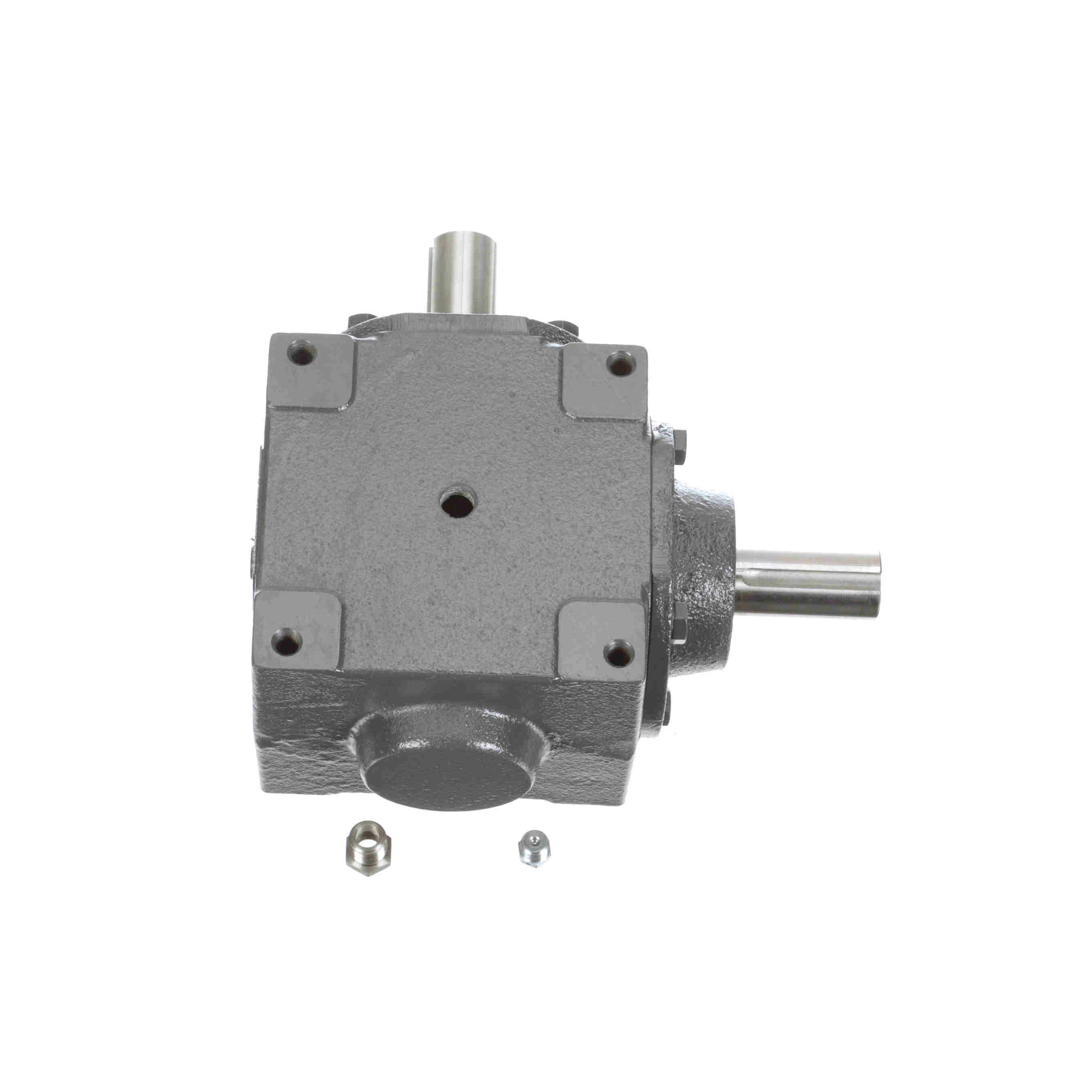

Hub City® 0220-00816 150 Right Angle Spiral Single Reduction Style C F Bevel Gear Reducer, Shaft Input, Shaft Output, 16 hp, 1:1 Gear, 1750 rpm Maximum Output, 580 in-lb Torque Rating
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style C F, Series: 150, 1:1 Gear Ratio, 16 hp, Shaft Input, Shaft Output, 1 in Dia x 2 in L Input, 1 in Dia Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 580 in-lb, 5-23/32 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 8-9/32 in D x 4-1/8 in H
Centre Distance | : | 5-23/32 in |
Dimensions | : | 8-9/32 in D x 4-1/8 in H |
Efficiency | : | 97.5 % |
Input Maximum Speed | : | 1750 rpm |
Input Size | : | 1 in Dia x 2 in L |
Keyway Size | : | 1/4 x 1/8 in Input |
Lubrication Type | : | Conventional Oil |
Material | : | Cast Iron |
Mounting Type | : | Four-Bolt Surface |
Output Size | : | 1 in Dia |
Series | : | 150 |
Type | : | Right Angle Spiral Single Reduction Style C F |
Input Type | : | Shaft |
Output Type | : | Shaft |
Horsepower | : | 16 hp |
Gear Ratio | : | 1:1 |
Output Maximum Speed | : | 1750 rpm |
Torque Rating | : | 580 in-lb |
