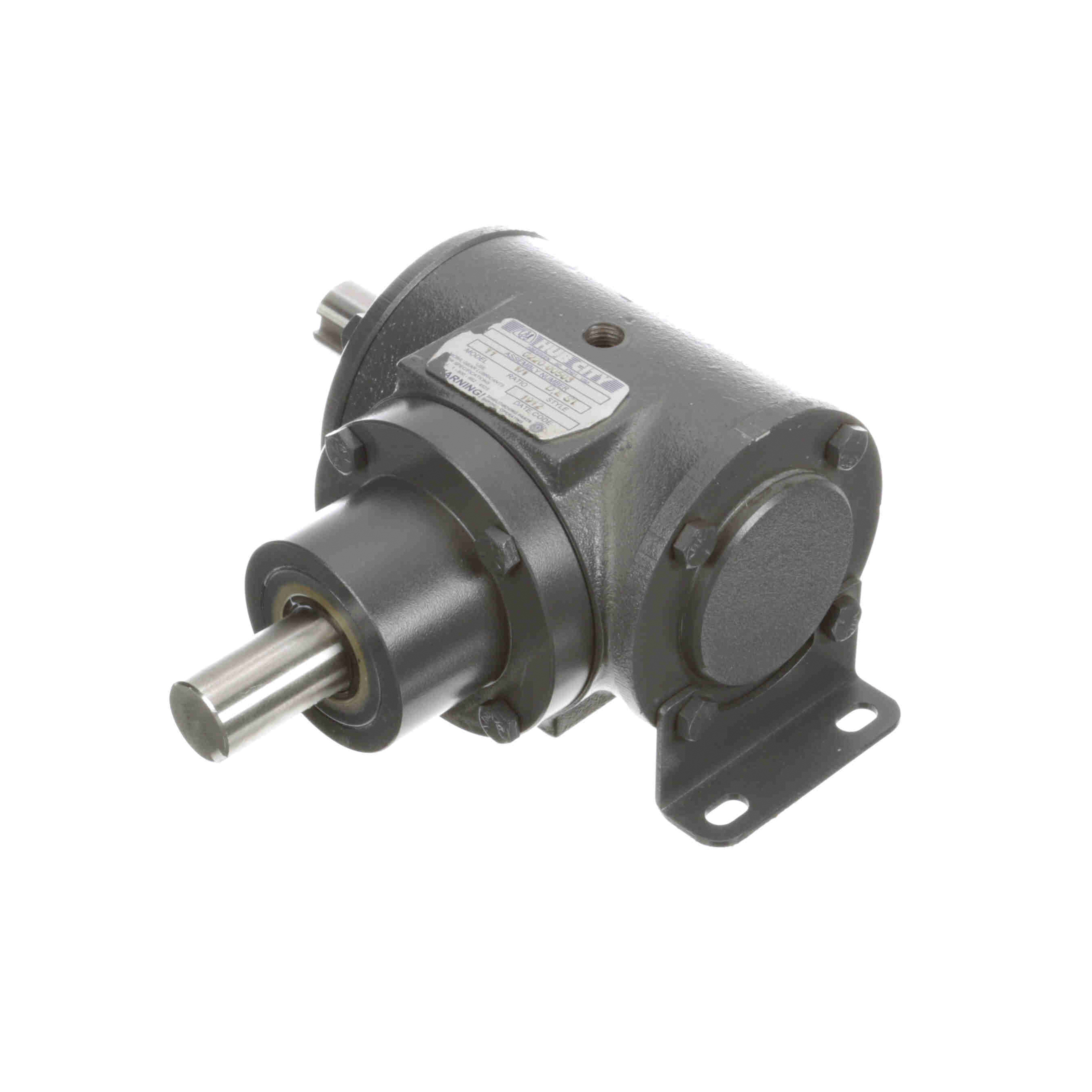

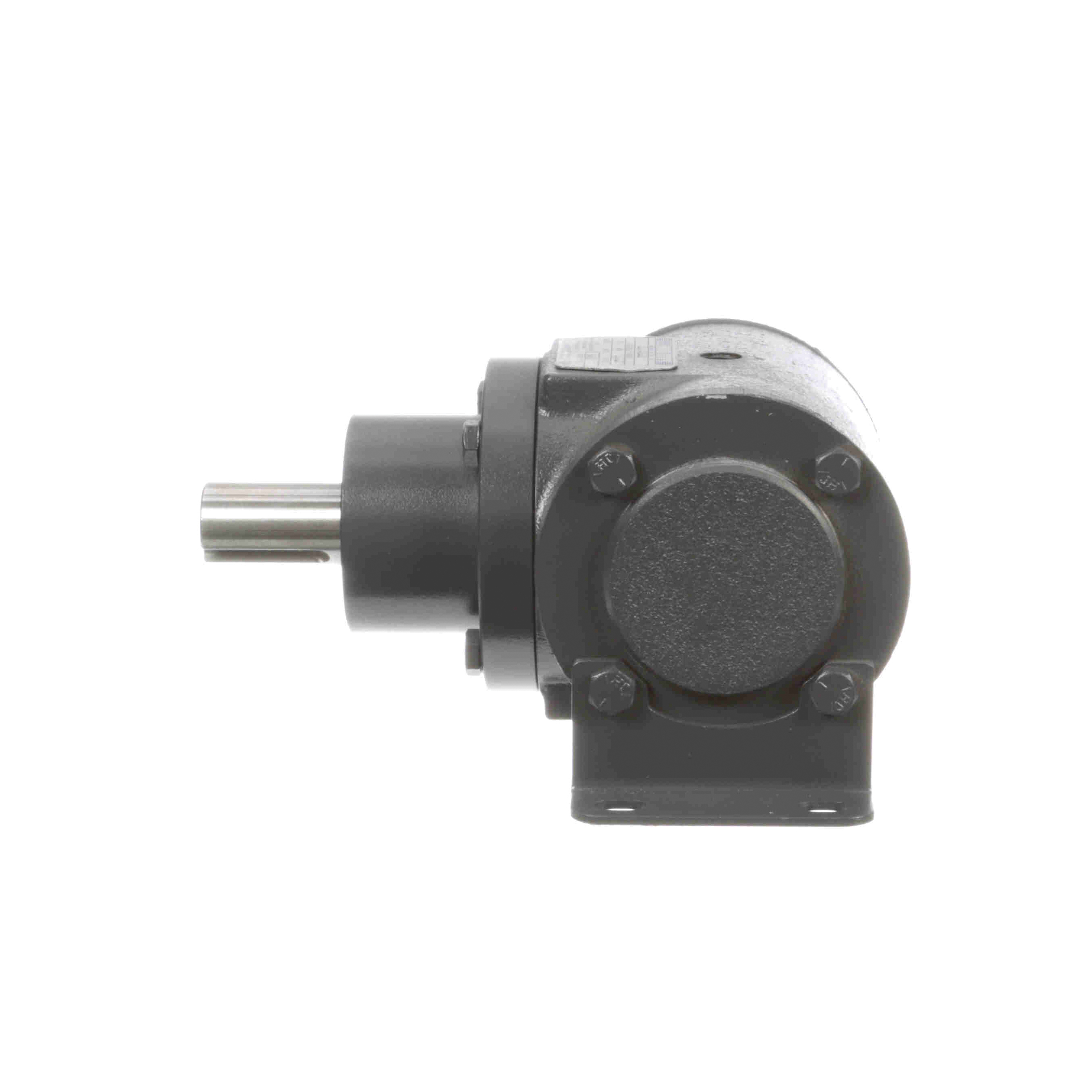

Hub City® 0220-00503 11 Series Right Angle Straight Single Reduction Style D E Bevel Gear Reducer, Shaft Input, Shaft Output, 12 hp, 1:1 Gear, 1150 rpm Maximum Output, 660 in-lb Torque Rating
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style D E, Series: 11 Series, 1:1 Gear Ratio, 12 hp, Shaft Input, Shaft Output, 1 in Dia x 1-3/4 in L Input, 1 in Dia Output, 1150 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 660 in-lb, 6-1/8 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Surface Mount, Cast Iron, 8-3/16 in D x 4-19/32 in H
Centre Distance | : | 6-1/8 in |
Dimensions | : | 8-3/16 in D x 4-19/32 in H |
Efficiency | : | 97.5 % |
Input Maximum Speed | : | 1150 rpm |
Input Size | : | 1 in Dia x 1-3/4 in L |
Keyway Size | : | 1/4 x 1/8 in Input |
Lubrication Type | : | Conventional Oil |
Material | : | Cast Iron |
Mounting Type | : | Surface |
Output Size | : | 1 in Dia |
Series | : | 11 Series |
Type | : | Right Angle Straight Single Reduction Style D E |
Input Type | : | Shaft |
Output Type | : | Shaft |
Horsepower | : | 12 hp |
Gear Ratio | : | 1:1 |
Output Maximum Speed | : | 1150 rpm |
Torque Rating | : | 660 in-lb |
