REP5M6FS428

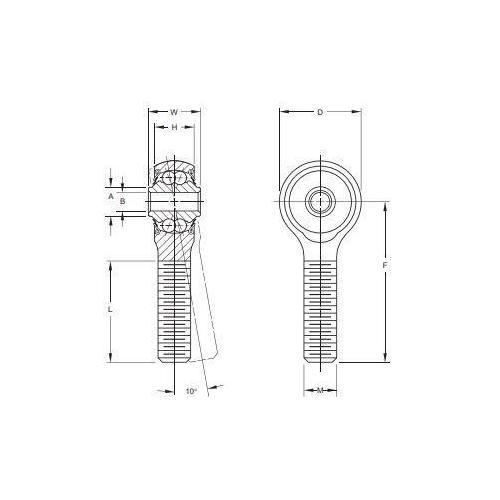

Heim® REP5M6FS428 REP-M Male Rod End Precision Self-Aligning Airframe Bearing, Ball Bearing, 5/16 in Dia Bore, 1-1/4 in OD, 0.87 in W, 2920 lb Load
- CP#:
- Item#: REP5M6
- Mfr#: REP5M6FS428
- UPC: 637400589448
- 10 deg permissible misalignment in either direction
- Exposed surfaces except bore, caps and seals are cadmium plated
- Outer shank 90000 psi min tensile strength
- Prelubricated for life
- This bearing is not intended for use in any aerospace application
- Contact seals
- Aeroshell 33® type 1 grease
- 3/8-24 x 1.563 in L UNJF-3A right handed thread
- 2920 lb static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Heim® Precision Self-Aligning Airframe Bearing, Male Rod End, Series: REP-M, Ball Bearing, 5/16 in Bore Dia, 2 Rows, 1-1/4 in Outside Dia, 0.87 in W, 2920 lb, 52100 Steel Bearing, PTFE Seal, 200 deg F, Cadmium
SPECIFICATIONS
| Bearing Type | : | Ball |
| Series | : | REP-M |
| Bearing Material | : | 52100 Steel |
| Finish | : | Cadmium |
| Load Capacity | : | 2920 lb |
| Number of Rows | : | 2 |
| Outside Diameter | : | 1-1/4 in |
| Seal Material | : | PTFE |
| Width | : | 0.87 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/448/RBC_10NBC1620YZP_Catalog.pdf
