- Grove Gear® W5250119.00
W5250119.00

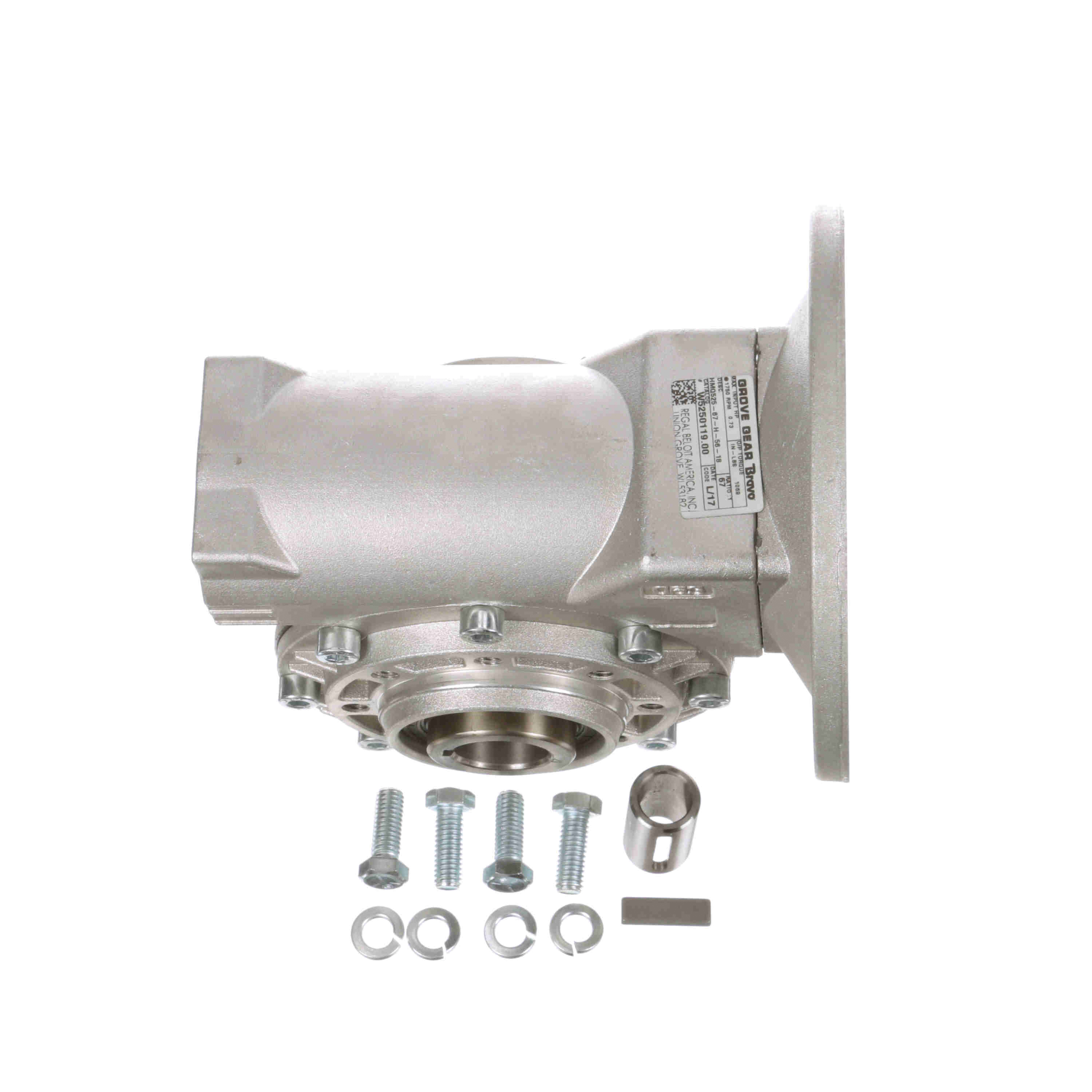

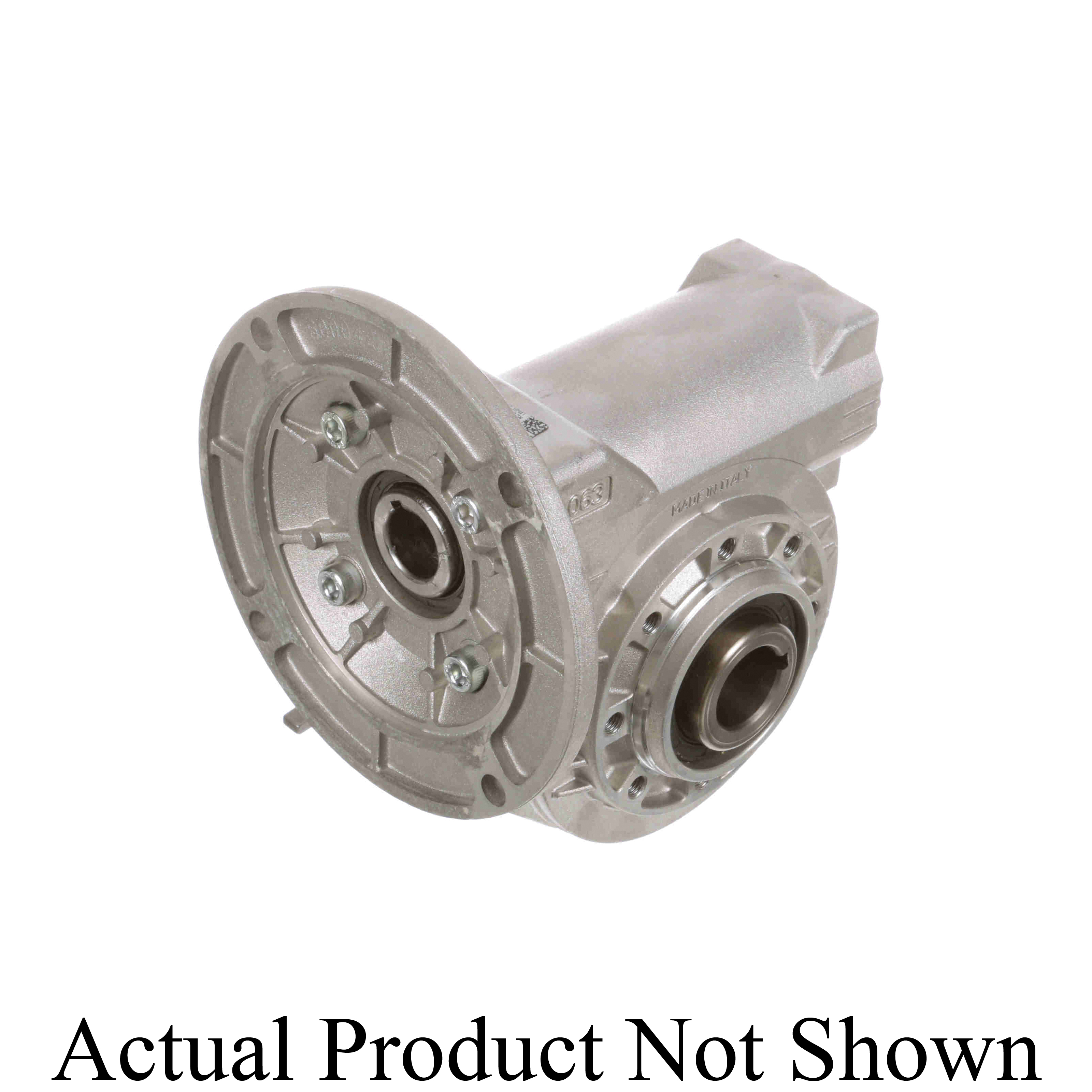

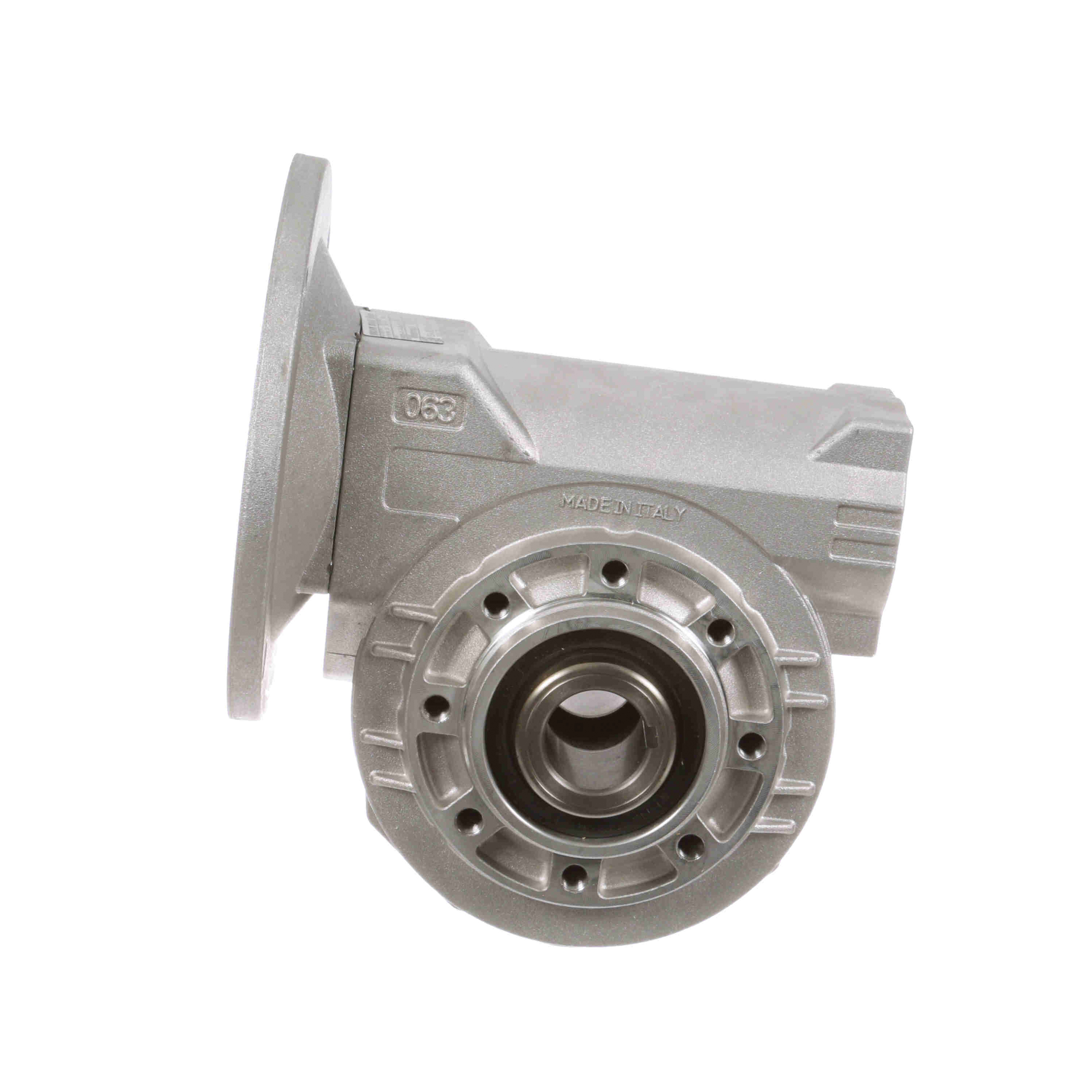

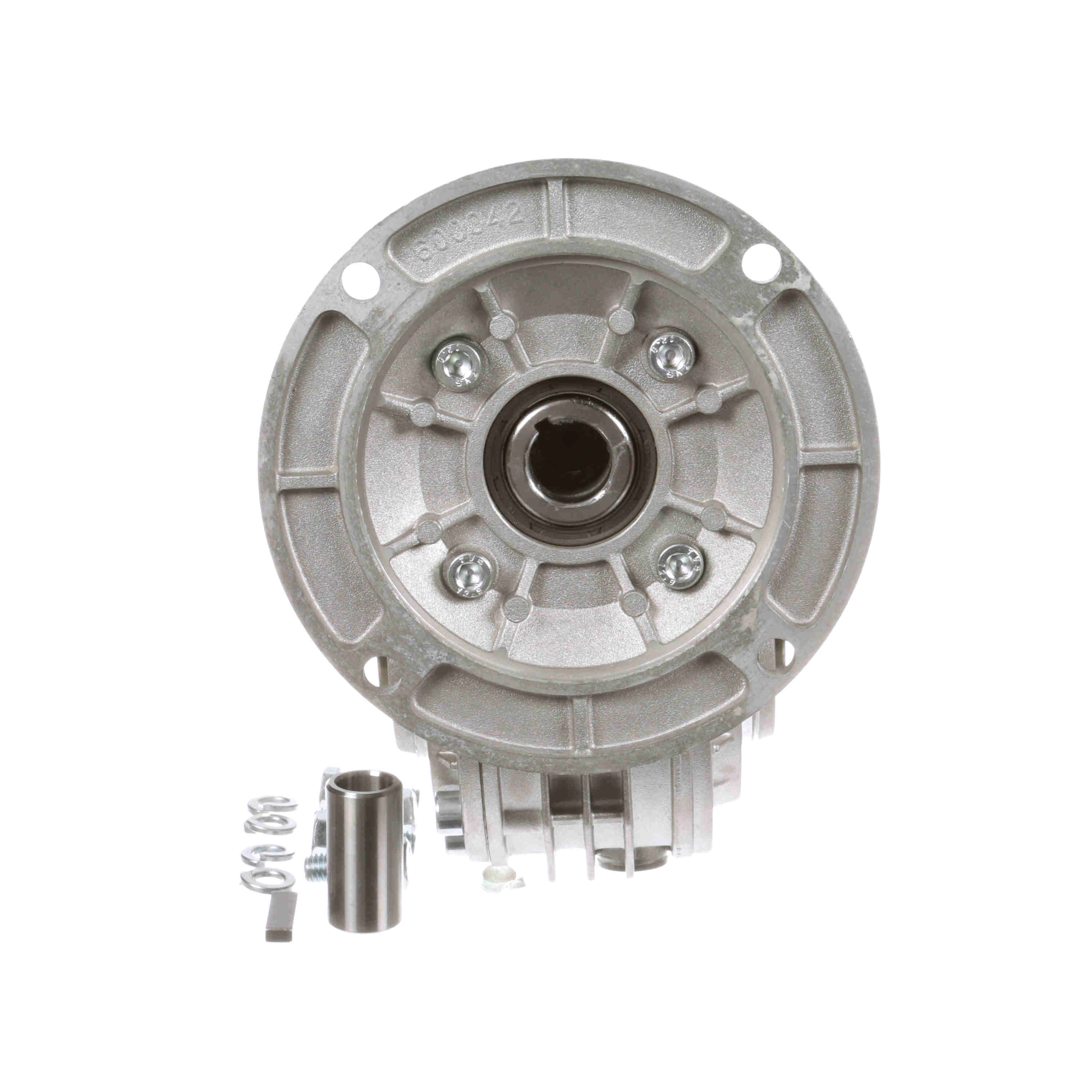

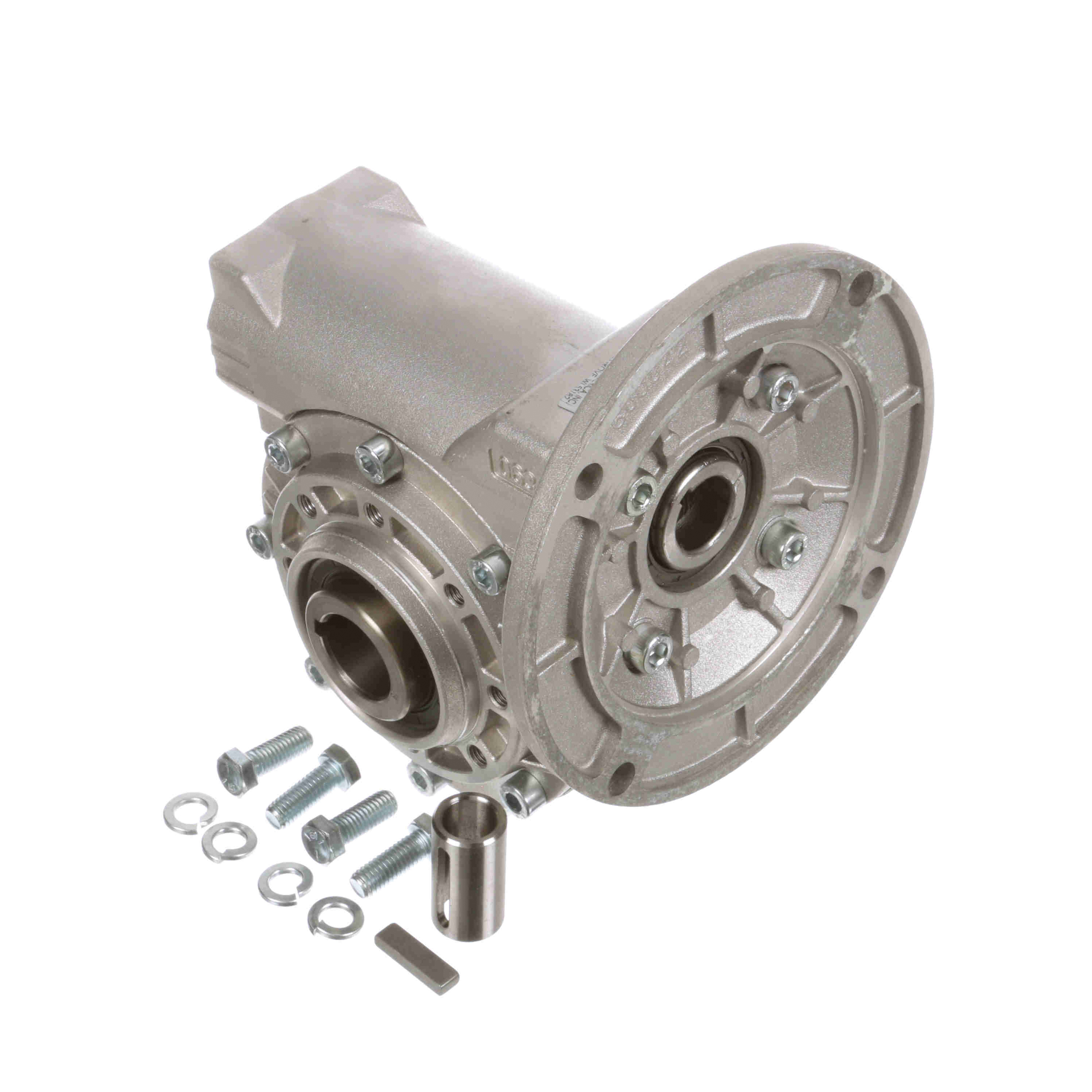

Grove Gear® W5250119.00 Bravo™ 525 Compact Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.73 hp Input, 0.44 hp Output, 67:1 Gear, 26.1 rpm Maximum Output, 1069 in-lb Output Torque Rating
- CP#:
- Item#: HMQ525-67-H-56-18
- Mfr#: W5250119.00
- Single piece aluminum alloy housing
- Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant - USDA class H1 approved
- Vent-free design eliminates the potential for leaks
- Premium, high temperature nitrile output seals
- Oversized high speed bearings, positively retained for frequent reversing and start/stop cycles
- Bronze alloy worm gear is centrifugally cast onto an iron hub for maximum strength, lubricity and superior life
- Single piece alloy steel input shaft and worm shaft
- Mounting dimensions are interchangeable with many worldwide brands
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Bravo™ aluminum worm gear reducers are ideal for manufacturers of commercial and industrial machinery designing compact and lightweight products. These unique reducers weigh up to two thirds less and are one third smaller than comparable cast iron designs. Bravo™ gear reducers are available with IEC motorized inputs and metric outputs, making them an excellent replacement of popular worldwide brands.
Grove Gear® Worm Gear Reducer, Compact Right Angle Single Reduction, Series: Bravo™ 525, 67:1 Gear Ratio, 0.73 hp Input, 0.44 hp Output, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1-1/8 in Dia Output, 26.1 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1069 in-lb Output, 2.48 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 2 in Output Keyway, PAG Synthetic Oil Lubrication, Shaft Mount, Aluminum
SPECIFICATIONS
| Input Size | : | 5/8 in Dia |
| Material | : | Aluminum |
| Mounting Type | : | Shaft |
| Output Size | : | 1-1/8 in Dia |
| Series | : | Bravo™ 525 |
| Input Type | : | C-Face Quill |
| Output Type | : | Hollow Bore |
| Gear Ratio | : | 67:1 |
| Type | : | Compact Right Angle Single Reduction |
| Keyway Size | : | 3/16 x 3/32 in Input, 1/4 x 2 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | PAG Synthetic Oil |
| Horsepower | : | 0.73 hp Input, 0.44 hp Output |
| Output Maximum Speed | : | 26.1 rpm |
| Torque Rating | : | 1069 in-lb Output |
