- Grove Gear® S243000800
S243000800

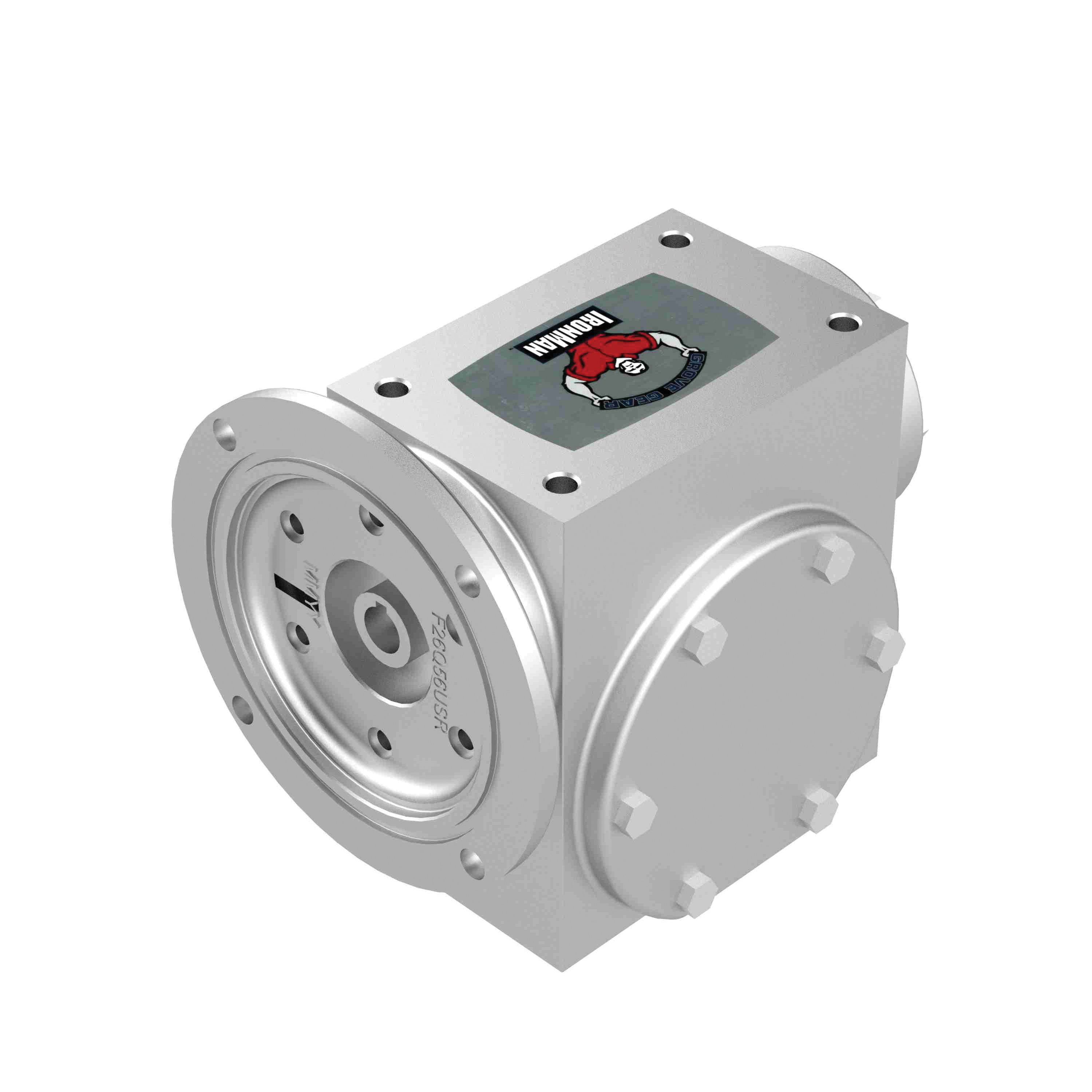

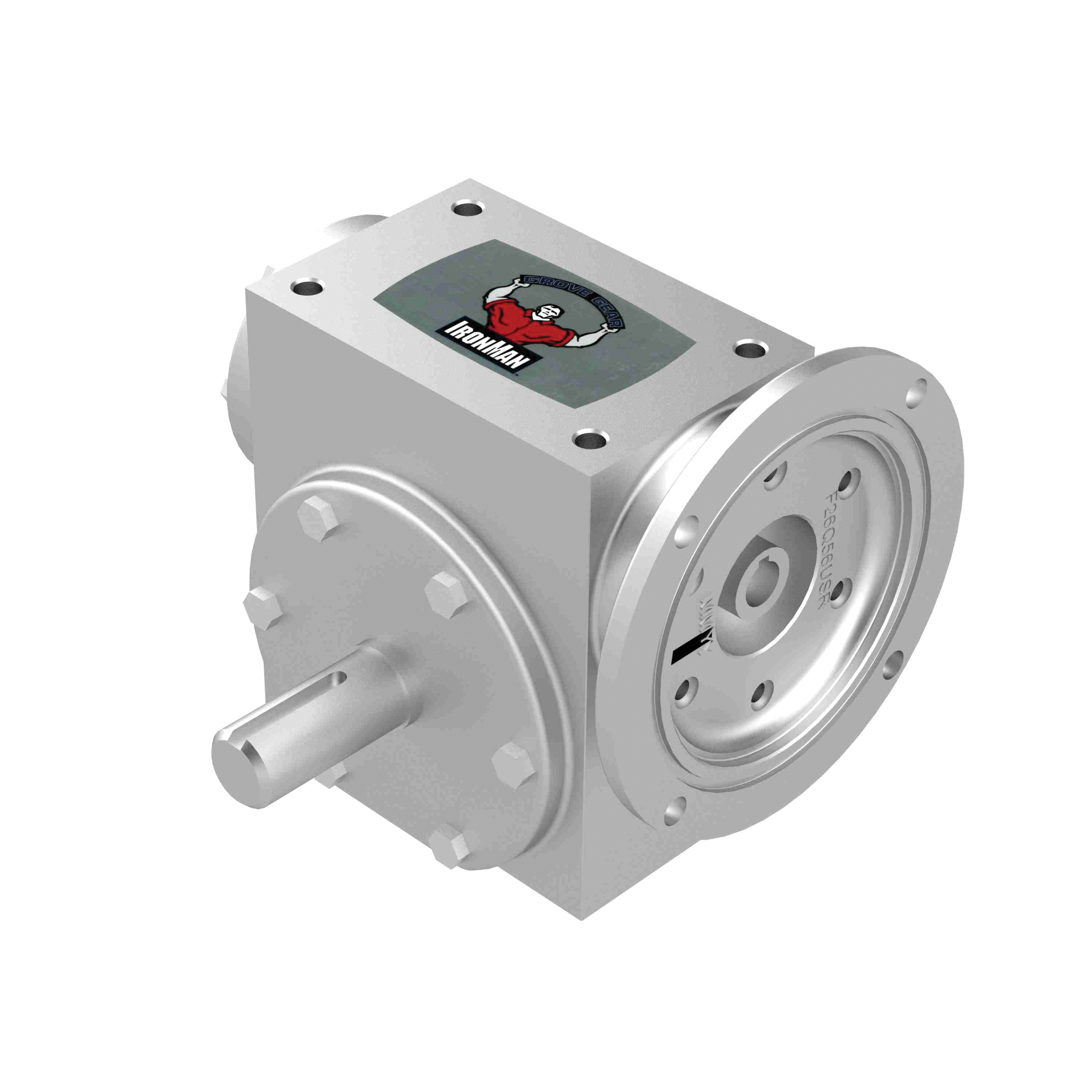

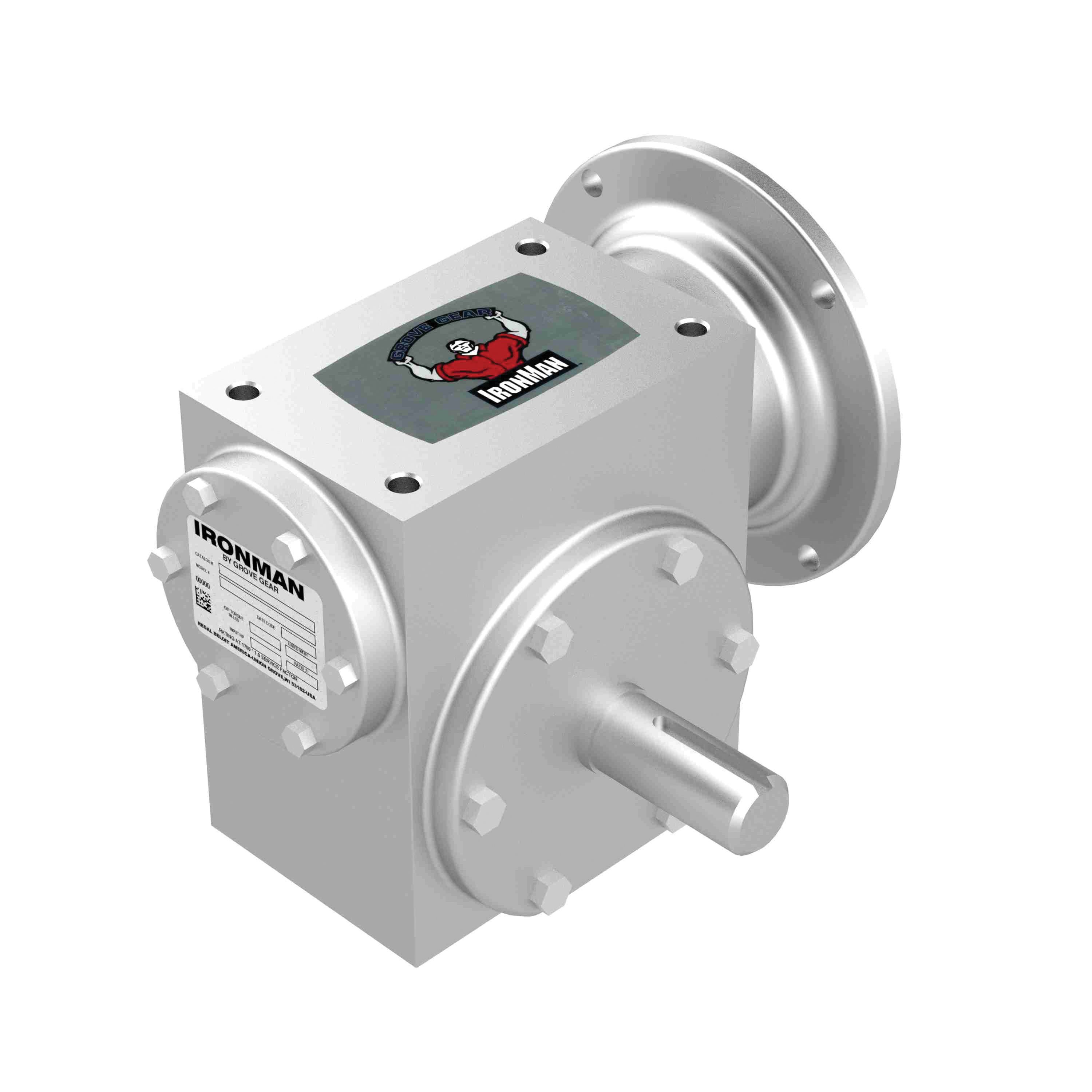

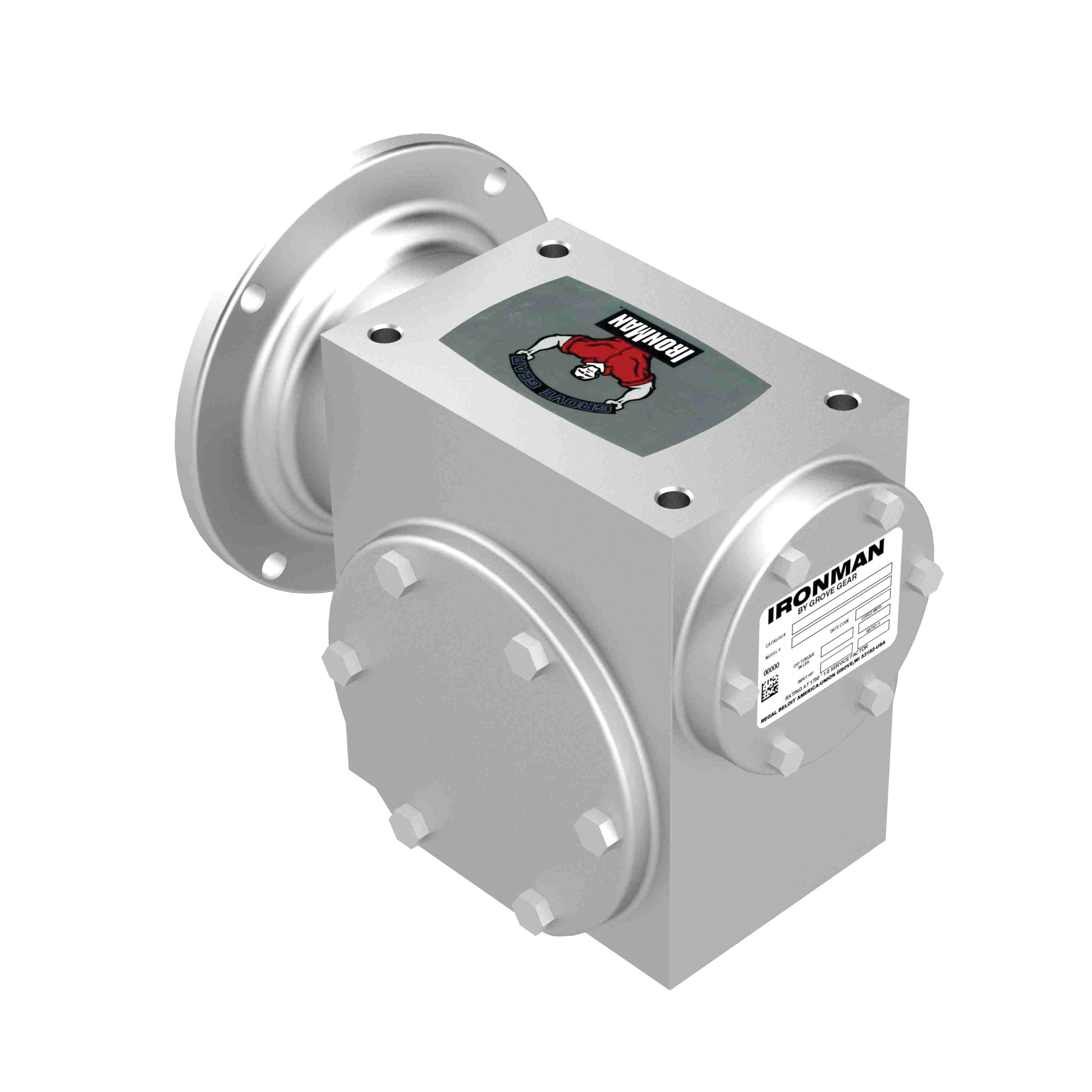

Grove Gear® Washguard® S243000800 Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.342 hp Input, 0.994 hp Output, 40:1 Gear, 43.8 rpm Maximum Output, 1433 in-lb Output Torque Rating
- CP#:
- Item#: SS-BMQ824-40-L-56
- Mfr#: S243000800
- 316 stainless steel housing and covers to withstand extreme environments
- Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant - USDA class H1 approved
- Vent-free "sealed for life" design with Enviroseal technology
- FKM double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals
- O-ring on face of input flange provides a positive seal against moisture intrusion
- 303 stainless steel output shaft or sleeve
- Worms are cut, heat treated, ground and polished to provide efficient, quiet operation
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product
- Ultimate application flexibility with all angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
- Mounting dimensions are interchangeable with most industry standard reducers
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Premium Washguard® all stainless reducers offer superior corrosion protection. our stainless steel housing, shaft, covers and external hardware offer an exceptionally long life. each reducer comes with USDA H1 synthetic oil, eliminating the need for oil changes. our premium stainless gear reducers are supplied with 316 grade stainless steel housing and covers. these premium reducers offer superior corrosion protection and can withstand the harshest conditions. available in worm gear reducers, ratio multipliers, helical concentric and helical bevel reducers.
Grove Gear® Washguard® Worm Gear Reducer, Right Angle Single Reduction, Series: SS Series, 40:1 Gear Ratio, 1.342 hp Input, 0.994 hp Output, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1-1/8 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1433 in-lb Output, 2.38 in Centre Distance, 1/4 x 1-3/4 in Output Keyway, PAG Synthetic Oil Lubrication, Base Mount, 316 Stainless Steel
SPECIFICATIONS
| Input Size | : | 5/8 in Dia |
| Material | : | 316 Stainless Steel |
| Mounting Type | : | Base |
| Output Size | : | 1-1/8 in Dia |
| Series | : | SS Series |
| Input Type | : | C-Face Quill |
| Output Type | : | Shaft |
| Gear Ratio | : | 40:1 |
| Type | : | Right Angle Single Reduction |
| Keyway Size | : | 1/4 x 1-3/4 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | PAG Synthetic Oil |
| Horsepower | : | 1.342 hp Input, 0.994 hp Output |
| Output Maximum Speed | : | 43.8 rpm |
| Torque Rating | : | 1433 in-lb Output |
