NH8300190.00

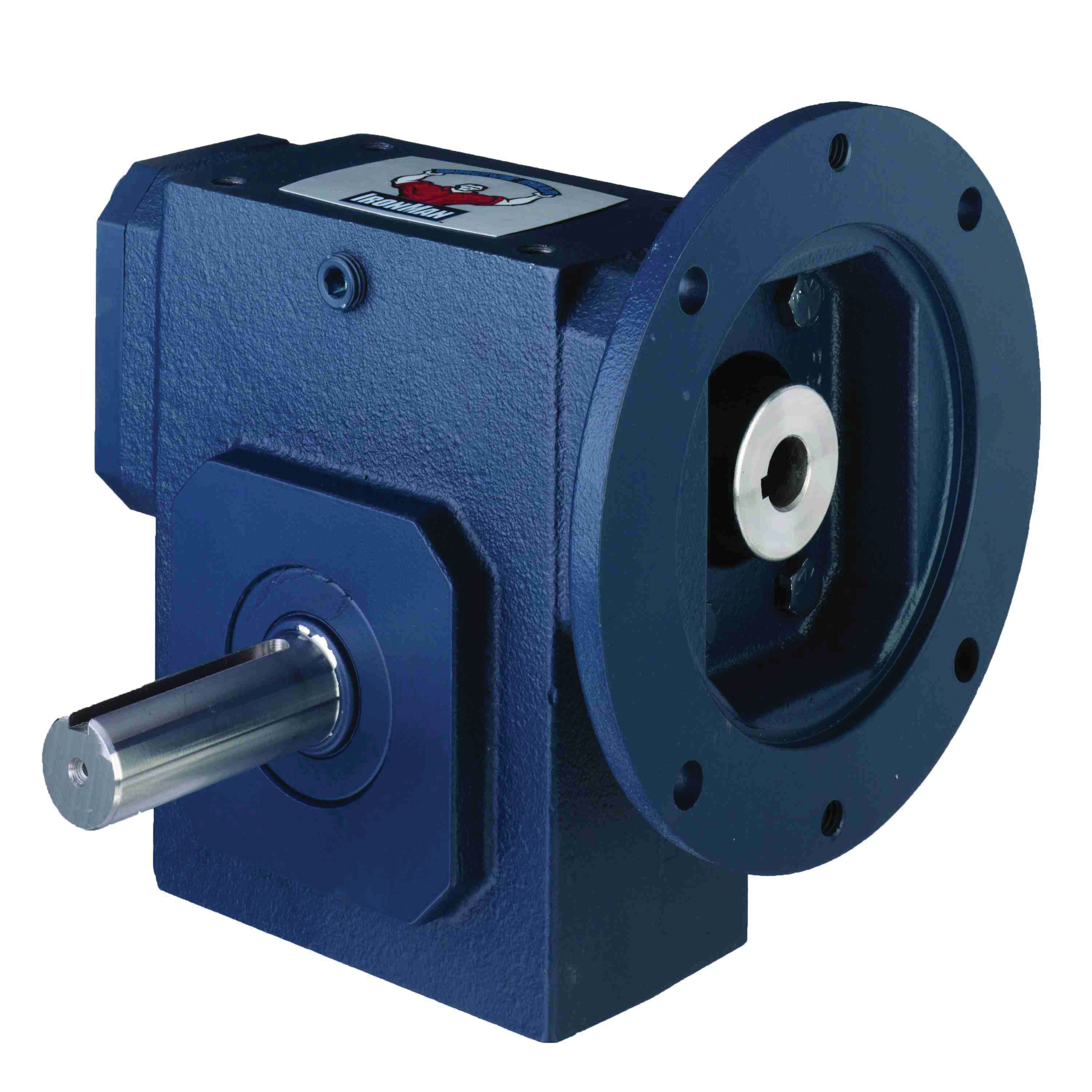

Grove Gear® IRONMAN® NH8300190.00 Narrow Housing Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.637 hp Input, 1.117 hp Output, 60:1 Gear, 29 rpm Maximum Output, 2413 in-lb Output Torque Rating
- CP#:
- Item#: NH-BMQ830-60-L-56
- Mfr#: NH8300190.00
- UPC: 690310072769
- Rugged cast iron housing, covers and flanges provide superior strength and rigidity
- Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant
- Large oil capacity provides positive splash lubrication and superior cooling capability
- FKM double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals
- O-rings on all bearing covers, eliminating gaskets, sealants and leaks
- Oversized high speed bearings, positively retained for frequent reversing and start/stop cycles
- Tapered roller bearings on output shaft for high overhung and thrust load capacities
- The unique quill seal guard protects the input seal from damage during motor installation
- Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product
- Ultimate application flexibility with all angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
- Designed with industry leading premium features as standard
- Compact housing design to fit where other reducer brands cannot
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The 800 series Grove Gear® IRONMAN® gear reducer is a true heavy duty workhorse that handles the environmental assaults, shock loading, frequent reversing and continuous duty cycles typical in many industrial applications. Designed to be the premium worm reducer in the industry, IRONMAN® reducers offer top quality features.
Grove Gear® IRONMAN® Worm Gear Reducer, Narrow Housing Right Angle Single Reduction, Series: NH Series, 60:1 Gear Ratio, 1.637 hp Input, 1.117 hp Output, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.25 in Dia x 3.56 in L Output, 29 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2413 in-lb Output, 3 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1-3/4 in Output Keyway, PAG Synthetic Oil Lubrication, Base Mount, Cast Iron
SPECIFICATIONS
| Input Size | : | 5/8 in Dia |
| Material | : | Cast Iron |
| Mounting Type | : | Base |
| Output Size | : | 1.25 in Dia x 3.56 in L |
| Series | : | NH Series |
| Input Type | : | C-Face Quill |
| Output Type | : | Shaft |
| Gear Ratio | : | 60:1 |
| Type | : | Narrow Housing Right Angle Single Reduction |
| Keyway Size | : | 3/16 x 3/32 in Input, 1/4 x 1-3/4 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | PAG Synthetic Oil |
| Centre Distance | : | 3 in |
| Horsepower | : | 1.637 hp Input, 1.117 hp Output |
| Output Maximum Speed | : | 29 rpm |
| Torque Rating | : | 2413 in-lb Output |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Grove_Gear_EL813001400_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Grove_Gear_NH830000100_Catalog.pdf -
VIDEO LINK
https://youtu.be/Fq2iDp8MFhE
