GRG8210545.19

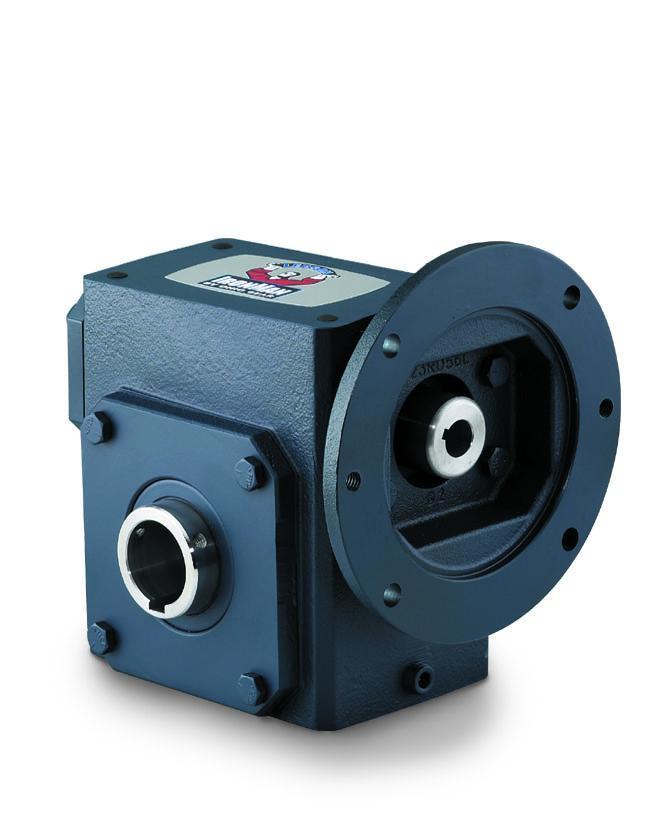

Grove Gear® IRONMAN® GRG8210545.19 Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.769 hp Input, 0.539 hp Output, 50:1 Gear, 35 rpm Maximum Output, 970 in-lb Output Torque Rating
- CP#:
- Item#: GRG-HMQ821-50-H-56-19
- Mfr#: GRG8210545.19
- UPC: 690310038895
- One piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment
- Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant
- Large oil capacity provides positive splash lubrication and superior cooling capability
- FKM double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals
- The unique quill seal guard protects the input seal from damage during motor installation
- Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life
- Oversized high speed bearings, positively retained for frequent reversing and start/stop cycles
- Tapered roller bearings on output shaft for high overhung and thrust load capacities
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product
- Ultimate application flexibility with all angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
- Mounting dimensions are interchangeable with most industry standard reducers
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The 800 series Grove Gear® IRONMAN® gear reducer is a true heavy duty workhorse that handles the environmental assaults, shock loading, frequent reversing and continuous duty cycles typical in many industrial applications. Designed to be the premium worm reducer in the industry, IRONMAN® reducers offer top quality features.
Grove Gear® IRONMAN® Worm Gear Reducer, Right Angle Single Reduction, Series: GRG, 50:1 Gear Ratio, 0.769 hp Input, 0.539 hp Output, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.188 in Dia Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 970 in-lb Output, 2.06 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 2-1/2 in Output Keyway, PAG Synthetic Oil Lubrication, Shaft Mount, Cast Iron, 6 in W
SPECIFICATIONS
| Input Size | : | 5/8 in Dia |
| Material | : | Cast Iron |
| Mounting Type | : | Shaft |
| Output Size | : | 1.188 in Dia |
| Series | : | GRG |
| Input Type | : | C-Face Quill |
| Output Type | : | Hollow Bore |
| Gear Ratio | : | 50:1 |
| Type | : | Right Angle Single Reduction |
| Dimensions | : | 6 in W |
| Keyway Size | : | 3/16 x 3/32 in Input, 1/4 x 2-1/2 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | PAG Synthetic Oil |
| Centre Distance | : | 2.06 in |
| Horsepower | : | 0.769 hp Input, 0.539 hp Output |
| Output Maximum Speed | : | 35 rpm |
| Torque Rating | : | 970 in-lb Output |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/343/Grove_Gear_EL813001400_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/343/Grove_Gear_GRG821051216_Catalog.pdf -
VIDEO LINK
https://youtu.be/Fq2iDp8MFhE
