- Grove Gear® EL8180125.00
EL8180125.00

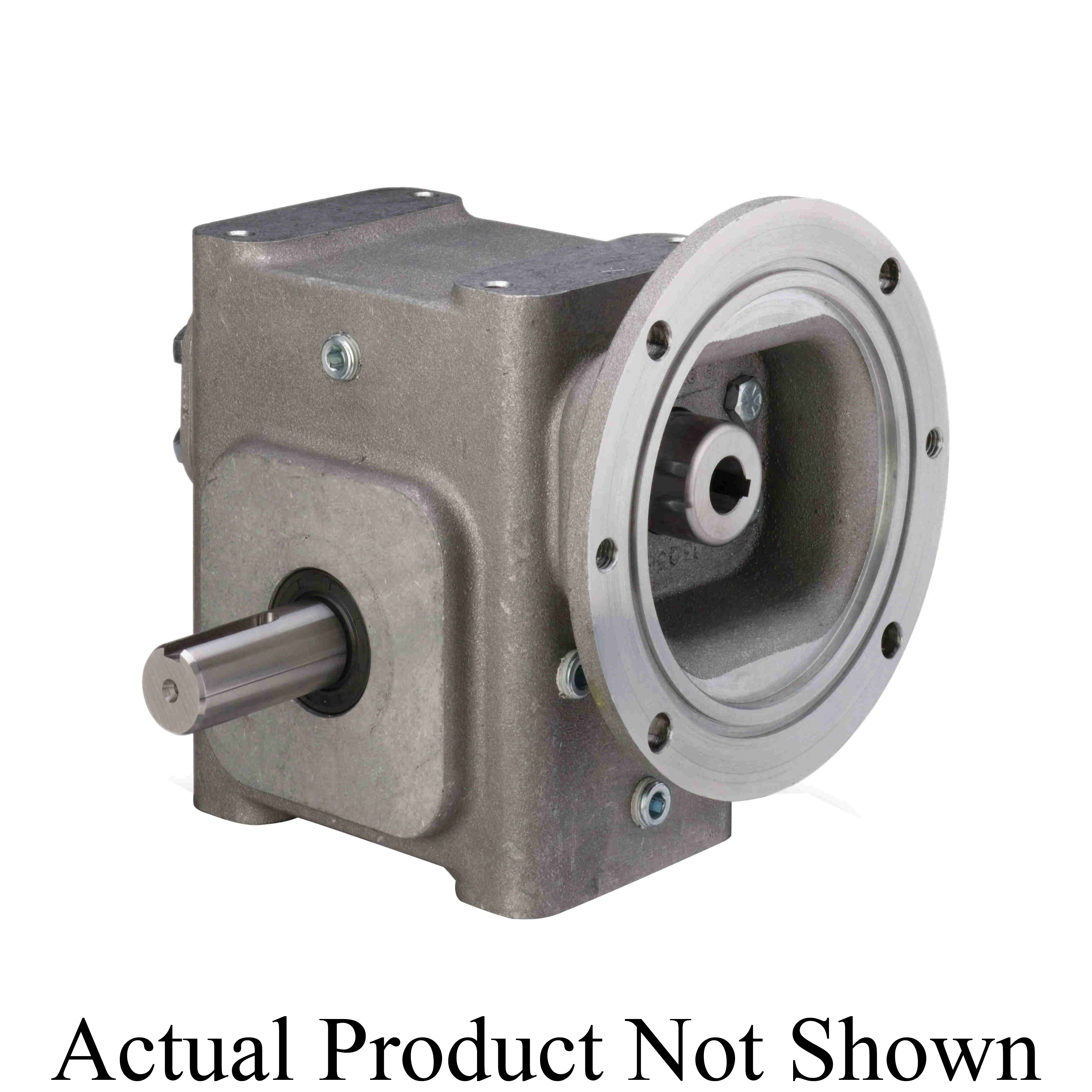

Grove Gear® ELECTRA GEAR® EL8180125.00 Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.046 hp Input, 0.875 hp Output, 20:1 Gear, 87 rpm Maximum Output, 630 in-lb Output Torque Rating
- CP#:
- Item#: EL-BMQ818-20-R-56
- Mfr#: EL8180125.00
- UPC: 662959002810
- Aluminum housing provides superior resistances to corrosion even in harsh environments
- Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant - USDA class H1 approved
- Large oil capacity provides positive splash lubrication and superior cooling capability
- FKM double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals
- Oversized high speed bearings, positively retained for frequent reversing and start/stop cycles
- Tapered roller bearings on output shaft for high overhung and thrust load capacities
- The unique quill seal guard protects the input seal from damage during motor installation
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product
- Ultimate application flexibility with all angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
- Mounting dimensions are interchangeable with most industry standard reducers
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Our unique ELECTRA GEAR® aluminum gear reducer line is the most extensive of its kind in North America, incorporating a design that provides features in a robust aluminum single piece housing. ELECTRA GEAR® aluminum reducers are a lightweight, yet durable alternative to today's cast iron and stainless steel models and are available off the shelf or customized to your exact specifications.
Grove Gear® ELECTRA GEAR® Worm Gear Reducer, Right Angle Single Reduction, Series: EL Series, 20:1 Gear Ratio, 1.046 hp Input, 0.875 hp Output, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 0.75 in Dia x 2.05 in L Output, 87 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 630 in-lb Output, 1-3/4 in Centre Distance, 3/16 x 3/32 in Input, 0.1875 x 1.38 in Output Keyway, PAG Synthetic Oil Lubrication, Base Mount, Aluminum
SPECIFICATIONS
| Input Size | : | 5/8 in Dia |
| Material | : | Aluminum |
| Mounting Type | : | Base |
| Output Size | : | 0.75 in Dia x 2.05 in L |
| Series | : | EL Series |
| Input Type | : | C-Face Quill |
| Output Type | : | Shaft |
| Gear Ratio | : | 20:1 |
| Type | : | Right Angle Single Reduction |
| Keyway Size | : | 3/16 x 3/32 in Input, 0.1875 x 1.38 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | PAG Synthetic Oil |
| Horsepower | : | 1.046 hp Input, 0.875 hp Output |
| Output Maximum Speed | : | 87 rpm |
| Torque Rating | : | 630 in-lb Output |
