- Gates® 93855125
93855125

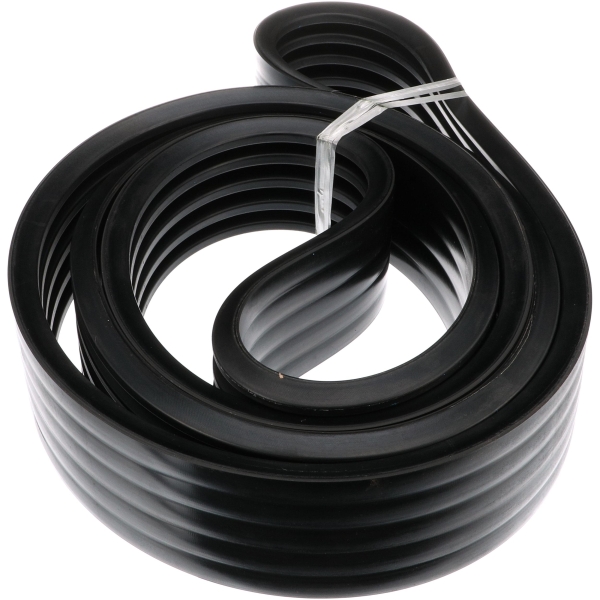

Gates® Power Transmission Super HC® PowerBand® 5/3V1250 Banded Heavy Duty V-Belt, 3V Section, 3/8 in W Top, 125 in L Outside, 21/64 in THK, Chloroprene
- CP#:
- Item#: 5/3V1250
- Mfr#: 93855125
- UPC: 07205328742
- Flex-Bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shockloads, and the absorption of bending stress without cord deterioration
- Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service and reduced pulley wear
- Recommended for use on all industrial heavy-duty, narrow section V-belt drives and particularly where space, weight and horsepower capacity are critical
- Up to 300% capacity increase over classical belts
- Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.
Gates® Power Transmission Super HC® PowerBand® V-Belt, Banded Heavy Duty, Series: 9385, 3V Section, 3/8 in Top Width, 125 in Outside Length, 21/64 in Thickness, 5 Ribs, 3.82 in Diameter Minimum Pulley, -30 to 180 deg F, Chloroprene, Flex-Bonded Polyester Reinforced
SPECIFICATIONS
| Series | : | 9385 |
| Number of Ribs | : | 5 |
| Section Size | : | 3V |
| Top Width | : | 3/8 in |
| Material | : | Polychloroprene (Neoprene) |
| Type | : | Banded Heavy Duty |
| Temperature Range | : | -22 to 180 deg F |
| Minimum Pulley Diameter | : | 3.82 in |
| Color | : | Black |
| Reinforced Material | : | Flex-Bonded Polyester |
| Outside Length | : | 125 in |
| Thickness | : | 21/64 in |
DOCUMENTS
-
Sales Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/17716_SUPHC_PB_0621_ADA.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_93855125_Specification_Sheet.pdf
