- Gates® 90530081
90530081

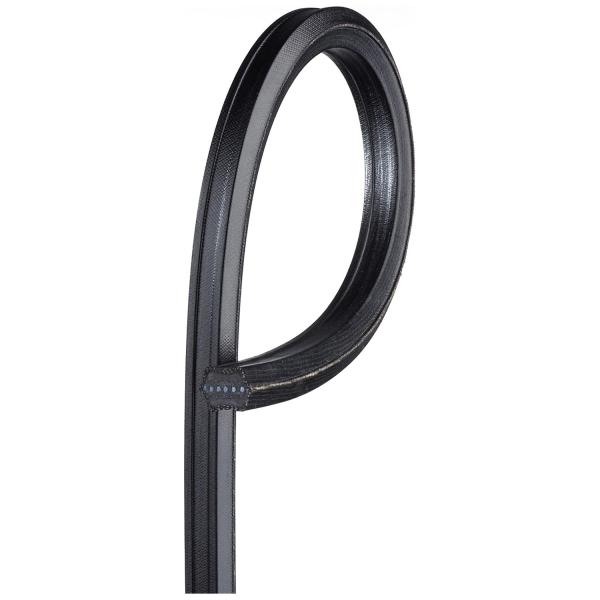

Gates® Power Transmission Hi-Power® II BB81 Banded Heavy Duty Double V-Belt, BB Section, 21/32 in W Top, 84 in L Outside, 17/32 in THK, EPDM
- CP#:
- Item#: BB81
- Mfr#: 90530081
- UPC: 07205320361
- Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life. Fully wrapped construction, eliminates debris and dust concerns found in competitive double notch belts
- Flex-Bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration. Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments
- Ideal solution for "serpentine" drives (drives with counter rotating shafts) where power is transmitted from both the top and the bottom of the belts
- Field tests prove Gates belts run 3-6 months and more compared to similar competitor belts that last only 1-3 weeks. All sizes meet Gates V80™ system matching tolerances
- Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
This belt is designed with a unique recessed top and bottom to maintain sidewall contact, while remaining flexible for drives that require power transmission from both sides of the belt.
Gates® Power Transmission Hi-Power® II Double V-Belt, Banded Heavy Duty, Series: 9053, BB Section, 21/32 in Top Width, 84 in Outside Length, 17/32 in Thickness, 1 Rib, 5.73 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced
SPECIFICATIONS
| Series | : | 9053 |
| Top Width | : | 21/32 in |
| Section Size | : | BB |
| Material | : | SBR |
| Number of Ribs | : | 1 |
| Minimum Pulley Diameter | : | 5.73 in |
| Type | : | Banded Heavy Duty |
| Reinforced Material | : | Flex-Bonded Polyester |
| Outside Length | : | 84 in |
| Thickness | : | 17/32 in |
| Temperature Range | : | -22 to 140 deg F |
DOCUMENTS
-
Sales Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/17721_HIPWRDUBV_FP_0621_AD.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_90530081_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
