- Gates® 90132061
90132061

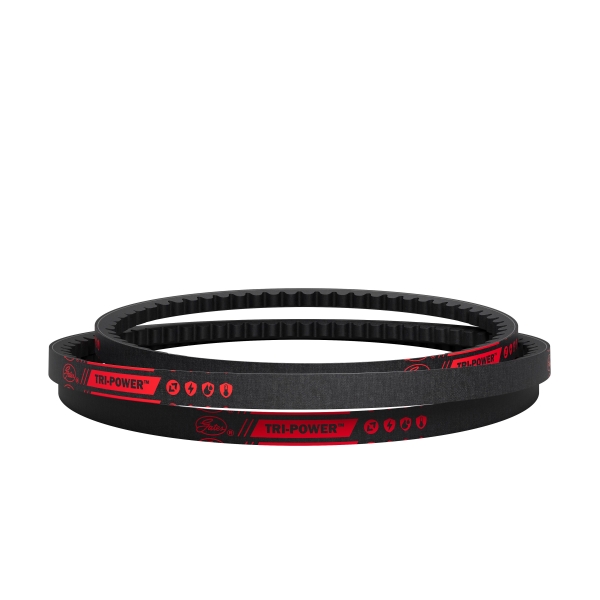

Gates® Power Transmission Tri-Power® BX61 Heavy Duty Molded Notch V-Belt, BX Section, 21/32 in W Top, 64 in L Outside, 13/32 in THK, EPDM
- CP#:
- Item#: BX61
- Mfr#: 90132061
- UPC: 07205320826
- Belt edge is machined for even sheave groove contact, resulting in smoother running, less slip and wear
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution and absorption of bending stress without cord deterioration. 15% capacity increase over wrapped belts
- Notches molded into the belt during manufacturing increase flexibility, making this belt well suited for drives with smaller diameter sheaves
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance.
Gates® Power Transmission Tri-Power® V-Belt, Heavy Duty Molded Notch, Series: 9013, BX Section, 21/32 in Top Width, 64 in Outside Length, 13/32 in Thickness, 1 Rib, 4.775 in Diameter Minimum Pulley, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced
SPECIFICATIONS
| Series | : | 9013 |
| Top Width | : | 21/32 in |
| Section Size | : | BX |
| Material | : | Ethylene Elastomeric |
| Number of Ribs | : | 1 |
| Minimum Pulley Diameter | : | 4.775 in |
| Type | : | Heavy Duty Molded Notch |
| Reinforced Material | : | Flex-Bonded Polyester |
| Outside Length | : | 64 in |
| Thickness | : | 13/32 in |
| Temperature Range | : | -60 to 250 deg F |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_90132061_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
