- Gates® 90037345
90037345
Gates® Power Transmission Power Curve® B345PC Heavy Duty V-Belt, B Section, 21/32 in W Top, 346 in L Outside, 13/32 in THK, EPDM
- CP#:
- Item#: B345PC
- Mfr#: 90037345
- UPC: 07205367473

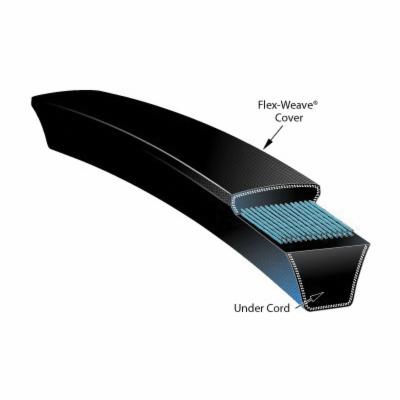

- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Unique under cord construction allows greater than four times the flexibility of Gates® standard B section belt
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The conveyor turn is a demanding application in which V-belts face varying degrees of transverse bending. The Gates® Power Curve® belt was specifically engineered to handle the bending and twisting of this demanding application.
Gates® Power Transmission Power Curve® V-Belt, Heavy Duty, Series: 9003, B Section, 21/32 in Top Width, 346 in Outside Length, 13/32 in Thickness, 1 Rib, EPDM, Polyester Reinforced
SPECIFICATIONS
| Series | : | 9003 |
| Top Width | : | 21/32 in |
| Section Size | : | B |
| Material | : | EPDM |
| Number of Ribs | : | 1 |
| Type | : | Heavy Duty |
| Reinforced Material | : | Polyester |
| Outside Length | : | 346 in |
| Thickness | : | 13/32 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
