78743085

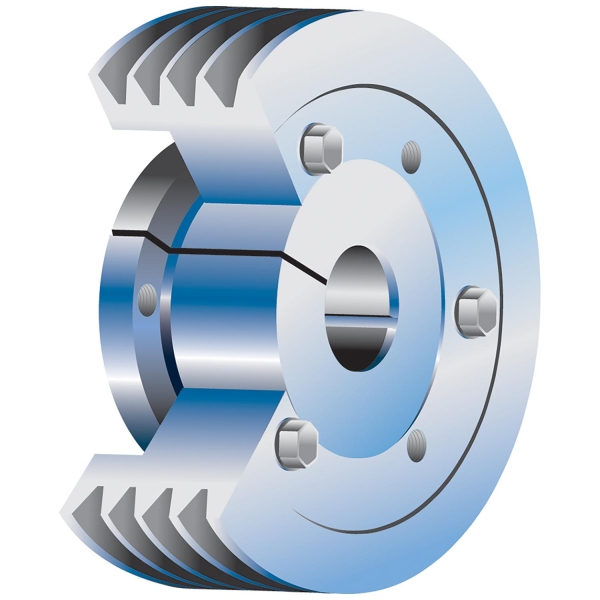

Gates® Power Transmission Super HC® QD3/5V8.50 Heavy Duty Multiple Groove Sheave, 1/2 to 2-15/16 in QD® Bore, 8-1/2 in OD, 3 Grooves, 8.4 in Dia Pitch, 2-3/8 in W Face
- CP#:
- Item#: QD3/5V8.50
- Mfr#: 78743085
- UPC: 07205309969
- WARNING: Do NOT use these sheaves with rim speeds in excess of 6,500 fpm
- Narrower sheave design is precision manufactured, static balanced, and transmits higher horsepower
- Precise sheave design produces positive, press fit to shaft
- Meets RMA oil- and heat-resistant standards and static conductivity requirements
- Full split in bushing allows for easy installation and removal
- Sheaves and bushings must be ordered separately
- Details shown which do not affect drive function or overall weight may be changed without notification
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Gates QD, or "Quick Disconnect", sheaves are designed for easy, convenient use with your Super HC® and Super HC PowerBand® belts.
Gates® Power Transmission Super HC® Multiple Groove Sheave, Heavy Duty, Series: 7874, QD® Bore, 1/2 to 2-15/16 in Bore Dia, 8-1/2 in Outside Dia, 8.4 in, 3 Grooves, 2-3/8 in Face Width, SF Bushing, 2 in Overall Length, For Use With: Super HC® and Super HC® PowerBand® Belts, Ductile Iron
SPECIFICATIONS
| Series | : | 7874 |
| Overall Length | : | 2 in |
| Material | : | Ductile Iron |
| Bushing Type | : | SF |
| Bore Diameter | : | 1/2 to 2-15/16 in |
| Bore Type | : | QD® |
| Outside Diameter | : | 8-1/2 in |
| Number of Grooves | : | 3 |
| Pitch Diameter | : | 8.4 in |
| Face Width | : | 2.38 in |
| Suitable For Use With | : | Super HC® and Super HC® PowerBand® Belts |
| Type | : | Web and Spoke |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_74690701_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_78312030_Manual.pdf
