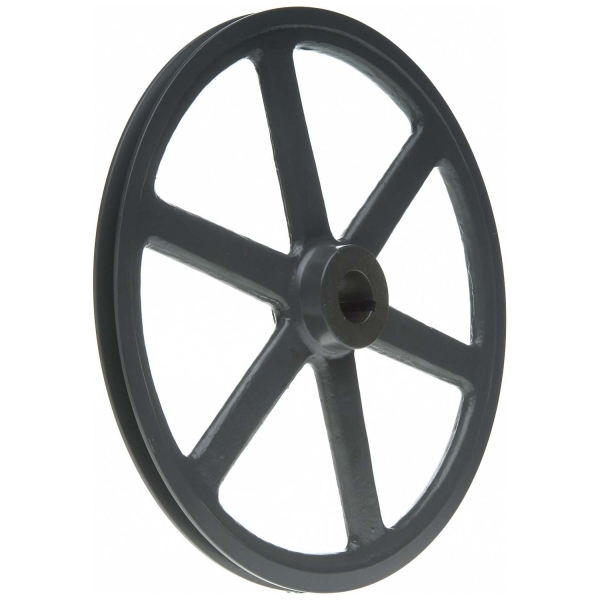

Gates® Power Transmission AK134 1.7/16 Light Duty Spoke Sheave, 1-7/16 in Bored to Size Bore, 13-1/4 in OD, 1 Grooves, 12.66 in (3L)/13 in (4L) Dia Pitch, 3/4 in W Face
- CP#:
- Item#: AK134 1.7/16GAT
- Mfr#: 78052744
- UPC: 07205319633
- NOTE: Pitch diameter is a reference diameter only
- For use with Gates Truflex® belts "3L" - "4L", "4L" - "5L"
- Single- or double-groove designs are available. Grooves are precision machined
- Available in Web, Solid, or Spoke-type styles. Sheaves up to 3.80" outside diameter are Solid Type. Sheaves with outside diameter larger than 3.80" are Web and Spoke Types
- Details shown which do not affect drive function or overall weight may be changed without notification
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lightweight, bored-to-size pulleys for your light-duty applications, designed for easy installation with one- or two-groove construction.
Gates® Power Transmission Sheave, Light Duty Spoke, Series: 7805, Bored to Size Bore, 1-7/16 in Bore, 13-1/4 in OD, 12.66 in (3L)/13 in (4L) Pitch Diameter, 1 Grooves, 3/4 in Face Width, 2-1/2 in Diameter Hub, 0.72 in Hub Projection, For Use With: Truflex® 3L or 4L Cross Section V-Belts, Cast Iron, Painted
SPECIFICATIONS
| Series | : | 7805 |
| Material | : | Cast Iron |
| Bore Diameter | : | 1-7/16 in |
| Bore Type | : | Bored to Size |
| Outside Diameter | : | 13.25 in |
| Number of Grooves | : | 1 |
| Pitch Diameter | : | 12.66 in (3L)/13 in (4L) |
| Face Width | : | 3/4 in |
| Type | : | Web and Spoke |
| Finish | : | Painted |
| Suitable For Use With | : | Truflex® 3L or 4L Cross Section V-Belts |
| Hub Diameter | : | 2-1/2 in |
| Hub Projection | : | 0.72 in |
DOCUMENTS
-
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_78052744_Full_Engineering_Drawing.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
