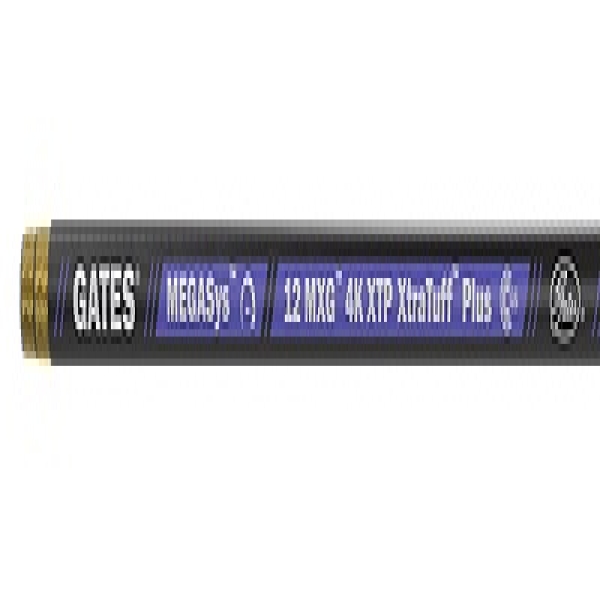

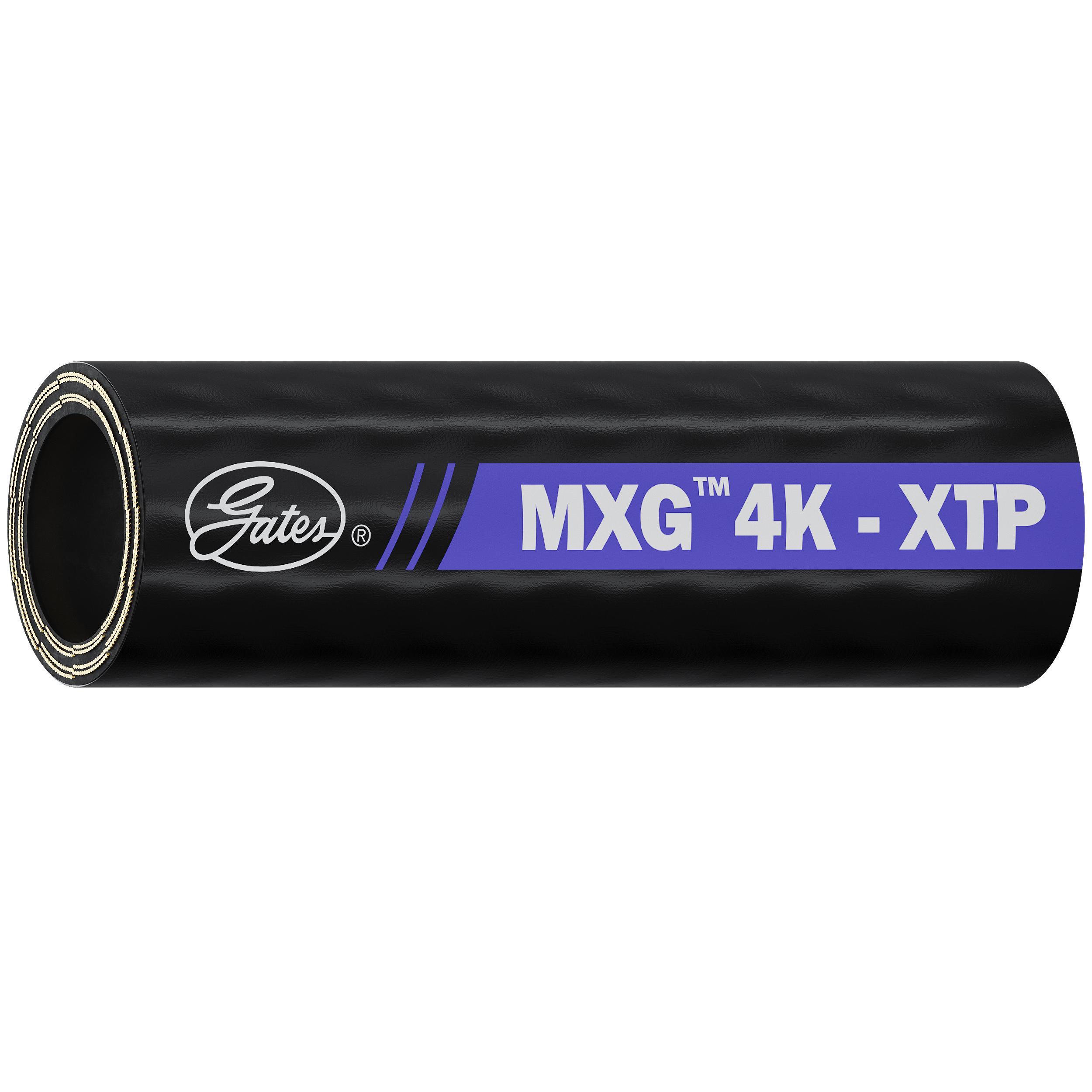

- Gates® 46780003
46780003
HYDRAULIC HOSE
- CP#:
- Item#: 10MXG4K-XTPXREEL
- Mfr#: 46780003
- UPC: 77007579999
- Recommended For: Very high-pressure, high-impulse abrasive applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluids.
- For use with GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series] (-6 to -12 Only).
- Tested to industry-leading 1,000,000 impulse cycles with GlobalSpiral™ and 600,000 impulse cycles with MegaCrimp™.
- XtraTuff™ Plus cover on MXG 4K hose comes standard and offers 25 times the abrasion resistance of standard covers, as well as superior ozone resistance.
- Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 40% better and OD is 9% smaller).
- 30% lighter weight for easier handling and installation.
- Exceeds all criteria of SAE 100R19 and ISO 18752 280DC; exceeds performance criteria of SAE 100R12, EN 856 R12, ISO 3862 R12 (Size -16 also exceeds EN 856 4SP performance requirements).
- MXG4K-XTP passes SAE J1754 Class A cool-down requirements with GlobalSpiral™ couplings and meets Flame Resistant Acceptance Designation MSHA 2G.
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Built with Gates patented Xpiral™ woven spiral technology, MegaSys™ MXG™ 4K hose is lightweight, highly flexible, and qualified to one million impulse cycles — it’s a drop in replacement for conventional spiral hoses. Using design expertise and processing technologies, we engineered a hydraulic hose that exceeds the performance of wire spiral constructions but with the lower weight and flexibility driven by Gates materials science technology.
SPECIFICATIONS
| Nominal Size | : | Unspecified |
| End Style | : | Unspecified |
| Length | : | 220 ft |
| Material | : | Nitrile tube, Nitrile cover |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/MXG4KSELLSHEET.pdf
