- Gates® 46574877
46574877
GATES
- CP#:
- Item#: 10M3K X50FT
- Mfr#: 46574877
- UPC: 72053195965
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose.
- For use with GlobalSpiral™ Couplings [G20 Series], MegaCrimp™ Couplings [G25 Series], Power Crimp™ Couplings, and Stainless Steel Braid Couplings [G17 Series].
- Tested to 600,000 impulse cycles, 3 times the industry standard.

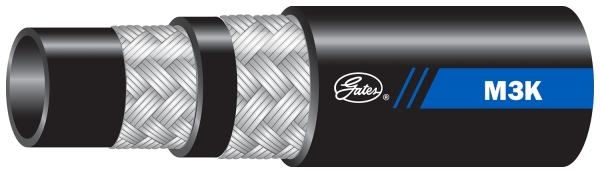

- M3K hose has smaller exterior dimensions and significantly tighter bend radius than SAE 100R1 and 100R2 hose and has greater flexibility for easier routing.
- Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
- Rated at 3250 psi working pressure.
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas.
SPECIFICATIONS
| Nominal Size | : | Unspecified |
| End Style | : | Unspecified |
| Length | : | 50 ft |
| Material | : | Nitrile tube, Modified Nitrile cover |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/M3KMegaSysHoseSellSheet.pdf
