- Gates® 46514035
46514035

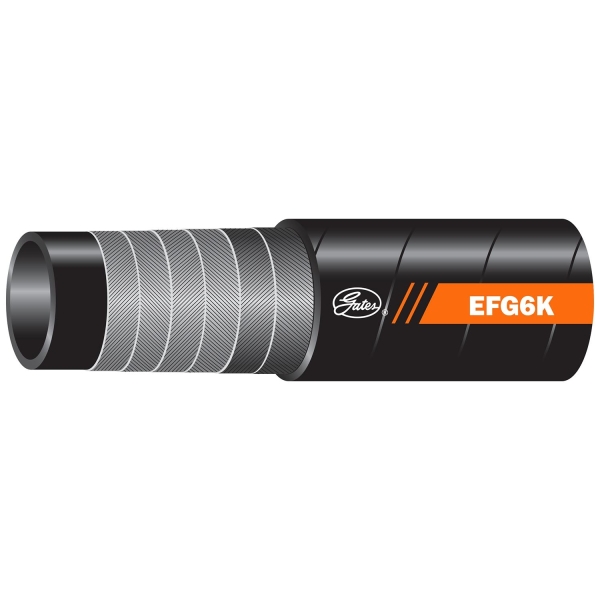

100R15 6000 PSI HOSE
- CP#:
- Item#: 12EFG6K X25FT
- Mfr#: 46514035
- UPC: 072053505993
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral MAX Pressure Couplings [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32)
- EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
EFG6K is recommended for extremely high-pressure, high-impulse applications such as hydrostatic transmissions. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
SPECIFICATIONS
| Outside Diameter | : | 1.24 in |
| Pressure Class | : | Constant Pressure-Extremely High |
| Temperature Rating | : | -40 to 250 deg F |
| Length | : | 25 ft |
| Working Pressure | : | 6000 psi |
| Material | : | Nitrile tube, Neoprene cover |
