- Gates® 46514025
46514025

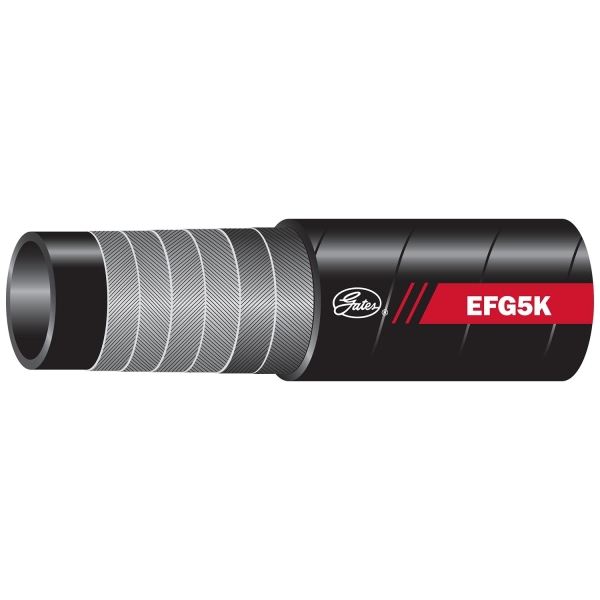

5000psi gates hydraulic hose
- CP#:
- Item#: 20EFG5KX25FT
- Mfr#: 46514025
- UPC: 072053506082
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose
- Available in 121' through 200' continuous lengths
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32)
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Extremely high–pressure high–impulse applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based fluids.
SPECIFICATIONS
| Outside Diameter | : | 1.97 in |
| Pressure Class | : | Constant Pressure-Extremely High |
| Temperature Rating | : | -40 to 250 deg F |
| Nominal Size | : | Unspecified |
| End Style | : | Unspecified |
| Length | : | 25 ft |
| Working Pressure | : | 5000 psi |
| Material | : | Nitrile tube, Neoprene cover |
