CSK35
Formsprag Clutch® CSK35 Sprag Clutch, 35 mm Dia Bore, 72 mm OD, 240 N-m Torque, 3600 rpm Max
- CP#:
- Item#: CSK35
- Mfr#: CSK35
- UPC: 786582324160
- 21 to 140 deg F operating temperature
- Bearing envelope design
- Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg
- Without keyway
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

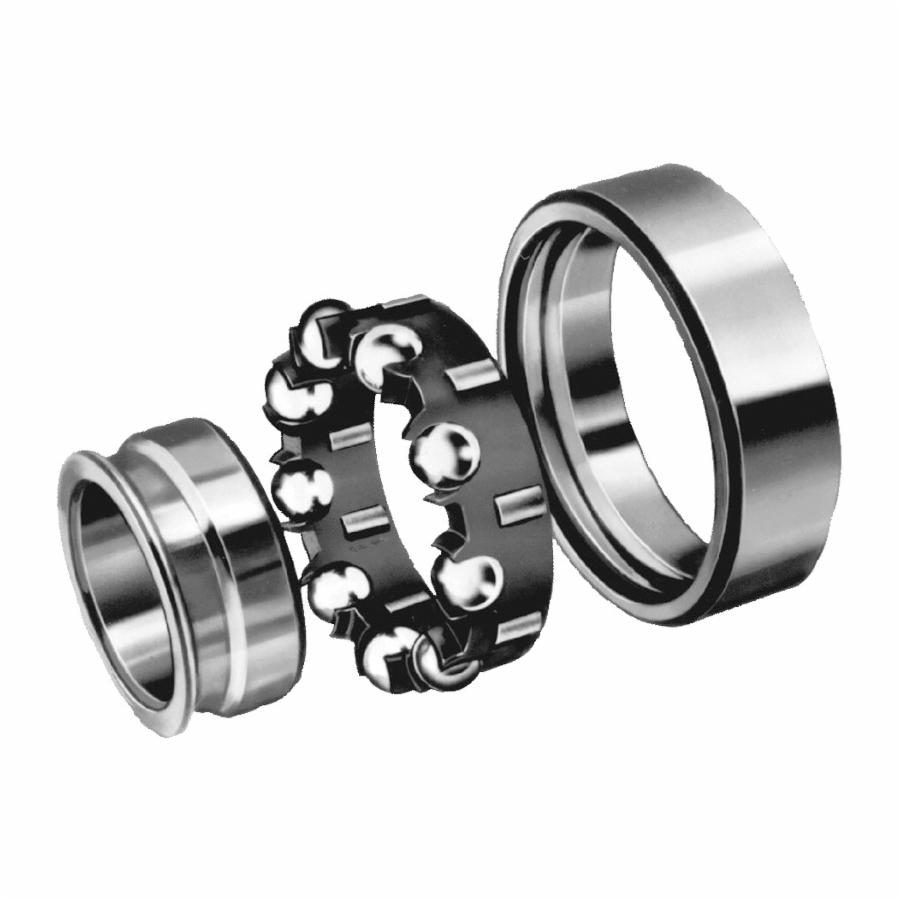

The CSK series is a sprag type clutch integrated into a 62 series ball bearing. This clutch is bearing supported and shipped grease lubricated and protected against dust larger than 0.012 in (0.33 mm) in Dia.
Formsprag Clutch® Sprag Clutch, Series: CSK, 35 mm Bore, 72 mm OD, 17 mm Overall Length, 240 N-m Torque, 3600 rpm Maximum, Vertical (Zero-U) Mounting
SPECIFICATIONS
| Mounting Type | : | Vertical (Zero-U) |
| Overall Length | : | 17 mm |
| Series | : | CSK |
| Bore Diameter | : | 35 mm |
| Outside Diameter | : | 72 mm |
| Torque Rating | : | 240 N-m |
| Maximum Speed | : | 3600 rpm |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/17/Formsprag_Clutch_ASK40_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/382/Formsprag_Clutch_HSB7503000_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/532/Formsprag_Clutch_CSK12_Specification_Sheet.pdf
