- Formsprag Clutch® CL41603-160
CL41603-160

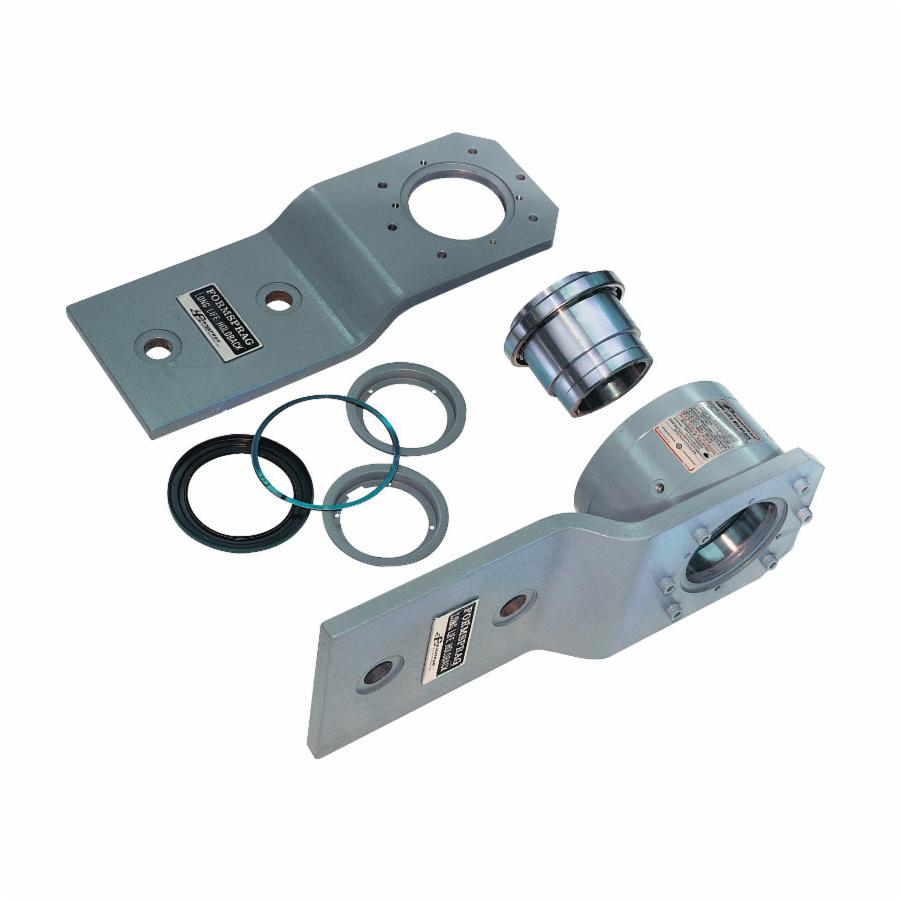

Formsprag Clutch® Long Life Holdbacks® CL41603-160 LLH-900S Holdback Long Life Sprag Clutch With 1 x 3/8 in Keyseat, 4.937 in Dia Bore, 12 in OD, 18000 ft-lb Torque, 250 rpm Max
- CP#:
- Item#: CL41603-160
- Mfr#: CL41603-160
- UPC: 786582302809
- The function of the holdback clutch is to permit rotation of the mechanism connected to the inner race in one direction only
- Quickly detachable torque arm
- Grease labyrinth protected oil seals that positively prevent airborne contaminants from reaching internal seals and parts
- Its function is to prevent reverse rotation
- Special purpose designs
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Formsprag Clutch®'s LLH (Long Life Holdbacks) series offers two technology options in backstopping designs, sprag and ramp and roller. The sprag design is comprised of a full complement of accurately formed sprags filling the annular space. The ramp and roller design consists of precision machined ramps on the inner race and bearing quality cylindrical rollers filling the annular space.
Formsprag Clutch® Long Life Holdbacks® Sprag Clutch, Holdback Long Life, Series: LLH-900S, 4.937 in Bore, 12 in OD, 50 in Overall Length, 18000 ft-lb Torque, 250 rpm Maximum, Vertical (Zero-U) Mounting, 9-3/4 in W x 22-3/4 in H Dimensions
SPECIFICATIONS
| Dimensions | : | 9-3/4 in W x 22-3/4 in H |
| Mounting Type | : | Vertical (Zero-U) |
| Overall Length | : | 50 in |
| Series | : | LLH-900S |
| Type | : | Holdback Long Life |
| Bore Diameter | : | 4.937 in |
| Outside Diameter | : | 12 in |
| Torque Rating | : | 18000 ft-lb |
| Maximum Speed | : | 250 rpm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/382/Formsprag_Clutch_HSB7503000_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/689/Formsprag_Clutch_CL41601202_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/689/Formsprag_Clutch_CL41601202_Specification_Sheet.pdf
