- Formsprag Clutch® ASNU50
ASNU50

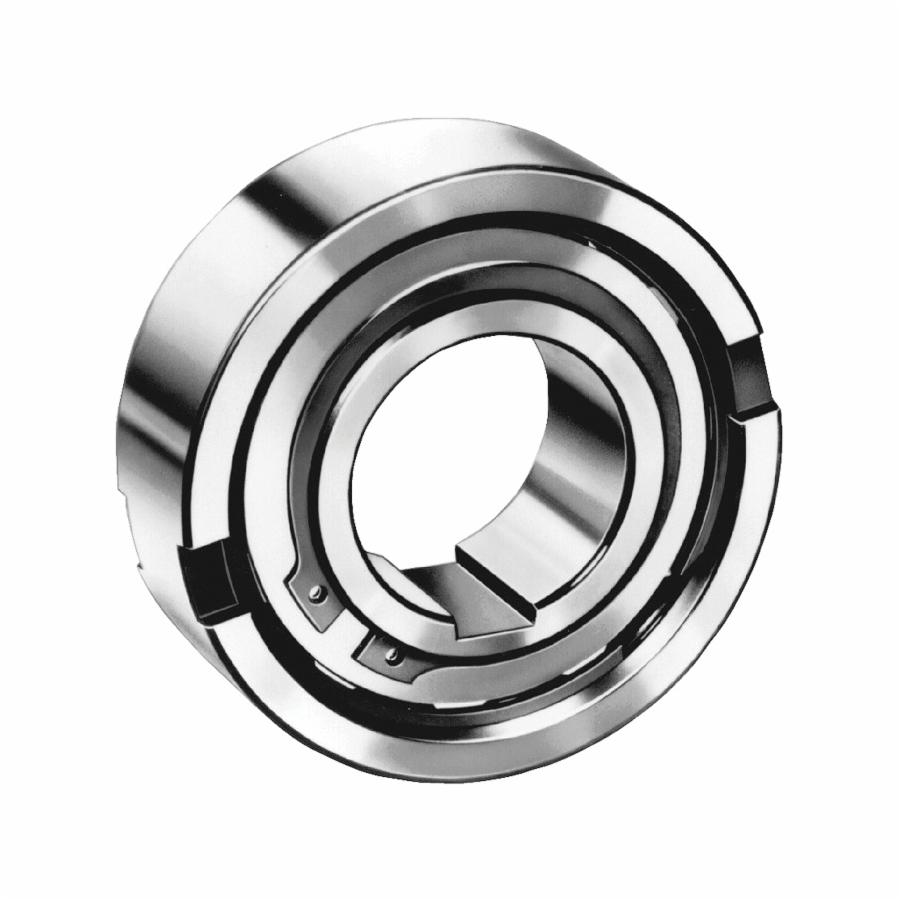

Formsprag Clutch® ASNU50 Ramp and Roller Clutch With Keyway, 50 mm Dia Bore, 110 mm OD, 748 ft-lb Torque, 850 rpm Inner/1350 rpm Outer Race Max
- CP#:
- Item#: ASNU50
- Mfr#: ASNU50
- UPC: 786582286307
- The outer race has positive n6 tolerance, to give a press fit in a H7 housing, additional side notches in the outer race provide positive torque transmission
- If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough not to expand after assembly
- This design can accept an axial misalignment of inner and outer race of +/- S/2
- These clutches are oil dipped at the factory but must be filled to the proper level before operation
- This clutch is designed for oil lubrication
- External bearing support required
- Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Model ASNU is a ramp and roller type clutch, non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing are required. Nominal outer diameter is the same as a series 63 ball bearing.
Formsprag Clutch® Ramp and Roller Clutch, Series: ASNU, 50 mm Bore, 110 mm OD, 40 mm Overall Length, 748 ft-lb Torque, 850 rpm Inner/1350 rpm Outer Race Maximum, Vertical (Zero-U) Mounting
SPECIFICATIONS
| Mounting Type | : | Vertical (Zero-U) |
| Overall Length | : | 40 mm |
| Series | : | ASNU |
| Bore Diameter | : | 50 mm |
| Outside Diameter | : | 110 mm |
| Torque Rating | : | 748 ft-lb |
| Maximum Speed | : | 850 rpm Inner/1350 rpm Outer Race |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/112/Formsprag_Clutch_ASNU12_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/20/Formsprag_Clutch_AS10_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/382/Formsprag_Clutch_HSB7503000_Catalog.pdf
