- Fenner Drives® T602015
T602015

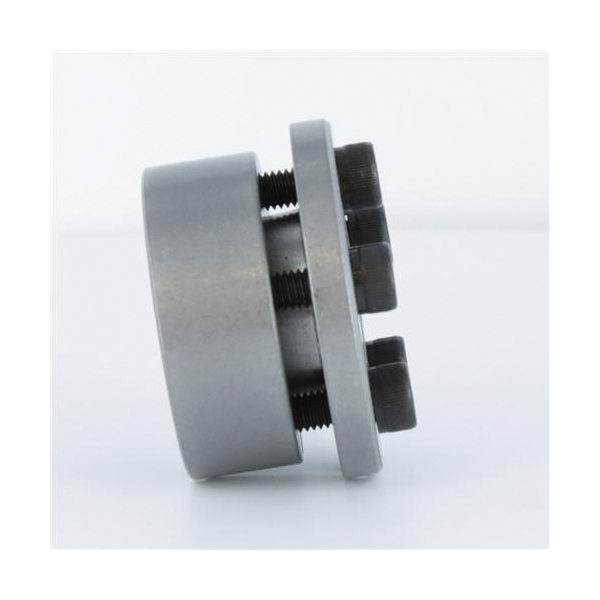

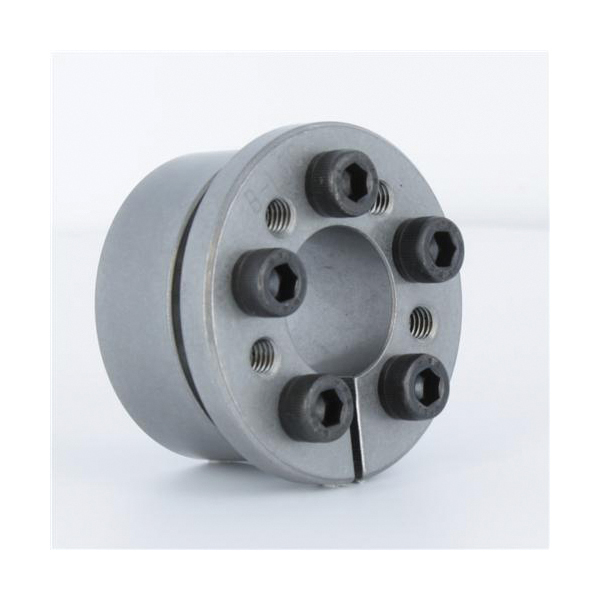

Fenner Drives® B-LOC® T602015 B106 Keyless Bushing, 15/16 in Dia Bore, 2.224 in OD, 2.592 in Dia Hub, Steel
- CP#:
- Item#: T602015
- Mfr#: T602015
- UPC: 0662345060905
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where having no axial movement of the mounted component relative to the shaft during tightening is critical and recessed mounting is not important (component mounts against the flange of the bushing)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® B106 series 15/16 in keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 15/16 in in diameter by means of a mechanical interference fit and transmits up to a maximum of 234 ft-lb of torque.
Fenner Drives® B-LOC® Keyless Bushing, Series: B106, 15/16 in Bore, 2.224 in OD, 2.592 in Diameter Hub, 234 ft-lb Transmissible Torque, 5997 lb Transmissible Thrust, 12071 psi Hub Contact, M6x20 Screw, Steel
SPECIFICATIONS
| Series | : | B106 |
| Bore Diameter | : | 15/16 in |
| Outside Diameter | : | 2.224 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 12071 psi |
| Screw Size | : | M6x20 |
| Transmissible Thrust | : | 5997 lb |
| Transmissible Torque | : | 234 ft-lb |
| Hub Diameter | : | 2.592 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_Drives_B121025_Manual.pdf
