- Fenner Drives® T601024
T601024

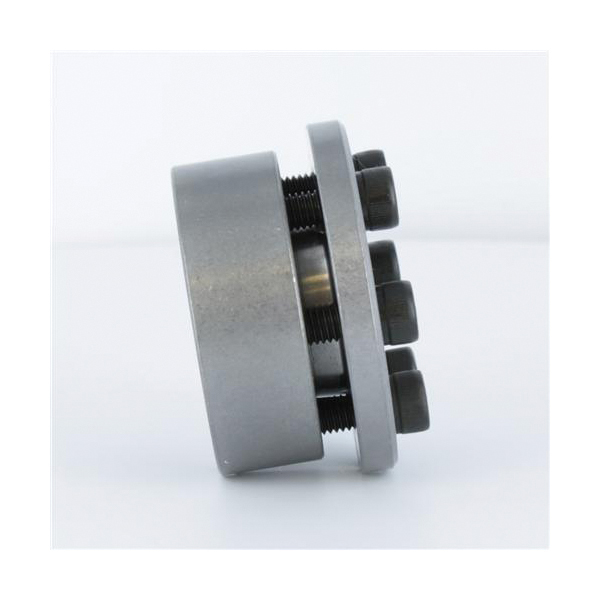

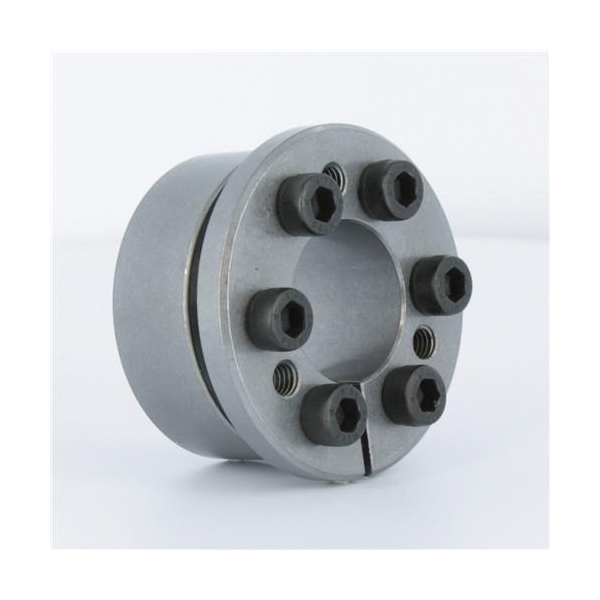

Fenner Drives® B-LOC® T601024 B106 Keyless Bushing, 24 mm Dia Bore, 56.5 mm OD, 69.4 mm Dia Hub, Steel
- CP#:
- Item#: T601024
- Mfr#: T601024
- UPC: 0662345060592
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where having no axial movement of the mounted component relative to the shaft during tightening is critical and recessed mounting is not important (component mounts against the flange of the bushing)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® B106 series 24 mm keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 24 mm in diameter by means of a mechanical interference fit and transmits up to a maximum of 378 N-m of torque.
Fenner Drives® B-LOC® Keyless Bushing, Series: B106, 24 mm Bore, 56.5 mm OD, 69.4 mm Diameter Hub, 378 N-m Transmissible Torque, 31481 N Transmissible Thrust, 98 N/sq-mm Hub Contact, M6x20 Screw, Steel
SPECIFICATIONS
| Series | : | B106 |
| Bore Diameter | : | 24 mm |
| Outside Diameter | : | 56.5 mm |
| Material | : | Steel |
| Hub Contact Pressure | : | 98 N/sq-mm |
| Screw Size | : | M6x20 |
| Transmissible Thrust | : | 31481 N |
| Transmissible Torque | : | 378 N-m |
| Hub Diameter | : | 69.4 mm |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_Drives_B121025_Manual.pdf
