T402212

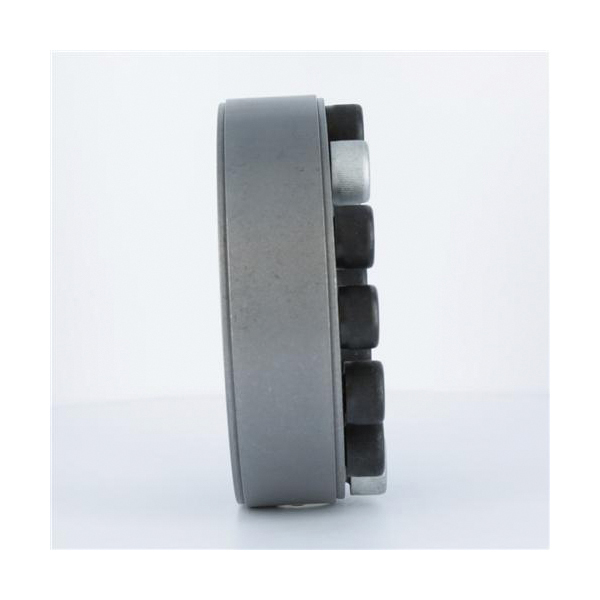

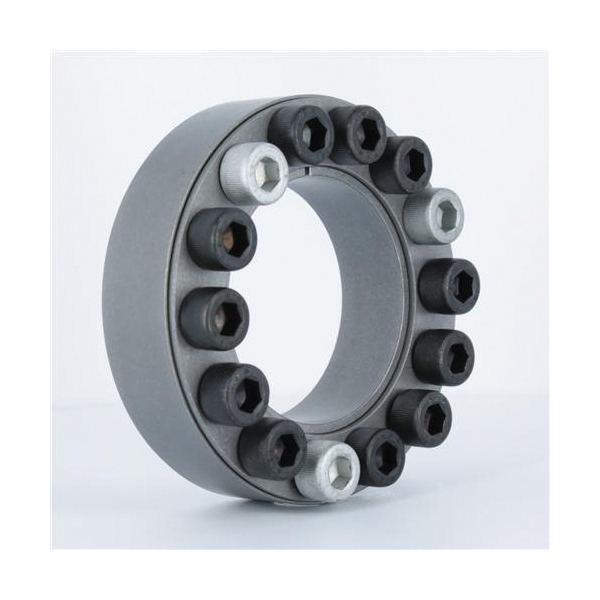

Fenner Drives® B-LOC® T402212 B400 Keyless Pilot Bushing, 2-3/4 in Dia Bore, 4.337 in OD, 7.985 in Dia Hub, 1.496 in OAL, Steel
- CP#:
- Item#: T402212
- Mfr#: T402212
- UPC: 0662345063456
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications that require a recessed installation of the bushing with no axial movement of the mounted component relative to the shaft during tightening
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® B400 series 2-3/4 in keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 2-3/4 in in diameter by means of a mechanical interference fit and transmits up to a maximum of 4336 ft-lb of torque.
Fenner Drives® B-LOC® Keyless Pilot Bushing, Series: B400, 2-3/4 in Bore, 4.337 in OD, 7.985 in Diameter Hub, 4336 ft-lb Transmissible Torque, 37844 lb Transmissible Thrust, 24496 psi Hub Contact, M10x25 Screw, 1.496 in Overall Length, Steel
SPECIFICATIONS
| Series | : | B400 |
| Bore Diameter | : | 2-3/4 in |
| Outside Diameter | : | 4.337 in |
| Overall Length | : | 1.496 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 24496 psi |
| Screw Size | : | M10x25 |
| Transmissible Thrust | : | 37844 lb |
| Transmissible Torque | : | 4336 ft-lb |
| Hub Diameter | : | 7.985 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_Drives_B121025_Manual.pdf
