T301028

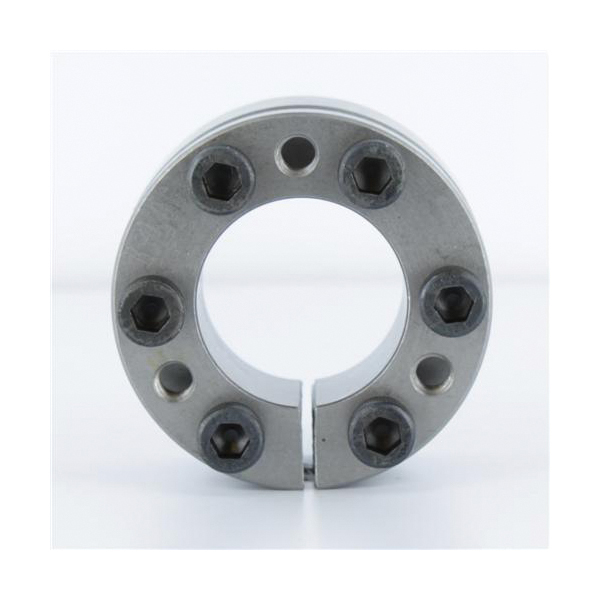

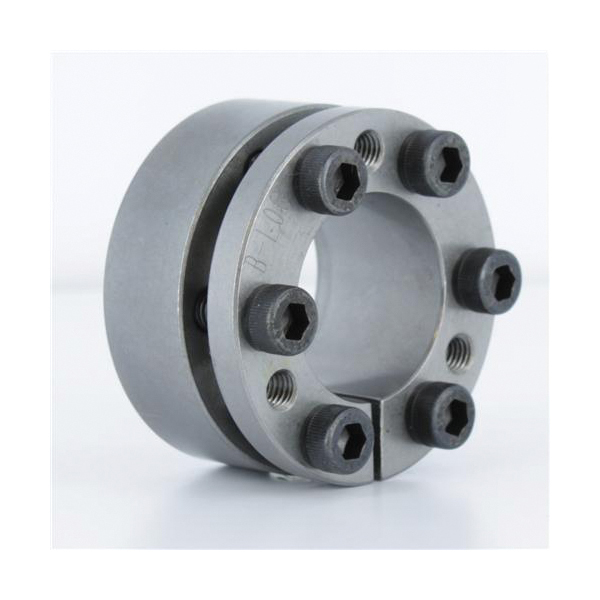

Fenner Drives® B-LOC® T301028 B103 Keyless Bushing, 28 mm Dia Bore, 55 mm OD, 83.9 mm Dia Hub, Steel
- CP#:
- Item#: T301028
- Mfr#: T301028
- UPC: 0662345058742
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications that require a recessed installation of the bushing, but can accommodate some axial movement of the mounted component relative to the shaft during tightening
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® B103 series 28 mm keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 28 mm in diameter by means of a mechanical interference fit and transmits up to a maximum of 611 N-m of torque.
Fenner Drives® B-LOC® Keyless Bushing, Series: B103, 28 mm Bore, 55 mm OD, 83.9 mm Diameter Hub, 611 N-m Transmissible Torque, 43645 N Transmissible Thrust, 124 N/sq-mm Hub Contact, M6x20 Screw, Steel
SPECIFICATIONS
| Series | : | B103 |
| Bore Diameter | : | 28 mm |
| Outside Diameter | : | 55 mm |
| Material | : | Steel |
| Hub Contact Pressure | : | 124 N/sq-mm |
| Screw Size | : | M6x20 |
| Transmissible Thrust | : | 43645 N |
| Transmissible Torque | : | 611 N-m |
| Hub Diameter | : | 83.9 mm |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_Drives_B121025_Manual.pdf
