B301025

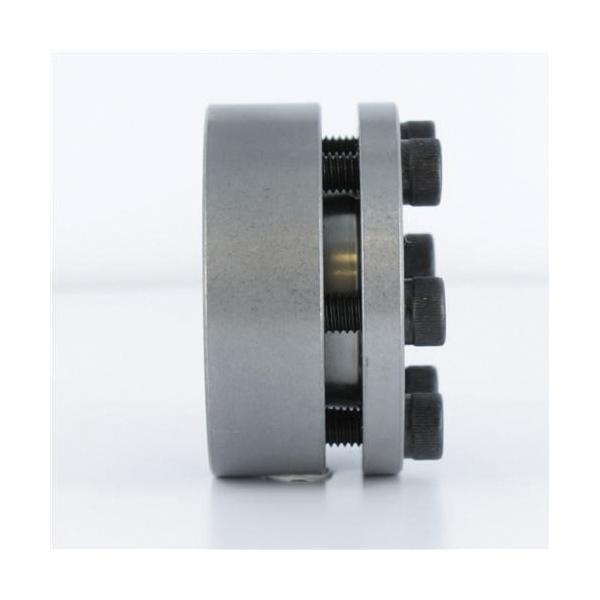

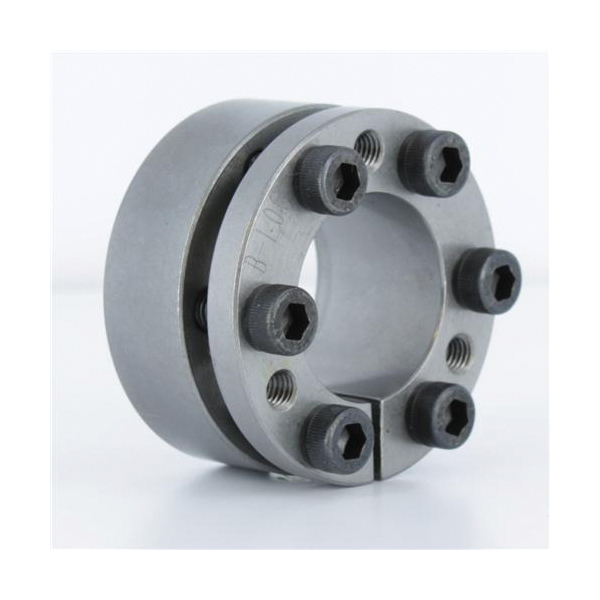

Fenner Drives® B-LOC® B301025 B103 Keyless Bushing, 25 mm Dia Bore, 50 mm OD, 80.1 mm Dia Hub, Steel
- CP#:
- Item#: B301025
- Mfr#: B301025
- UPC: 0662345043069
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications that require a recessed installation of the bushing, but can accommodate some axial movement of the mounted component relative to the shaft during tightening
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® B103 series 25 mm keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 25 mm in diameter by means of a mechanical interference fit and transmits up to a maximum of 546 N-m of torque.
Fenner Drives® B-LOC® Keyless Bushing, Series: B103, 25 mm Bore, 50 mm OD, 80.1 mm Diameter Hub, 546 N-m Transmissible Torque, 43645 N Transmissible Thrust, 136 N/sq-mm Hub Contact, M6x20 Screw, Steel, Oil Dipped
SPECIFICATIONS
| Series | : | B103 |
| Bore Diameter | : | 25 mm |
| Outside Diameter | : | 50 mm |
| Material | : | Steel |
| Finish | : | Oil Dipped |
| Hub Contact Pressure | : | 136 N/sq-mm |
| Screw Size | : | M6x20 |
| Transmissible Thrust | : | 43645 N |
| Transmissible Torque | : | 546 N-m |
| Hub Diameter | : | 80.1 mm |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_Drives_B121025_Manual.pdf
