- Fenner Drives® B122215
B122215

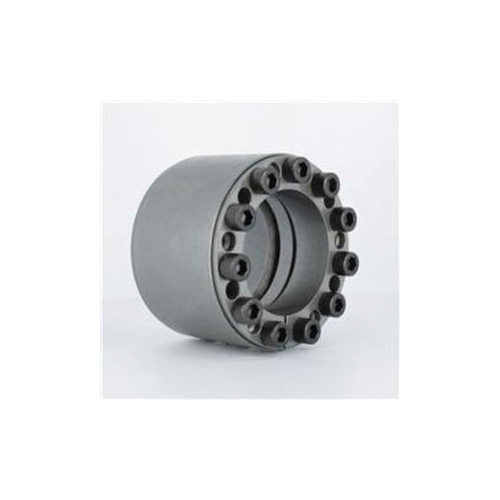

Fenner Drives® B-LOC® B122215 B112 Double Taper Heavy Duty Keyless Bushing, 2-15/16 in Dia Bore, 4.724 in OD, Steel
- CP#:
- Item#: B122215
- Mfr#: B122215
- UPC: 0662345042550
- Wide, double taper design for enhanced torque transmission and bending moment capacity
- Exceptional concentricity with thru-bored hubs
- No axial movement during installation
- Self-centering
- Eliminates need to hold shaft or lock machine while applying installation torque
- Recessed installation without the need for a counter bore
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The B-LOC® B112 series 2-15/16 in keyless bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 2-15/16 in Dia by means of a mechanical interference fit and also transmits up to a maximum of 10039 lb-ft torque.
Fenner Drives® B-LOC® Keyless Bushing, Double Taper Heavy Duty, Series: B112, 2-15/16 in Bore Dia, 4.724 in Outside Dia, 10039 ft-lb Transmissible Torque, 82017 lb Transmissible Thrust, 20887 psi Hub Contact Pressure, M10 x 60 Screw, 3.15 in Overall Length, Steel
SPECIFICATIONS
| Series | : | B112 |
| Bore Diameter | : | 2-15/16 in |
| Outside Diameter | : | 4.724 in |
| Overall Length | : | 3.15 in |
| Material | : | Steel |
| Hub Contact Pressure | : | 20887 psi |
| Type | : | Double Taper Heavy Duty |
| Screw Size | : | M10 x 60 |
| Transmissible Thrust | : | 82017 lb |
| Transmissible Torque | : | 10039 ft-lb |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_B0441_Manual.pdf
