6202360

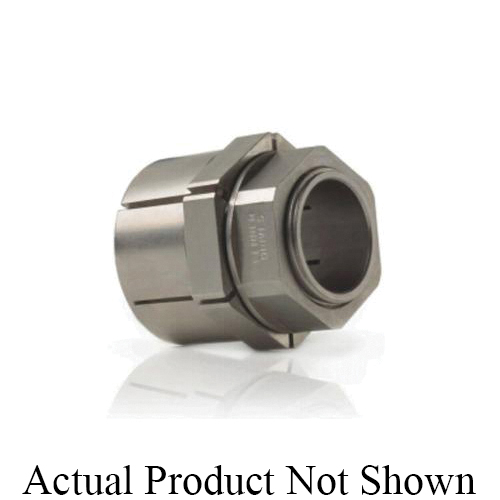

Fenner Drives® Trantorque® 6202360 GT Series Collar Nut Keyless Bushing, 1-3/8 in Dia Bore, 2-3/8 in OD, 2-3/4 in OAL, Steel

  • Item#: 1 3/8 TRANTORQ
  • Mfr#: 6202360
  • UPC: 0662345003636
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

From gears to cams, timing belt sprockets to conveyor rolls, climate control fan hubs to grinding wheels, the extensive range of Trantorque® keyless bushings - all with a single locking nut - offers easy to use options for mounting and adjusting position sensitive, zero backlash drive components and accessories.

Fenner Drives® Trantorque® Keyless Bushing, Collar Nut, Series: GT Series, 1-3/8 in Bore, 2-3/8 in OD, 431 ft-lb Transmissible Torque, 7529 lb Transmissible Thrust, 5194 psi Hub Contact, 2-3/4 in Overall Length, Steel, Zinc Plated

SPECIFICATIONS

Series      :      GT Series
Bore Diameter      :      1-3/8 in
Outside Diameter      :      2-3/8 in
Overall Length      :      2-3/4 in
Material      :      Steel
Finish      :      Zinc Plated
Hub Contact Pressure      :      5194 psi
Type      :      Collar Nut
Transmissible Thrust      :      7529 lb
Transmissible Torque      :      431 ft-lb

DOCUMENTS

  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Fenner_6202105_Manual.pdf
