0794401

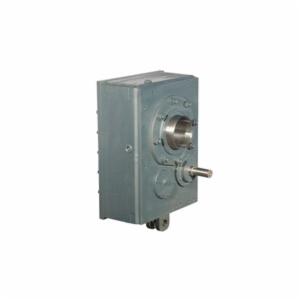

FALK® Quadrive® 0794401 5000 J-Unit Basic Drive, Solid Shaft Input, Tapered Bushing Output, 14:1 Gear, 125 rpm Maximum Output
- CP#:
- Item#: 5407J14A
- Mfr#: 0794401
- UPC: 782934268984
-
Size 5407 shaft mounted parallel helical gear drive with a 14:1 ratio. Heavy duty tapered roller bearings and high temperature grease purgeable Viton seals provide maximum protection in extreme environments. Standard Shaft Mounted (JR), Screw Conveyor (JSC) and Flanged Mounted (JF) units are built up from a Basic Unit (J)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rexnord® is a leading manufacturer of shaft mount gear drives for the heavy-duty industrial market. Our shaft mount gear drives feature rugged designs to meet every operating challenge, and they're site proven in the world's most demanding applications. Rexnord® shaft mount gear drives are application-engineered to minimize stress and wear and extend service life.
FALK® Quadrive® Basic Drive, J-Unit, Series: 5000, 14:1 Gear Ratio, Solid Shaft Input, Tapered Bushing Output, 2-1/2 in Input, 4-7/16 in Output, 125 rpm Output Maximum Speed, 8.03 in Centre Distance, Shaft/Horizontal Mount, Steel, 17.76 in L x 20.16 in W x 23.38 in H
SPECIFICATIONS
| Material | : | Steel |
| Output Size | : | 4/7/2016 in |
| Input Size | : | 2-1/2 in |
| Mounting Type | : | Shaft/Horizontal |
| Series | : | 5000 |
| Input Type | : | Solid Shaft |
| Output Type | : | Tapered Bushing |
| Gear Ratio | : | 14:1 |
| Type | : | J-Unit |
| Dimensions | : | 17.76 in L x 20.16 in W x 23.38 in H |
| Output Maximum Speed | : | 125 rpm |
