FAG NU1060-M1-C3
FAG
Email Print

NU1060-M1-C3

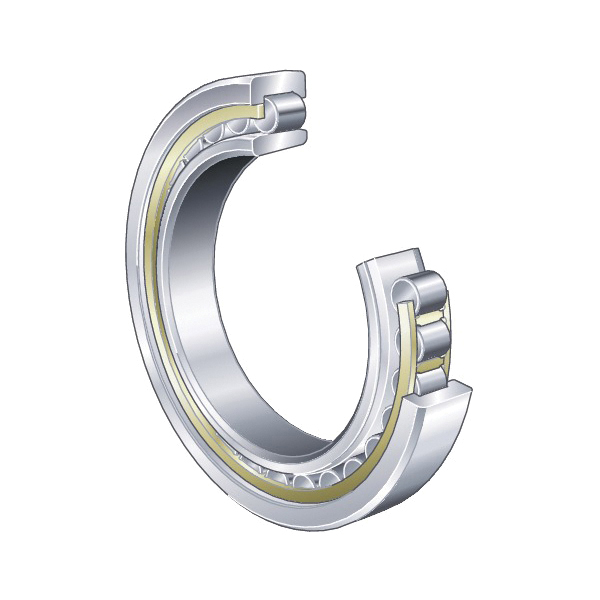

FAG NU1060-M1-C3 Separable Cylindrical Roller Bearing With Cage, 300 mm Dia Bore, 460 mm OD, 1 Row, 74 mm W, 1430000 N Load

  • Item#: NU1060-M1-C3
  • Mfr#: NU1060-M1-C3
  • UPC: 4012801337441
    • Bearing arrangements are subjected to very high radial loads
    • Bearing arrangements must have very high rigidity
    • Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
    • High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required
    • Non-locating bearing function
    • Solid brass cage, two-piece, roller-guided
    • C3 radial internal clearance
    • 900000 N dynamic/1430000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

In bearings of type NU, the outer ring has two rigid ribs, while the inner ring has no ribs. As a result, axial displacements of the shaft relative to the housing are possible in both directions and within certain limits. During rotational motion, length compensation occurs without constraint in the bearing between the rollers and the raceway without ribs and is therefore practically free from friction. The maximum axial displacement s is given in the product tables. The bearings are used as non-locating bearings, i.e. they cannot guide the shaft axially in either direction. For use as semi-locating bearings, they can be combined with the L-section ring HJ.

FAG Cylindrical Roller Bearing, Separable, Series: NU10, 300 mm Bore, 460 mm OD, 1 Rows, 74 mm Width, 1430000 N Load, Solid Brass Cage, 2290 rpm Maximum, -30 to 150 deg C

SPECIFICATIONS

Series      :      NU10
Load Capacity      :      1430000 N
Maximum Speed      :      2290 rpm
Outside Diameter      :      460 mm
Number of Rows      :      1
Width      :      74 mm
