FAG LOCKNUT-SOCKET-KM9
FAG

FAG LOCKNUT-SOCKET-KM9

loading
FAG
Email Print

LOCKNUT-SOCKET-KM9

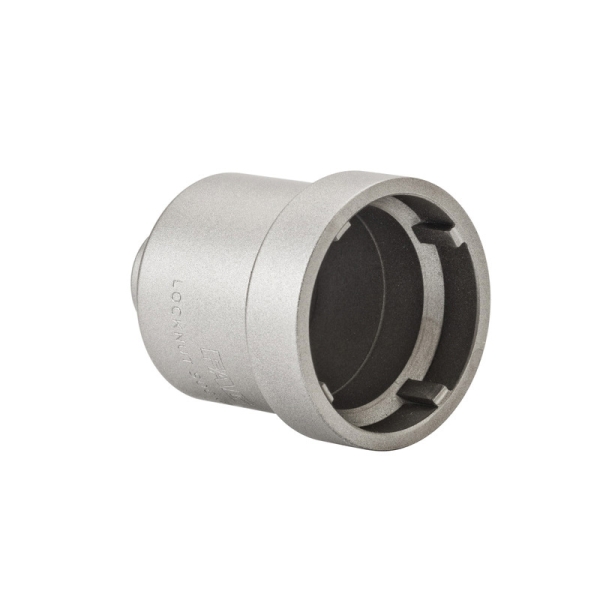

FAG LOCKNUT-SOCKET-KM9 Square Drive Lock Nut Socket, 3/4 in Drive, 65.4 mm ID x 73.5 mm OD Socket, 90 mm D Socket, Lustrous Silver

  • Item#: LOCKNUT-SOCKET-KM9
  • Mfr#: LOCKNUT-SOCKET-KM9
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Lock Nuts KM0 to KM20 can be easily tightened and loosened on shafts, adapter sleeves or extraction sleeves using socket wrenches LOCKNUT-SOCKET-KM. They require less space on the circumference of the nut than hook wrenches and allow the use of ratchets and torque wrenches. For increased reliability, socket wrenches should be secured using a locking pin and rubber washer. FAG socket wrenches therefore have a hole for the locking pin and a groove for the rubber washer.

FAG Lock Nut Socket, Square Drive, Series: LOCKNUT-SOCKET-KM, 3/4 in Drive, 65.4 mm ID x 73.5 mm OD Socket, 90 mm Socket Depth, For Use With: KM9 Lock Nut, ZMA30, ZMA65, ZM45, AM35, AM40 Precision Lock Nuts and AMS40 Socket Wrench, Lustrous Silver

SPECIFICATIONS

Drive Size      :      3/4 in
Series      :      LOCKNUT-SOCKET-KM
Finish      :      Lustrous Silver
Socket Depth      :      90 mm
Socket Size      :      65.4 mm ID x 73.5 mm OD
Suitable For Use With      :      KM9 Lock Nut, ZMA30, ZMA65, ZM45, AM35, AM40 Precision Lock Nuts and AMS40 Socket Wrench

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/FAG_FITTINGTOOLALUHAMMER_Catalog.pdf
