FAG 7201-B-XL-TVP-UO
FAG

FAG 7201-B-XL-TVP-UO

loading
FAG 7201-B-XL-TVP-UO
FAG
Email Print

7201-B-XL-TVP-UO

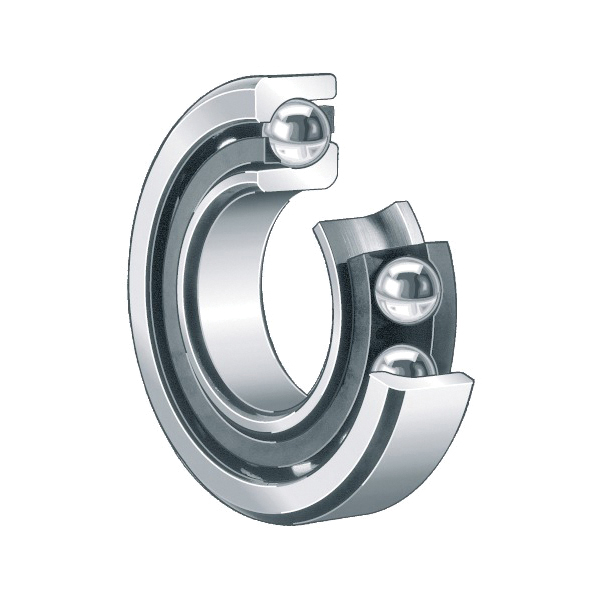

FAG 7201-B-XL-TVP-UO Angular Contact Ball Bearing, 12 mm Dia Bore, 32 mm OD, 1 Row, 10 mm W, 40 deg, 7400 N Load

  • Item#: 7201B.TVP.UO
  • Mfr#: 7201-B-XL-TVP-UO
    • Single row angular contact ball bearings are particularly suitable where bearing arrangements must support combined loads
    • Moderate to high axial loads are present on one side
    • The bearing arrangement must be axially clearance-free or preloaded
    • High speeds are required under higher radial and axial loads
    • X-life design
    • Standard solid cage made from glass fiber reinforced polyamide PA66
    • 7400 N dynamic/3550 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Single-row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.

FAG Angular Contact Ball Bearing, Series: 72-B, 12 mm Bore, 32 mm OD, 1 Rows, 10 mm Width, 40 deg Contact Angle, Open Closure, 7400 N Load, Polyamide Cage, 30000 rpm Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      72-B
Contact Angle      :      40 deg
Load Capacity      :      7400 N
Maximum Speed      :      30000 rpm
Outside Diameter      :      32 mm
Number of Rows      :      1
Width      :      10 mm
