- FAG 6004-2Z-L038-C3
6004-2Z-L038-C3

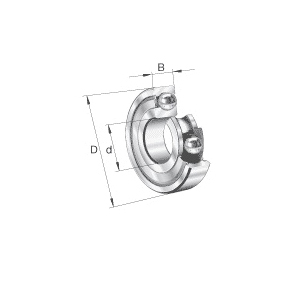

FAG 6004-2Z-L038-C3 60..-2Z Deep Groove Ball Bearing, 20 mm Dia Bore, 42 mm OD, 1 Rows, 12 mm W, 10000 N Dynamic/5000 N Static/255 N Fatigue Load
- CP#:
- Item#: 6004-2Z-L038-C3
- Mfr#: 6004-2Z-L038-C3
- UPC: 4012802008449
- Gap seal on both sides
- C3 radial internal clearance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
FAG Deep Groove Ball Bearing, Series: 60..-2Z, 20 mm Bore, 42 mm OD, 1 Rows, 12 mm Width, Double Shield Closure, 10000 N Dynamic/5000 N Static/255 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 21100 rpm Maximum, -30 to 120 deg C, Uncoated
SPECIFICATIONS
| Series | : | 60..-2Z |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 10000 N Dynamic/5000 N Static/255 N Fatigue |
| Maximum Speed | : | 21100 rpm |
| Outside Diameter | : | 42 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Metal |
| Width | : | 12 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/352/FAG_6004_2Z_L038_C3_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/472/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
