YTB1 PT SGT

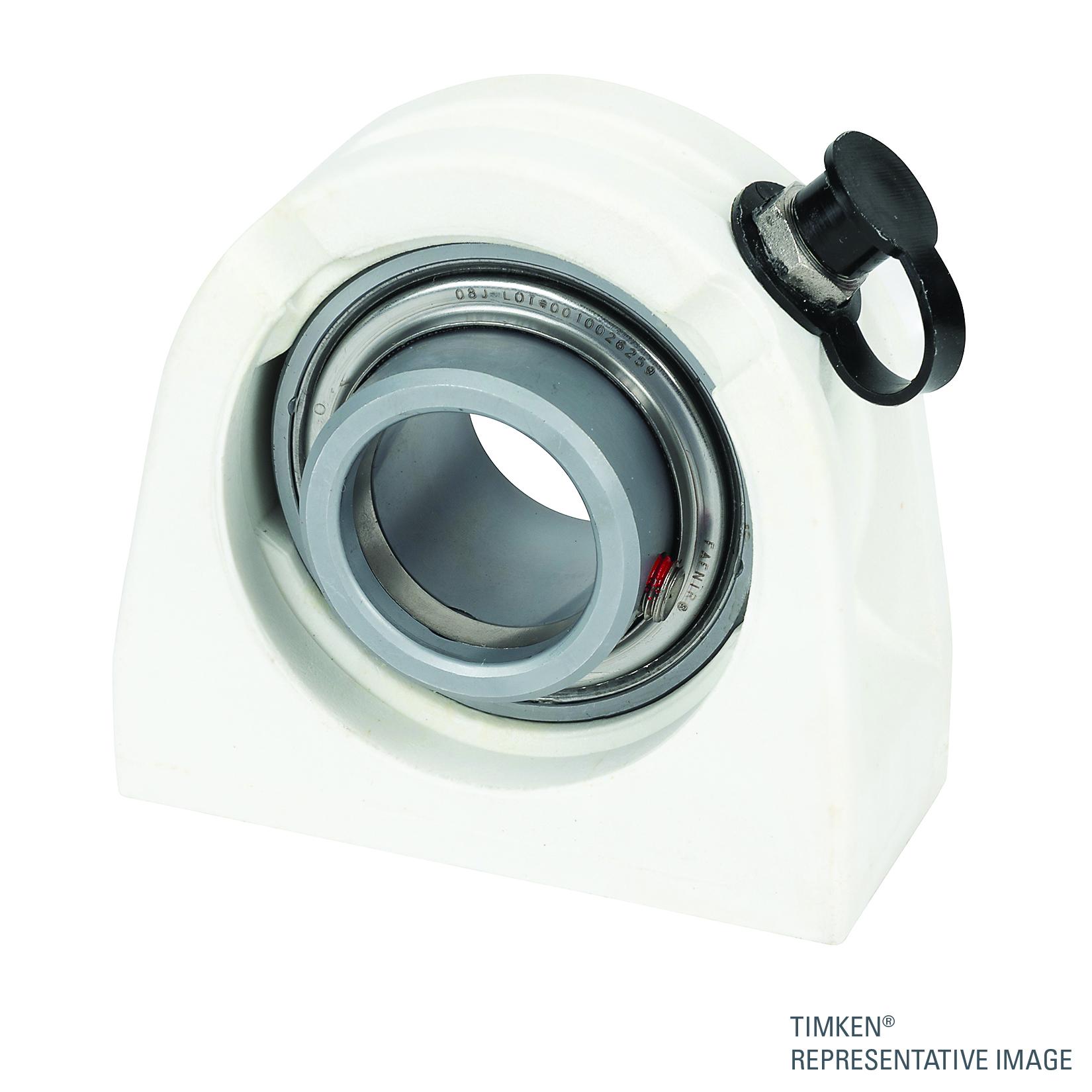

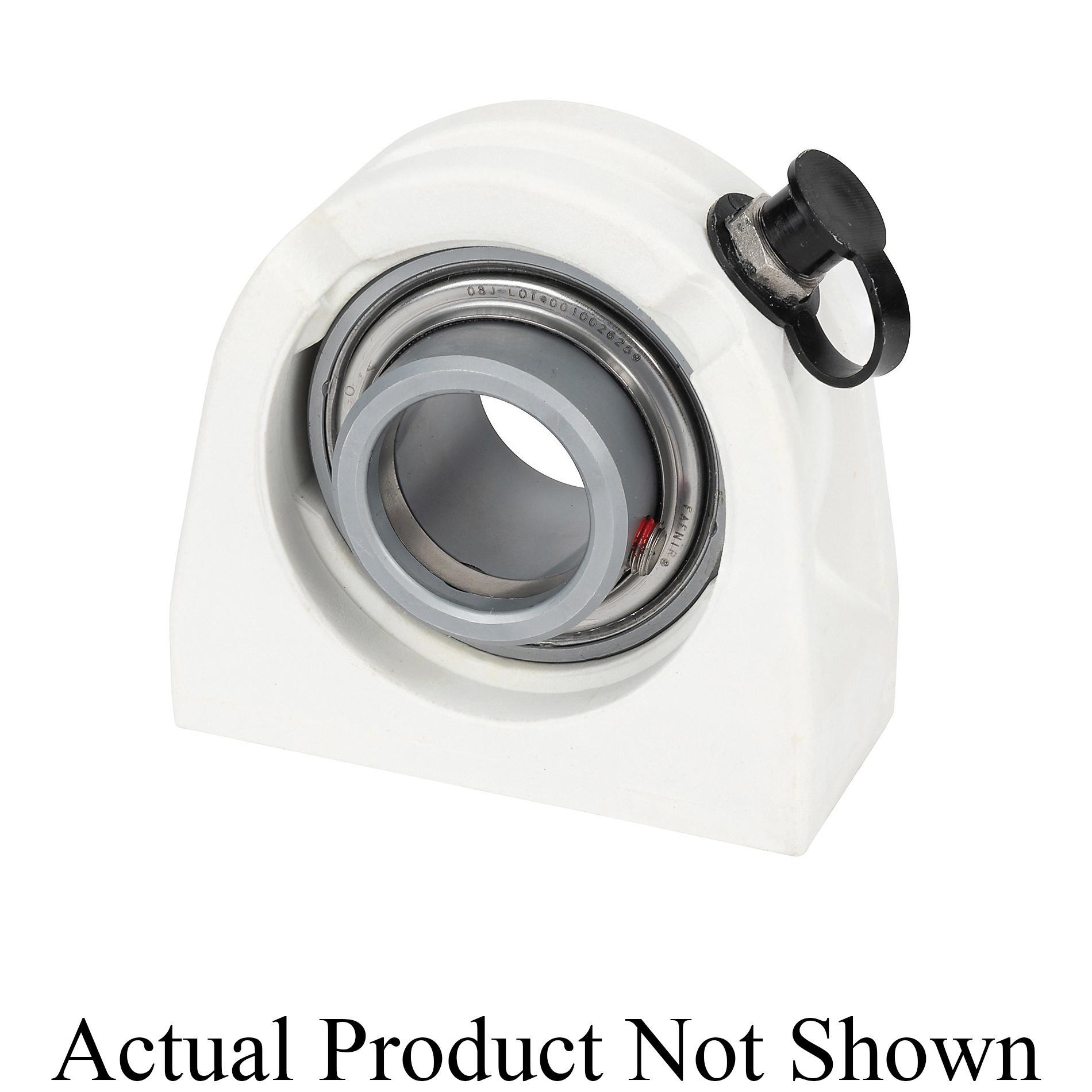

Timken® Fafnir® YTB1 PT SGT YTB Series Standard Duty Pillow Block Ball Bearing Housed Unit, 1 in Dia Bore, 2 in L Bolt Center-to-Center, 1-7/16 in Base to Bore Centerline, 3 in OAL x 2.8 in OAH
- CP#:
- Item#: YTB1 PT SGT
- Mfr#: YTB1 PT SGT
- UPC: 087796266421
- Each unit comes assembled and ready for mounting
- These are wide inner ring ball bearings, self-aligning B-type, which compensate for shaft misalignment
- The units are factory pre-lubricated, but a grease fitting is provided for relubrication if required
- The YTB tapped base is equipped with GY-RRB (R-seal) wide inner ring setscrew ball bearings
- Polymer housing with stainless steel crush bearings and stainless steel grease fitting
- Corrosion-resistant insert bearing stainless ball and nylon retainer
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken® Fafnir®, YTB1 PT SGT, Pillow Block Ball Bearing Housed Unit, Standard Duty, Series: YTB Series, 1 in Bore, 2 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 3 in Overall Length, 1.52 in Overall Width, 2.8 in Overall Height, Round Bore, Set Screw Locking Device, 3490 lb Dynamic/1760 lb Static Load, Cast Iron
SPECIFICATIONS
| Base to Bore Centerline | : | 1-7/16 in |
| Series | : | YTB Series |
| Bolt Center-to-Center Length | : | 2 in |
| Locking Device | : | Set Screw |
| Overall Length | : | 3 in |
| Load Capacity | : | 3490 lb Dynamic/1760 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 1.52 in |
| Inside Diameter | : | 1 in |
| Overall Height | : | 2.8 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf
