YCJT 7/8 SGT

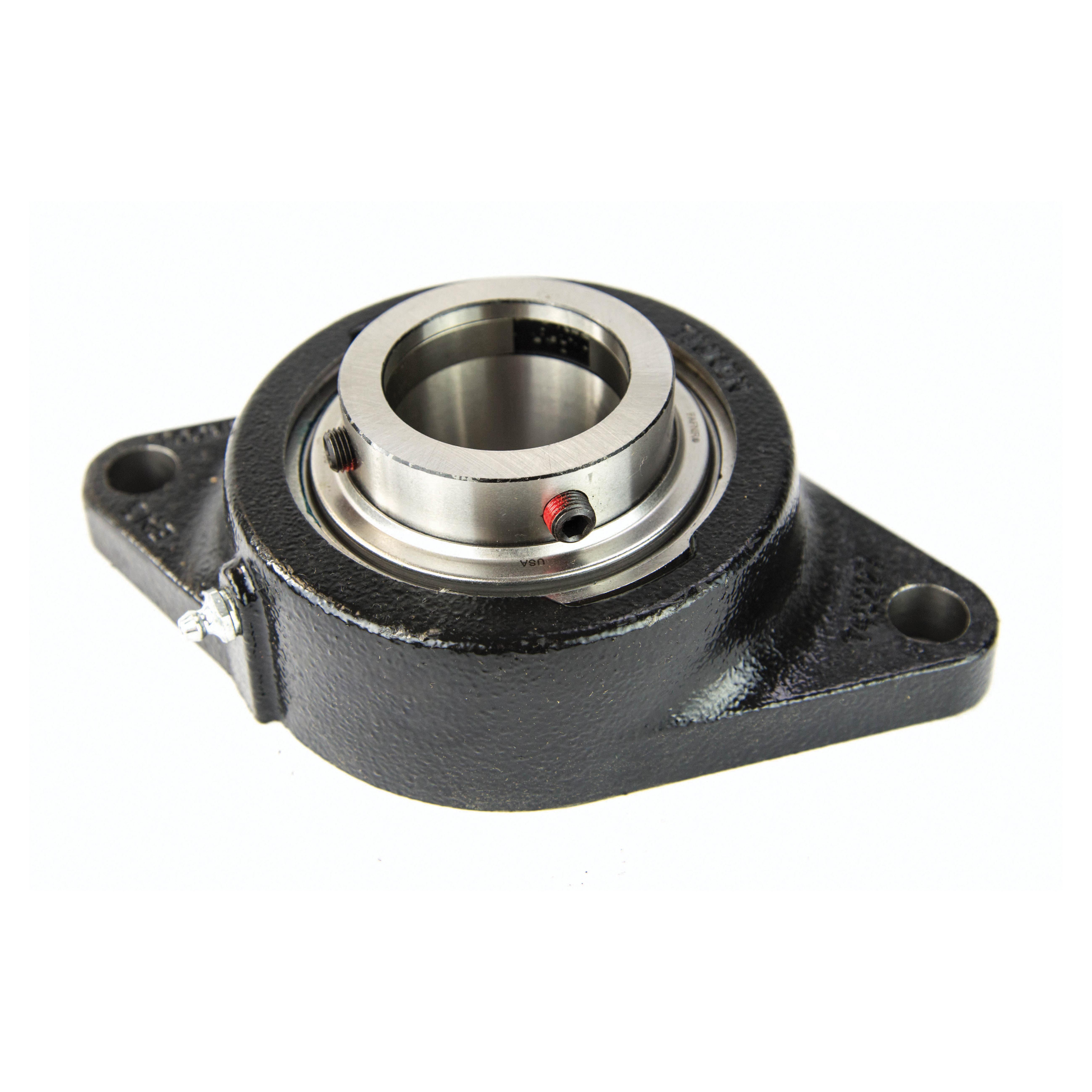

Timken® Fafnir® YCJT 7/8 SGT YCJT Industrial Series Round Bore Standard Duty Ball Bearing Housed Unit, 0.588 in Dia Bore, 5.844 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 4.88 in OAL/2.05 in OD OAL/Dia
- CP#:
- Item#: YCJT 7/8 SGT
- Mfr#: YCJT 7/8 SGT
- UPC: 087796266230
- Each unit comes assembled and ready for mounting
- These are wide inner ring ball bearings, self-aligning B-type, which compensate for shaft misalignment
- The units are factory pre-lubricated, but a grease fitting is provided for relubrication if required
- The YCJ flange cartridge is equipped with GY-RRB (R-seal) wide inner ring setscrew ball bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Designed to maximize performance, Timken® Fafnir® Ball Bearing Housed Units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken® Fafnir®, YCJT 7/8 SGT, Ball Bearing Housed Unit, Round Bore Standard Duty, Series: YCJT Industrial Series, 0.588 in Bore, 5.844 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4.88 in OAL/2.05 in OD Overall Length/Diameter, 1.546 in Overall Height, Set Screw Locking Device, Steel Bearing, 3490 lb Dynamic/1760 lb Static Load
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5.844 in |
| Series | : | YCJT Industrial Series |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 3490 lb Dynamic/1760 lb Static |
| Overall Height | : | 1.546 in |
| Inside Diameter | : | 0.588 in |
| Overall Length/Diameter | : | 4.88 in OAL/2.05 in OD |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_010_10650_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_YCJT_7_8_SGT_Specification_Sheet.pdf
