YCJT 35 SGT

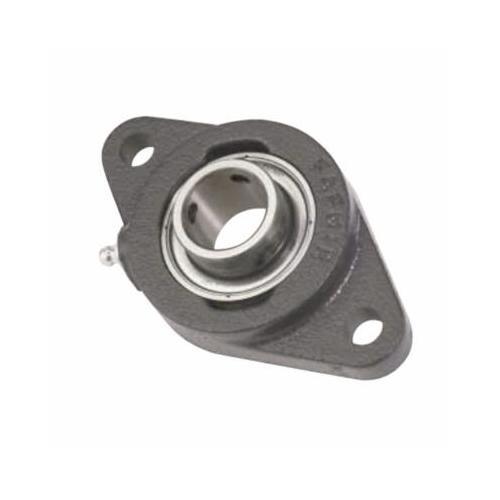

Timken® Fafnir® YCJT 35 SGT YCJT Industrial Normal Duty Flange Mount Ball Bearing Unit, 35 mm Dia Bore, 130.2 mm L Bolt Center-to-Center, 2-Bolt Flange Mount, 155.702 mm OAL/Dia
- CP#:
- Item#: YCJT 35 SGT
- Mfr#: YCJT 35 SGT
- UPC: 087796266186
- Incorporates shaft guarding technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
- This series has the same design as the YCJ series, but is mounted with two-bolts instead of four
- All units are equipped with GY-KRRB wide-inner-ring set screw bearings
- Spherical outside diameter of the bearings mounted in the corresponding machined housing seats provides the initial self-alignment
- The units are factory pre-lubricated
- A grease fitting is provided for relubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, YCJT 35 SGT, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: YCJT, 35 mm Bore, 130.2 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 155.702 mm Overall Length/Diameter, 48.95 mm Overall Depth, 46.406 mm Overall Height, Set Screw Locking Device, Steel Bearing, 6400 lb Dynamic/3440 lb Static Load, 3930 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 130.2 mm |
| Series | : | YCJT |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 6400 lb Dynamic/3440 lb Static |
| Maximum Speed | : | 3930 rpm |
| Overall Depth | : | 48.95 mm |
| Overall Height | : | 46.406 mm |
| Inside Diameter | : | 35 mm |
| Overall Length/Diameter | : | 155.702 mm |
| Measurement System | : | Metric |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_YCJT_35_SGT_Specification_Sheet.pdf
