YCJM1 7/16

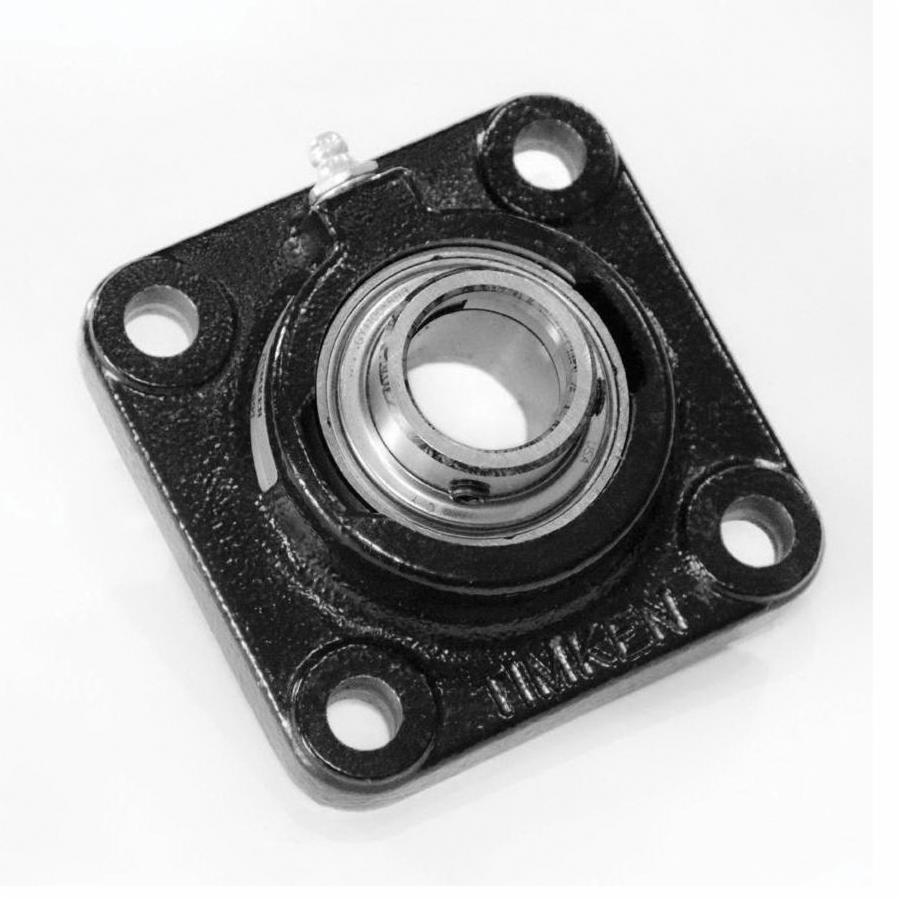

Timken® Fafnir® YCJM1 7/16 YCJM Medium Duty Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-1/8 in OAL/Dia
- CP#:
- Item#: YCJM1 7/16
- Mfr#: YCJM1 7/16
- UPC: 087796189553
- This series includes four-bolt flanged cartridges featuring GYM-KRRB bearing inserts
- The durable cast-iron housings are powder-coated and maintain an excellent finish while resisting corrosion, chemicals and weather exposure
- The industrial duty flanged cartridges incorporate premium features designed to extend bearing life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, YCJM1 7/16, Flange Mount Ball Bearing Unit, Medium Duty, Series: YCJM, 1-7/16 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 2.141 in Overall Depth, 2.141 in Overall Height, Set Screw Locking Device, Steel Bearing, 8130 lb Dynamic00000000001/4460 lb Static Load, 3500 rpm Maximum, -30 to 275 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4 in |
| Series | : | YCJM |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 8130 lb Dynamic00000000001/4460 lb Static |
| Maximum Speed | : | 3500 rpm |
| Overall Depth | : | 2.141 in |
| Overall Height | : | 2.141 in |
| Inside Diameter | : | 1-7/16 in |
| Overall Length/Diameter | : | 5-1/8 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_YCJM1_7_16_Specification_Sheet.pdf
