YCJ 40 SGT

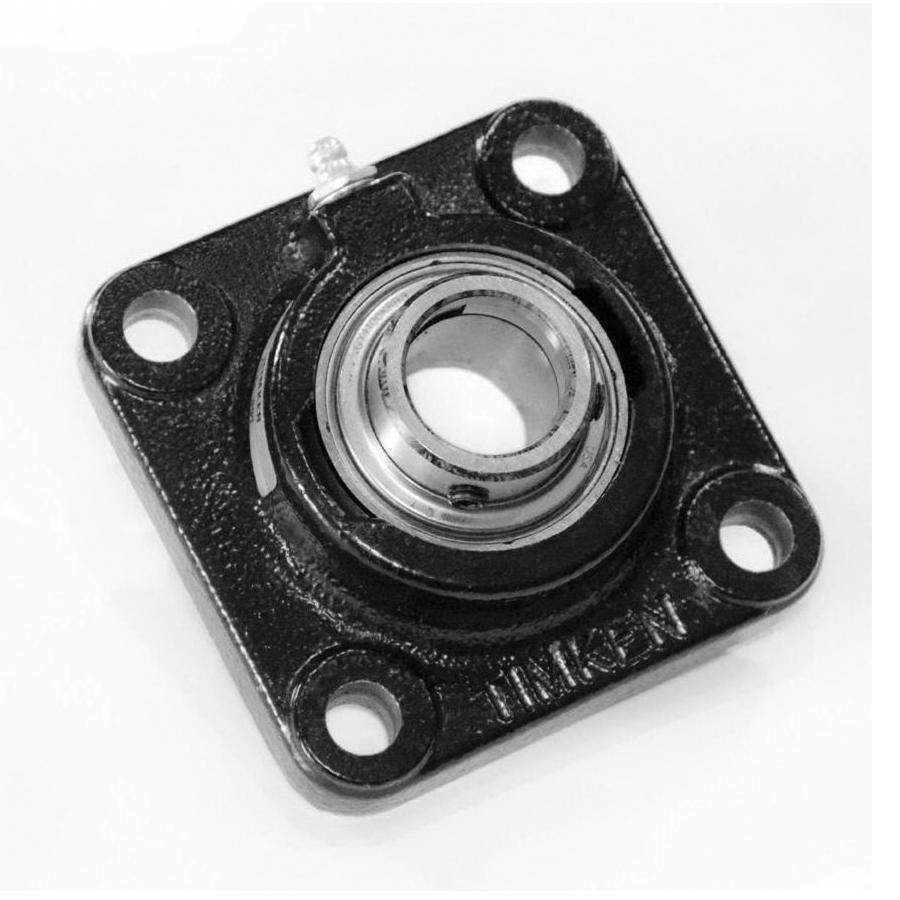

Timken® Fafnir® YCJ 40 SGT YCJ Industrial Normal Duty Flange Mount Ball Bearing Unit, 40 mm Dia Bore, 101.6 mm L Bolt Center-to-Center, 4-Bolt Flange Mount, 130.302 mm OAL/Dia
- CP#:
- Item#: YCJ 40 SGT
- Mfr#: YCJ 40 SGT
- UPC: 087796265905
- Incorporates shaft guarding technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft
- The same basic design as the RCJ series, except specially designed set screws are used as the locking device instead of an eccentric collar
- All units are equipped with GY-KRRB wide-inner-ring set screw bearings
- Spherical outside diameter of the bearings mounted in the corresponding machined housing seats provides the initial self-alignment
- Bolt-hole spacing dimensions are interchangeable with the RCJ series and most competitive units
- The units are factory pre-lubricated
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, YCJ 40 SGT, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: YCJ, 40 mm Bore, 101.6 mm Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 130.302 mm Overall Length/Diameter, 54.4 mm Overall Depth, 54.381 mm Overall Height, Set Screw Locking Device, Steel Bearing, 8130 lb Dynamic00000000001/4460 lb Static Load, 3500 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 101.6 mm |
| Series | : | YCJ |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 8130 lb Dynamic00000000001/4460 lb Static |
| Maximum Speed | : | 3500 rpm |
| Overall Depth | : | 54.4 mm |
| Overall Height | : | 54.381 mm |
| Inside Diameter | : | 40 mm |
| Overall Length/Diameter | : | 130.302 mm |
| Measurement System | : | Metric |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_YCJ_40_SGT_Specification_Sheet.pdf
