VFD1 3/16

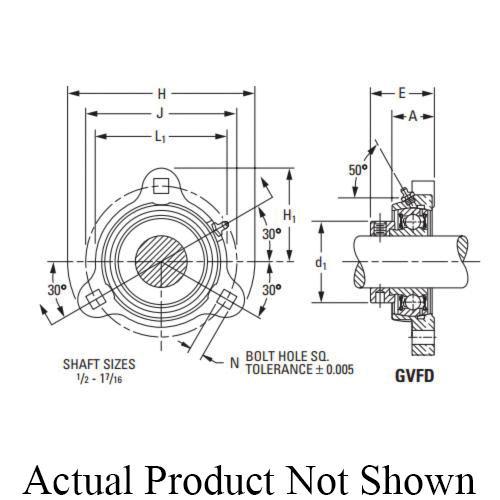

Timken® Fafnir® VFD1 3/16 VFD Normal Duty Non-Relubricatable Flange Mount Ball Bearing Unit, 1-3/16 in Dia Bore, 3-9/16 in L Bolt Center-to-Center, 3-Bolt Flange Mount, 4-7/16 in OAL/Dia
- CP#:
- Item#: VFD1 3/16
- Mfr#: VFD1 3/16
- UPC: 087796058316
- The malleable-iron flange cartridges provide self-alignment and rigid support
- The mounting bolt holes are interchangeable with pressed-steel flangette units of corresponding size
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, VFD1 3/16, Flange Mount Ball Bearing Unit, Normal Duty Non-Relubricatable, Series: VFD, 1-3/16 in Bore, 3-9/16 in Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 4-7/16 in Overall Length/Diameter, 1-17/32 in Overall Depth, 1.481 in Overall Height, Eccentric Locking Device, Steel Bearing, 4370 lb Dynamic/2530 lb Static Load, 4570 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-9/16 in |
| Series | : | VFD |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 3-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 4370 lb Dynamic/2530 lb Static |
| Maximum Speed | : | 4570 rpm |
| Overall Depth | : | 1-17/32 in |
| Overall Height | : | 1.481 in |
| Inside Diameter | : | 1-3/16 in |
| Overall Length/Diameter | : | 4-7/16 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf
