TCJ 15/16

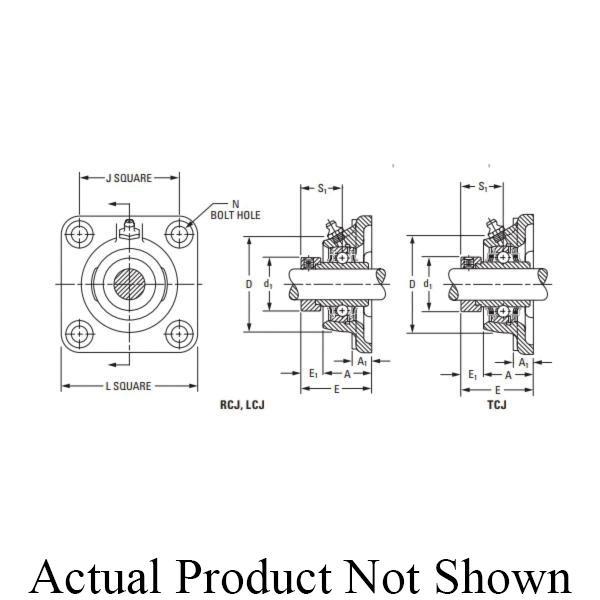

Timken® Fafnir® TCJ 15/16 TCJ Industrial Normal Duty Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 2-3/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 3-3/4 in OAL/Dia
- CP#:
- Item#: TCJ 15/16
- Mfr#: TCJ 15/16
- UPC: 087796057074
- Timken® cartridges are used in applications where a minimum amount of machining is to be done
- Each unit comes assembled and ready for mounting, with bolts through the flange
- These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
- The TCJ is equipped with G-KPPB (tri-ply seal) wide-inner-ring ball bearings
- The TCJ flange cartridges are identical to RCJ units, except they use the tri-ply seal bearing
- Tri-ply units offer the best protection in dirty environments
- The units are factory pre-lubricated
- The units are supplied with self-locking collars
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, TCJ 15/16, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: TCJ, 1-1/2 in Bore, 2-3/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1.834 in Overall Depth, 1.834 in Overall Height, Eccentric Locking Device, Steel Bearing, 3490 lb Dynamic/1760 lb Static Load, 500 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 2-3/4 in |
| Series | : | TCJ |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 3490 lb Dynamic/1760 lb Static |
| Maximum Speed | : | 500 rpm |
| Overall Depth | : | 1.834 in |
| Overall Height | : | 1.834 in |
| Inside Diameter | : | 1-1/2 in |
| Overall Length/Diameter | : | 3-3/4 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf
