SMN108K

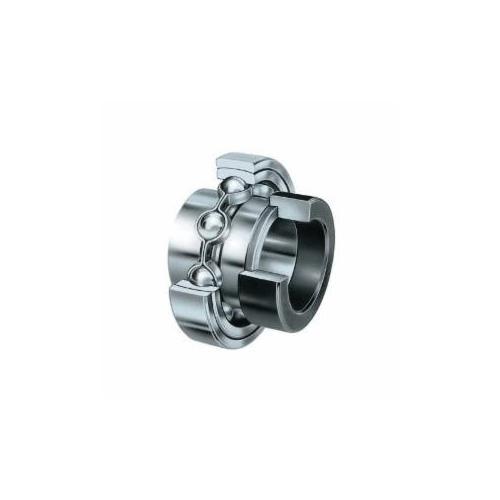

Timken® Fafnir® SMN108K SMN Heavy Duty Type A Ball Insert Bearing Housed Unit, 1-1/2 in Dia Bore, 3.5433 in Dia Outside, 1 Rows, 2.247 in W, 11100 lb Dynamic/5850 lb Static Load
- CP#:
- Item#: SMN108K
- Mfr#: SMN108K
- UPC: 087796100817
- SMN series type A have the same ring tolerances and corner radii as equivalent 300 series single-row radial ball bearings
- Type A has cylindrical outside diameters
- The bearings are not pre-lubricated
- Eccentric wide-inner-ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. When set screws are used, Timken® suggests using shaftguarding Technology™, a stainless-steel, hardened band that is inserted in a groove on the inner ring. When the set screws are tightened, they press against the band, tightening the grip on the shaft. Unlike traditional set screws, which can dig into the shaft, there are no nicks, raised metal or permanent shaft damage. The stainless band resists the formation of corrosion on the shaft.
Timken® Fafnir®, SMN108K, Ball Insert Bearing Housed Unit, Heavy Duty Type A, Series: SMN, 1-1/2 in Bore, 3.5433 in OD, 1 Rows, 2.247 in Width, Open Closure, 11100 lb Dynamic/5850 lb Static Load, Steel Bearing, 7550 rpm Maximum, Uncoated
SPECIFICATIONS
| Series | : | SMN |
| Bearing Material | : | Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 11100 lb Dynamic/5850 lb Static |
| Maximum Speed | : | 7550 rpm |
| Outside Diameter | : | 3.5433 in |
| Number of Rows | : | 1 |
| Inside Diameter | : | 1-1/2 in |
| Measurement System | : | Imperial |
| Width | : | 2.247 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_1012KRRB_Catalog.pdf
