SCJT1 1/4S

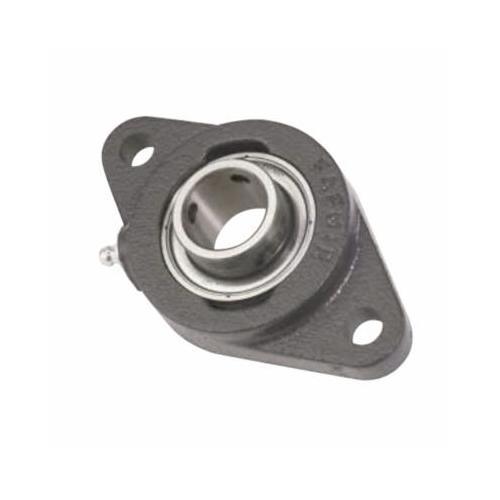

Timken® Fafnir® SCJT1 1/4S SCJT Normal Duty Standard Flange Mount Ball Bearing Unit, 1-1/8 in Dia Bore, 4-19/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 6.12 in OAL/Dia
- CP#:
- Item#: SCJT1 1/4S
- Mfr#: SCJT1 1/4S
- UPC: 087796058651
- This series has the same construction and design as SCJ type, but is mounted with two-bolts instead of four
- This series is assembled with GYA-RRB bearings with positive-contact, land-riding seals and set screw locking
- The units are factory pre-lubricated
- A grease fitting is provided for relubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, SCJT1 1/4S, Flange Mount Ball Bearing Unit, Normal Duty Standard, Series: SCJT, 1-1/8 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 6.12 in Overall Length/Diameter, 1-11/32 in Overall Depth, 1.342 in Overall Height, Set Screw Locking Device, Steel Bearing, 4850 lb Dynamic/2530 lb Static Load, 4570 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4-19/32 in |
| Series | : | SCJT |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 4850 lb Dynamic/2530 lb Static |
| Maximum Speed | : | 4570 rpm |
| Overall Depth | : | 1-11/32 in |
| Overall Height | : | 1.342 in |
| Inside Diameter | : | 1-1/8 in |
| Overall Length/Diameter | : | 6.12 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_SCJT1_1_4S_Specification_Sheet.pdf
