SCJ1 15/16

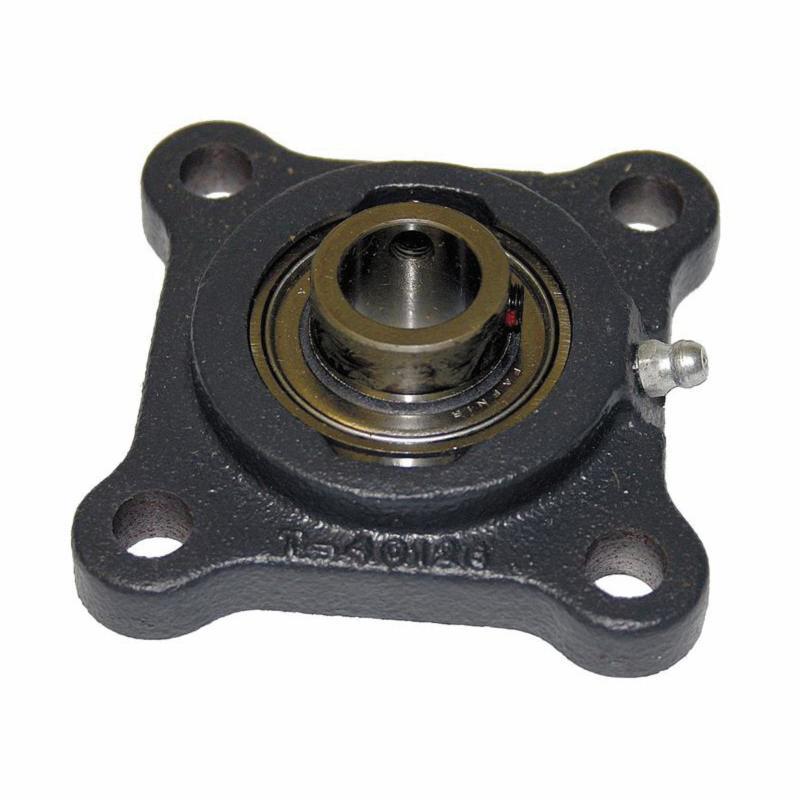

Timken® Fafnir® SCJ1 15/16 SCJ Normal Duty Standard Flange Mount Ball Bearing Unit, 1-15/16 in Dia Bore, 4-3/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-5/8 in OAL/Dia
- CP#:
- Item#: SCJ1 15/16
- Mfr#: SCJ1 15/16
- UPC: 087796060791
- The flange cartridges come assembled and ready for mounting by using four bolts through the flange
- The units are ideal for applications where minimum shaft length is required
- The units are assembled with GYA-RRB bearings with positive-contact, land-riding seals and set screw locking
- The units are factory pre-lubricated
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, SCJ1 15/16, Flange Mount Ball Bearing Unit, Normal Duty Standard, Series: SCJ, 1-15/16 in Bore, 4-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 1-13/16 in Overall Depth, 1.831 in Overall Height, Set Screw Locking Device, Steel Bearing, 8740 lb Dynamic/5210 lb Static Load, 3000 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4-3/8 in |
| Series | : | SCJ |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 8740 lb Dynamic/5210 lb Static |
| Maximum Speed | : | 3000 rpm |
| Overall Depth | : | 1-13/16 in |
| Overall Height | : | 1.831 in |
| Inside Diameter | : | 1-15/16 in |
| Overall Length/Diameter | : | 5-5/8 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_SCJ1_15_16_Specification_Sheet.pdf
