RFC2

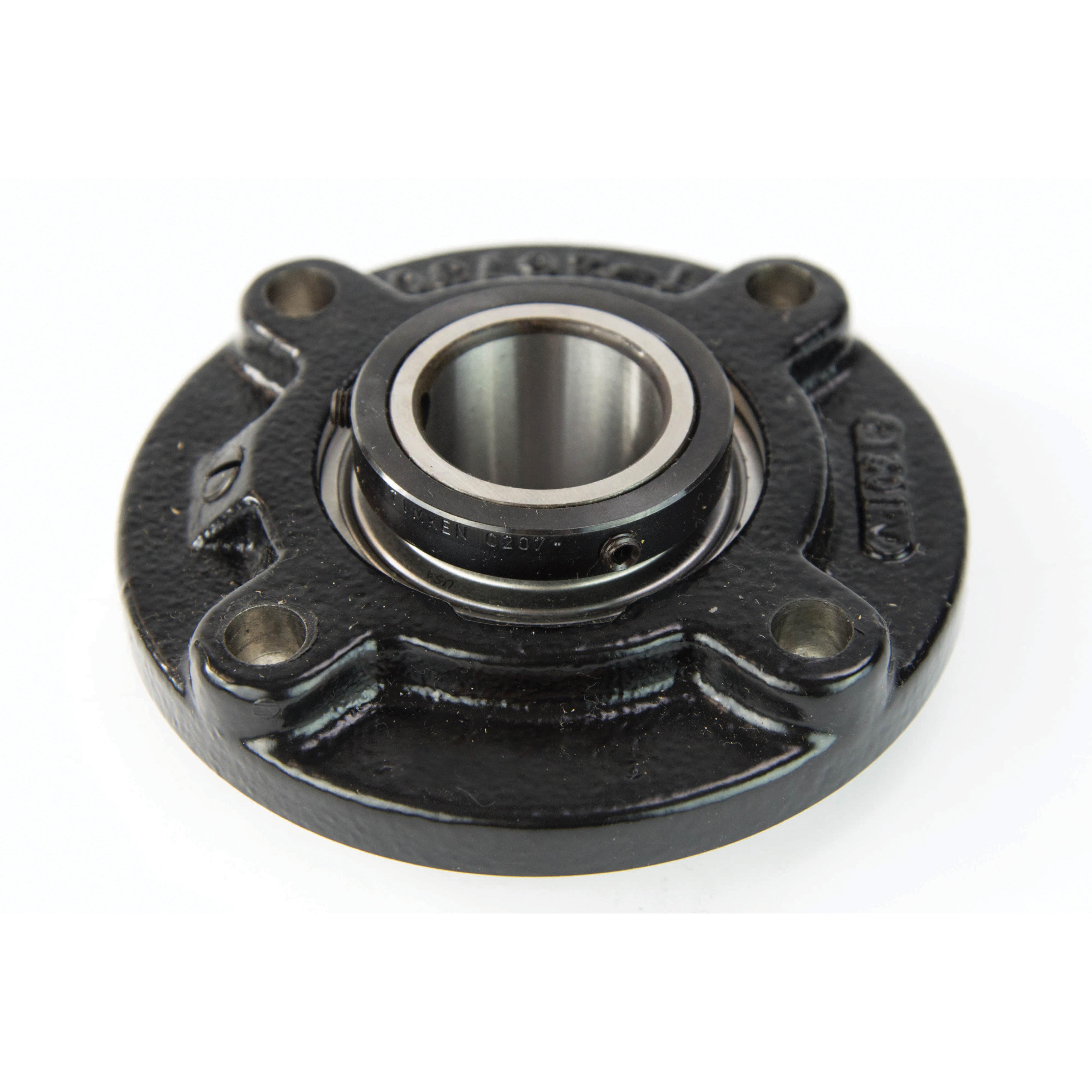

Timken® Fafnir® RFC2 RFC Industrial Normal Duty Piloted Flange Mount Ball Bearing Unit, 2 in Dia Bore, 6 in L Bolt Center-to-Center, 4-Bolt Piloted Flange Mount, 7-1/8 in OAL/Dia
- CP#:
- Item#: RFC2
- Mfr#: RFC2
- UPC: 087796060999
- The piloted flange cartridges ensure accurate mounting fits and provide better support for heavy loads
- The cast-iron units are suited for applications such as material handling, industrial conveyor equipment and farm and construction equipment
- This series is assembled with R-seal (GC-KRRB) bearings with a concentric-locking collar
- The units are factory pre-lubricated
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, RFC2, Flange Mount Ball Bearing Unit, Industrial Normal Duty Piloted, Series: RFC, 2 in Bore, 6 in Bolt Center-to-Center Length, 4-Bolt Piloted Flange Mounting, 7-1/8 in Overall Length/Diameter, 2-13/32 in Overall Depth, 1.406 in Overall Height, Concentric Locking Device, Steel Bearing, 10800 lb Dynamic/6570 lb Static Load, 2710 rpm Maximum, -30 to 275 deg F, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6 in |
| Series | : | RFC |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Locking Device | : | Concentric |
| Load Capacity | : | 10800 lb Dynamic/6570 lb Static |
| Maximum Speed | : | 2710 rpm |
| Overall Depth | : | 2-13/32 in |
| Overall Height | : | 1.406 in |
| Inside Diameter | : | 2 in |
| Overall Length/Diameter | : | 7-1/8 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf
