RAT1

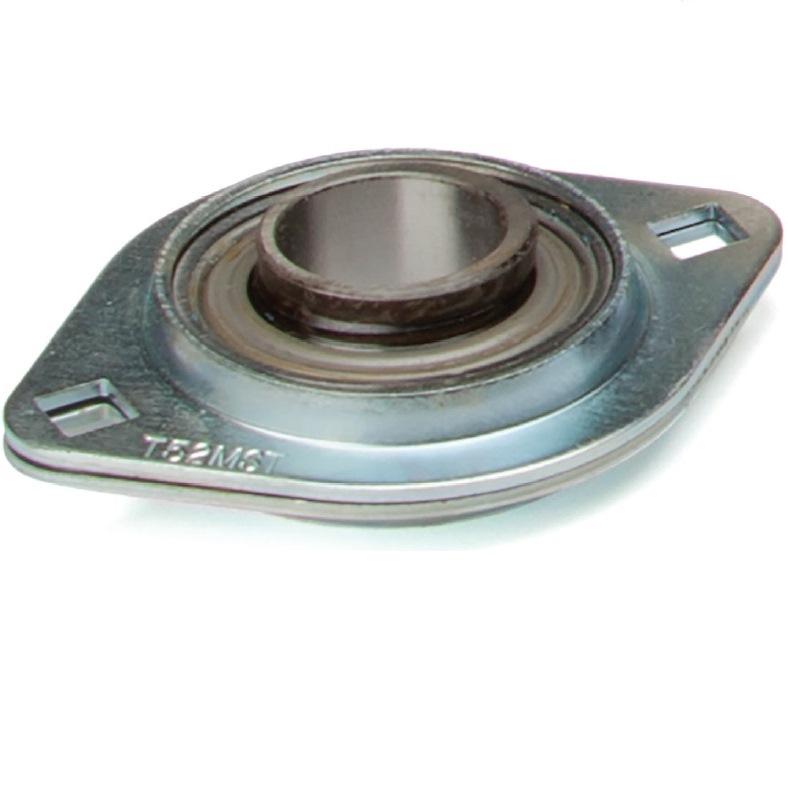

Timken® Fafnir® RAT1 RAT Light Duty Flange Mount Ball Bearing Unit, 1.001 in Dia Bore, 3 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/4 in OAL/Dia
- CP#:
- Item#: RAT1
- Mfr#: RAT1
- UPC: 087796118324
- These units are designed for installations where the standard three-bolt flangettes cannot be used due to space limitations
- All units are non-relubricatable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, RAT1, Flange Mount Ball Bearing Unit, Light Duty, Series: RAT, 1.001 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 2-51/64 in Overall Height, Eccentric Locking Device, Steel Bearing, 3150 lb Dynamic/1760 lb Static Load, -30 to 275 deg F
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3 in |
| Series | : | RAT |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Eccentric |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Overall Height | : | 2-51/64 in |
| Inside Diameter | : | 1.001 in |
| Overall Length/Diameter | : | 3-3/4 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_RCJO2_7_16_Catalog.pdf
